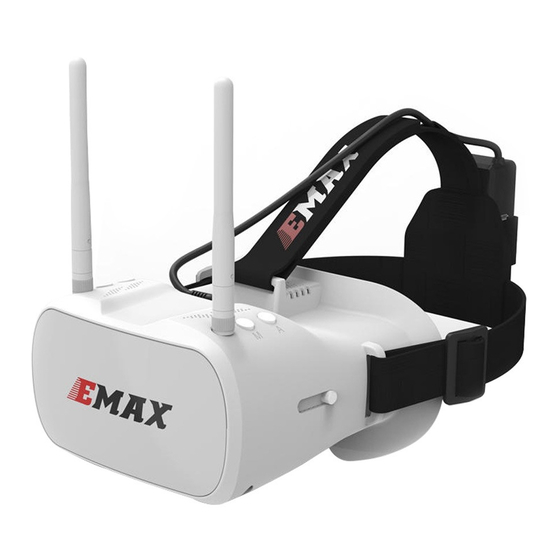

Emax Transporter Quick Start Manual

Goggles

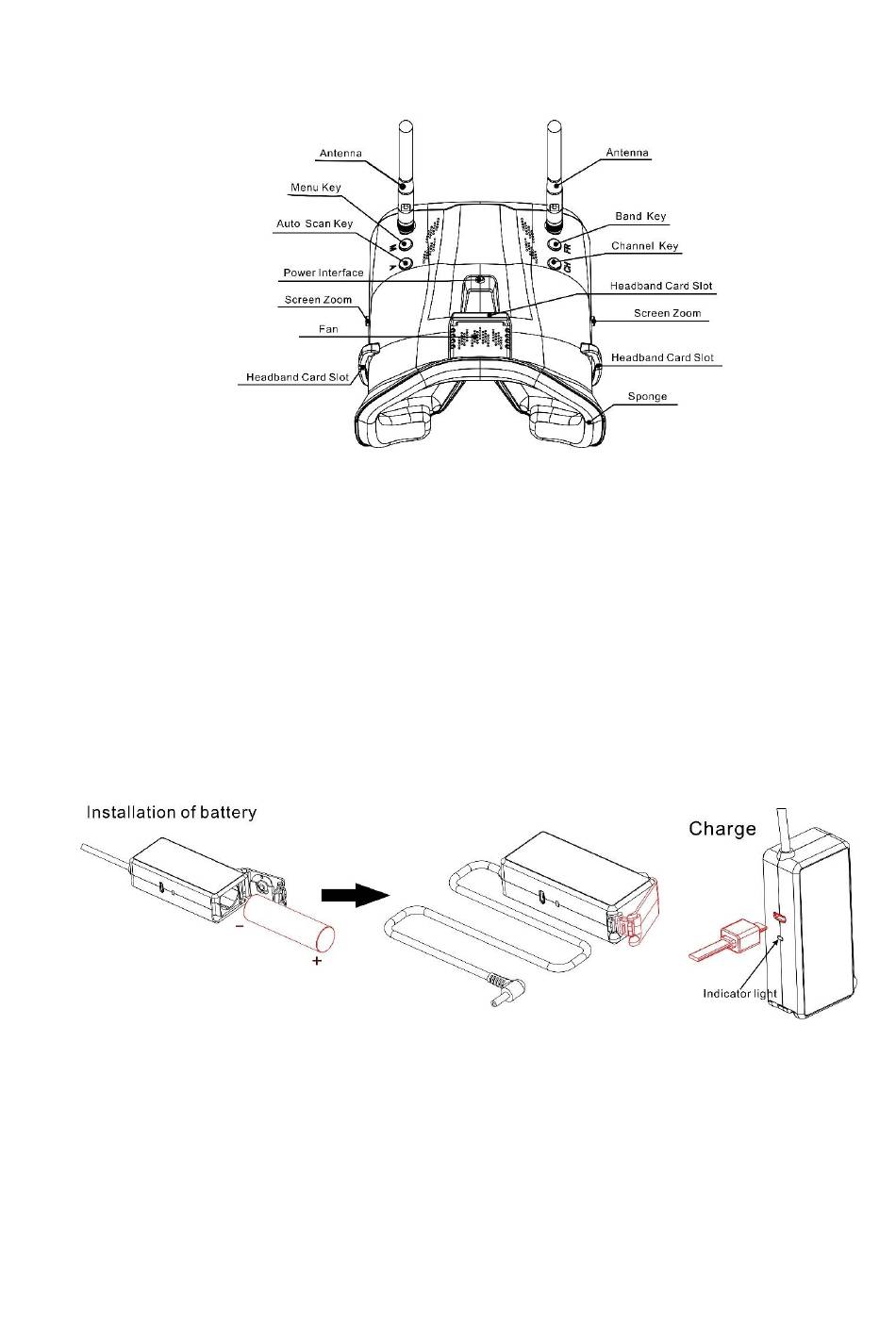

Battery and Charging

The battery cartridge comes preinstalled with a 18650 battery. If a battery reinstall is
required please use caution making sure to install with the correct polarity. The
battery can be charged in the cartridge with a micro USB cable. When the battery is
emax-usa.com
charging the indicator light is green. The indicator light will turn red when charging is
complete.

Assembly

Minimal assembly is required for proper operation of the goggles. Follow the steps
below.
1. Attach the two supplied antennas by screwing them on to the SMA
connection point.
2. Place the battery cartridge in the sleeve on the backside of the head strap.
3. Feed the power lead through the loop on the top side of the head strap and
plug in the power lead to the port on the goggles. This will power the goggles.
4. Please remove antennas and power lead when traveling/storing the goggles.
