Summary of Contents for AerobTec Telemetry Converter

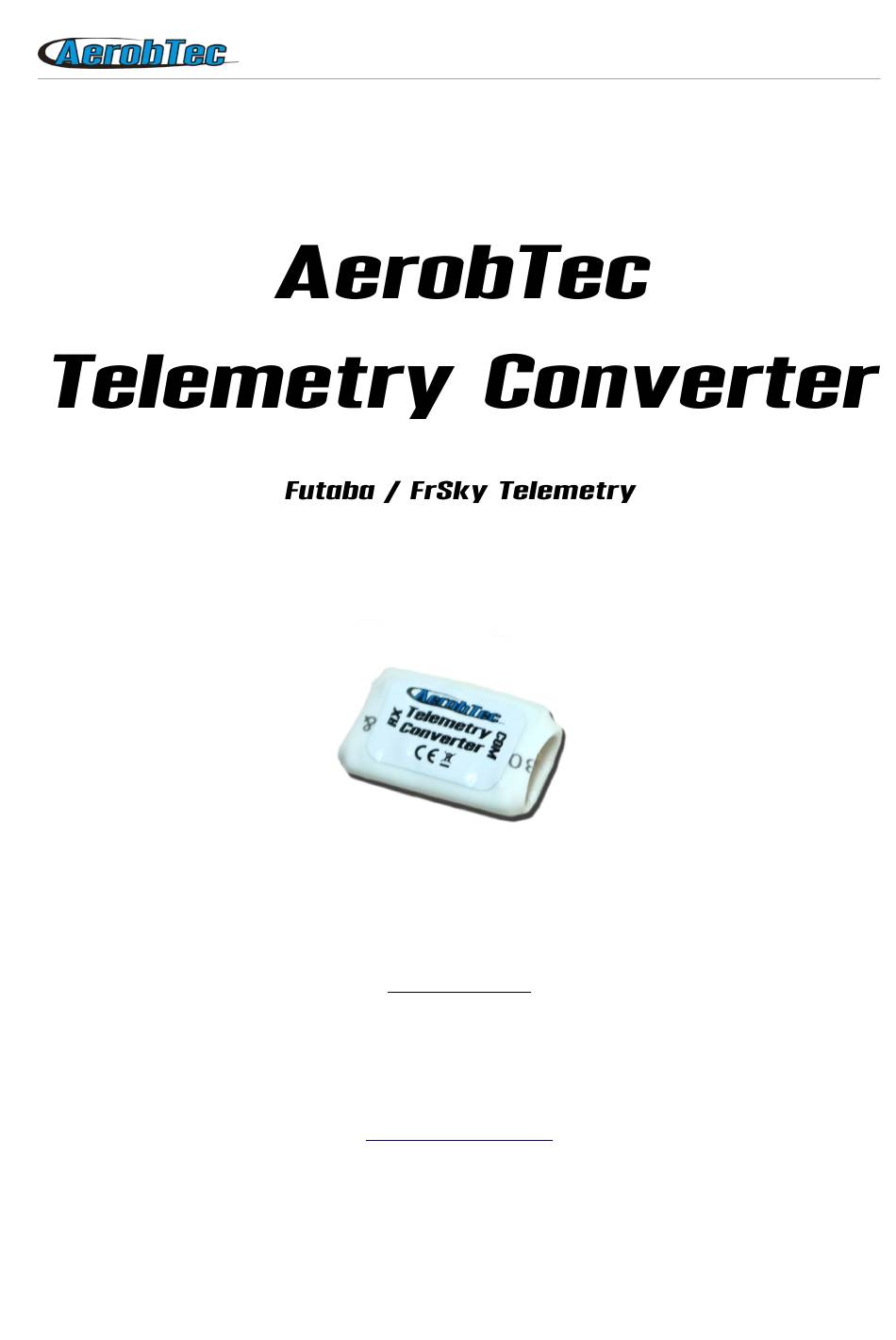

- Page 1 Manufacturer: AerobTec, s.r.o. Ilkovičova 3 841 04 Bratislava www.aerobtec.com info@aerobtec.com AerobTec Telemetry Converter User Manual...
- Page 2 1.Specifications........................3 2.Introduction........................3 3.Hardware description.......................3 Connectors of the Telemetry Converter.................3 The power supply of the Telemetry Converter...............4 4.The Telemetry Converter and the Altis Device..............4 5.The Telemetry Converter and FrSky ................4 The receiver........................4 The transmitter.......................5 6.The Telemetry Converter and Futaba................6 The receiver........................6 The transmitter.......................7...
- Page 3 Telemetry support for Futaba® S.Bus2 System, FrSky® Smart-Port(S.Port) The AerobTec Telemetry Converter is an extension of Altis Devices: Altis v4, Altis v4+, Altis Micro, Altis GPS. It enriches Altis Devices by new telemetric protocols of Futaba and FrSky. The AerobTec Telemetry Converter selects only the essential from the wide range of information obtained during the flight of the aircraft.
- Page 4 First of all, it is necessary to find the appropriate connector on the receiver (the one with a Smart-Port marking). In order to connect the Telemetry Converter with the receiver, a JR / Molex cable must be used. AerobTec Telemetry Converter User Manual...
- Page 5 Fig. 3: The connection of the Telemetry Converter with FrSky The telemetric information from the Altis Device are transformed via the Telemetry Converter and are displayed on the FrSky transmitter. In order to set the telemetric parameters, it is necessary to follow the user manual which can be downloaded here: http://www.frsky-rc.com...
- Page 6 First of all, it is necessary to find the appropriate connector on the receiver (the one with a S.BUS2 marking). In order to connect the Telemetry Converter with the receiver, a JR / Molex cable must be used. Fig. 4: Connection Telemetry Converter with Futaba receiver Fig.
- Page 7 *These parameters are relative, therefore their reference point must be set by restarting the transmitter or by reseting the telemetry on the transmitter. Do not touch the Telemetry Converter device to a metal surface, as this might lead to shorting of the power supply and RC system may fail.
- Page 8 This manual is based on Altis Flight Manager version 4.0.0 Note – Telemetry Converter was developed using Atollic TrueSTUDIO® Rev. 1.0. (March 2015) Initial release • AerobTec Telemetry Converter User Manual...
