Summary of Contents for BEP Marine CZone Contact 6 PLUS

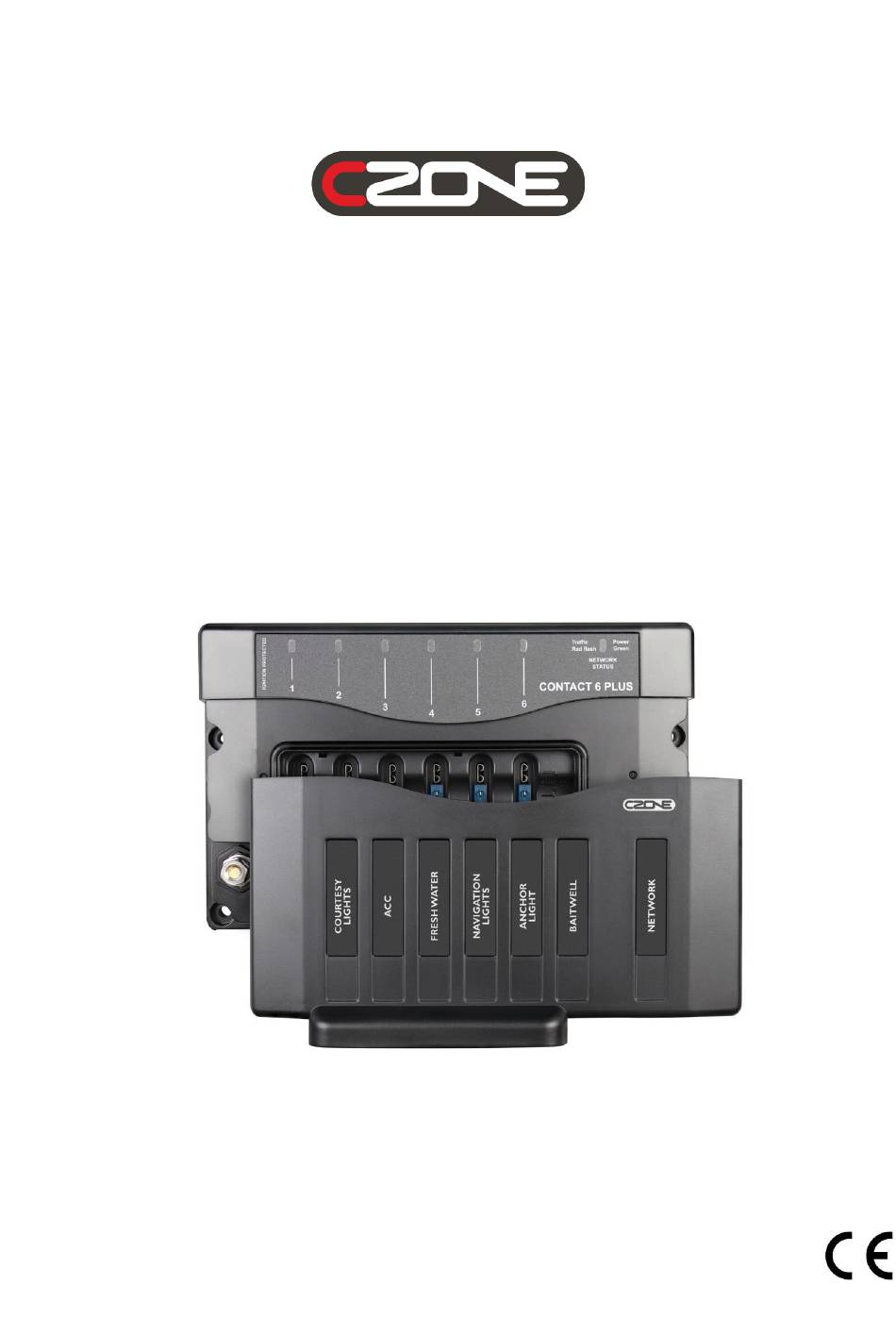

- Page 1 Contact 6 PLUS User & Installation Manual V1.0...
- Page 2 Electronic re-distribution of the document in any format is restricted, to maintain quality and version control. Important BEP Marine strives to ensure all information is correct at the time of printing. However, the company reserves the right to change without notice any features and specifications of either its products or associated documentation.
-
Page 3: Table Of Contents
EN / CZone® Contact 6 PLUS User & Installation Manual TABLE OF CONTENTS OVERVIEW Description Parts Included Features Hardware Overview DESIGN INSTALLATION Things You Need Environment Mounting Connections Inserting Fuses Mechanical Bypass Network Configuration Fit the Cover Initial Power Up System Diagram Examples ORDERING INFORMATION SPECIFICATIONS... -
Page 4: Overview
EN / CZone® Contact 6 PLUS User & Installation Manual 1 OVERVIEW DESCRIPTION The Contact 6 PLUS is a 6-channel output module utilizing CZone’s proven solid state switching technology. Designed to be installed with a NMEA2000 Network or as a standalone system with a CZone Smart Harness and Waterproof Keypad. -
Page 5: Hardware Overview
EN / CZone® Contact 6 PLUS User & Installation Manual HARDWARE OVERVIEW Channel Status LED Indicators Network Status LED Indicator Mounting Holes Power Supply M6 Stud Output Connector ATC Fuse Sockets Dipswitch Network / NMEA2000 Micro C Connector Cable Gland... - Page 6 EN / CZone® Contact 6 PLUS User & Installation Manual Channel Status LED Indicators Colour Description Extinguished Channel Off Green Solid On Channel On 1 Green Flash Module Not Configured 2 Green Flash Configuration Conflict 3 Green Flash DIP Switch Conflict 4 Green Flash Memory Failure 5 Green Flash...
-
Page 7: Design
EN / CZone® Contact 6 PLUS User & Installation Manual 2 DESIGN • Make a list of all outputs to be wired to the Contact 6 PLUS and assign each of them to one of the 6 channels. • Ensure all cables are appropriately rated for each assigned load. •... -
Page 8: Mounting
EN / CZone® Contact 6 PLUS User & Installation Manual MOUNTING 1. Mount the Contact 6 PLUS on a vertical surface with the cables exiting downwards. 2. Allow enough space below cable grommet for wiring bend radius. Note - Cable radius determined by wiring manufacturer. 3. -
Page 9: Connections
EN / CZone® Contact 6 PLUS User & Installation Manual CONNECTIONS The Contact 6 PLUS has a convenient output connector that requires no crimping tools and accepts cables from 24AWG to 8AWG (0.5 - 6mm). The unit has no power key and will turn on when power is applied to the network. The module will continue to draw power even when it is not in operation. -
Page 10: Inserting Fuses
EN / CZone® Contact 6 PLUS User & Installation Manual INSERTING FUSES The Contact 6 PLUS provides ignition protected circuit protection for each individual channel via standard ATC fuses (not supplied). Appropriately rated fuses should be selected and installed for each channel to protect the load and the wiring for each circuit. -
Page 11: Network Configuration
EN / CZone® Contact 6 PLUS User & Installation Manual NETWORK CONFIGURATION CZone modules communicate with each other over a NMEA2000 CAN BUS network. Each module needs a unique address, this is achieved by carefully setting the dipswitch on each module with a small screwdriver. The dipswitch on each module must match the setting in the CZone configuration. -
Page 12: Fit The Cover
EN / CZone® Contact 6 PLUS User & Installation Manual FIT THE COVER Cover Installed 1. Slide the cable gland up the output wires ensuring it is correctly seated. 2. Firmly push the top cover on to the Contact 6 PLUS until you hear it click into pace on each side. 3. -
Page 13: System Diagram Examples
EN / CZone® Contact 6 PLUS User & Installation Manual SYSTEM DIAGRAM EXAMPLES Basic System Diagram Basic System Diagram with Extra Display... -
Page 14: Ordering Information
Part Numbers and Accessories Part Number Description 80-911-0160-00 CZONE CONTACT 6 PLUS INTERFACE 80-911-0179-00 CZONE CONTACT 6 PLUS CONNECTOR & SEAL KIT 80-911-0171-00 CZONE 2 MODULE SMART HARNESS 80-911-0172-00 CZONE 3 MODULE SMART HARNESS 80-911-0162-00 CZONE WATER PROOF KEYPAD (LANDSCAPE) -
Page 15: Specifications
EN / CZone® Contact 6 PLUS User & Installation Manual 5 SPECIFICATIONS TECHNICAL SPECIFICATIONS Circuit protection ATC Fuse with Blown Fuse Alarms NMEA2000 connectivity 1 x CAN Micro-C port Output wire range 0.5 - 6mm (24AWG – 8AWG) Output channels 6 x 15A 12/24V Maximum current 60A Total Module Current... -
Page 16: Dimensions
EN / CZone® Contact 6 PLUS User & Installation Manual DIMENSIONS... -
Page 17: Compliance
EN / CZone® Contact 6 PLUS User & Installation Manual 6 COMPLIANCE... - Page 18 EN / CZone® Contact 6 PLUS User & Installation Manual...
