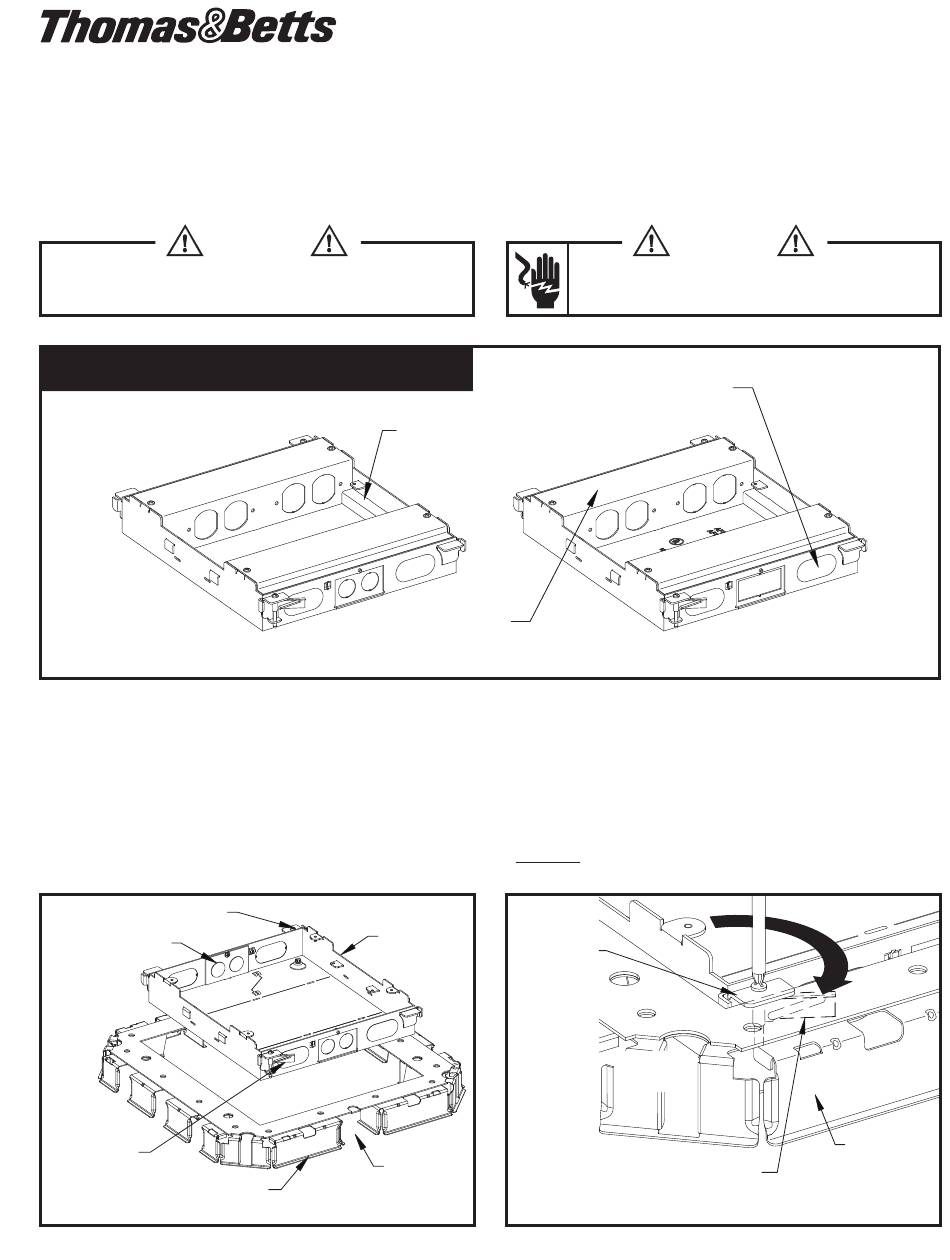

AFM-FAS SERIES ACCESS FLOOR MODULE
CAUTION
Read all Instructions before installing
the AFM Floor Box.
AFM-FAS Series Access Floor Modules
AFM-FAS-B
(4) 1/2 K.O.'s
AFM-FAS Series Floor Boxes are to be used with AFM-FAS-C-BLK (black) or AFM-FAS-C-GRY (gray) Covers
INSTALLATION INSTRUCTIONS:
(Floor Box)
STEP 1
Orient AFM-FAS Series Floor Box so that the knock out (K.O.)
plates are aligned with the Conduit Space of the Raised Floor
Panel. The Retainer Clips must be flush against the side of the
floor box prior to placing the box into the floor. This is to ensure
the floor box is centered inside the raised floor panel (see Fig. A).
Retainer Clip
K.O. Plate
Retainer
Clip
Raised Floor
(Not Included)
FIG. A
Installation Instructions
Cat. Nos. AFM-FAS-B and AFM-FAS-B-CII
Wire Tunnel
(Sold Separately)
Device Panels
(Sold Separately)
Floor Box
Conduit
Space
WARNING
RISK OF SHOCK, DISCONNECT POWER
BEFORE INSTALLATION.
(4) 2" x 1" Knock Outs
(K.O.'s) for Data Cables
STEP 2
All four Mounting Tabs must be flat against the top surface of
Raised Floor Panel. Locate both Retainer Clips (see Fig. B). Once
the floor box is in place, use a screwdriver to secure Retainer
Clips by tightening the Screw located on top of the Mounting Tab
clockwise to secure the Retaining Clip (see Fig.B). The Floor Box
should not be able to move once secured properly.
Mounting
Tab
Retainer Clip & Screw
FIG. B
AFM-FAS-B-CII
(2) Panels for 10-Pin
Modular Connector
Raised
Floor Panel
TA04494 C
Page 1 of 4
Advertisement
Table of Contents
Summary of Contents for Thomas&Betts AFM-FAS Series
- Page 1 Device Panels (4) 1/2 K.O.’s (Sold Separately) (2) Panels for 10-Pin Modular Connector AFM-FAS Series Floor Boxes are to be used with AFM-FAS-C-BLK (black) or AFM-FAS-C-GRY (gray) Covers INSTALLATION INSTRUCTIONS: (Floor Box) STEP 2 STEP 1 All four Mounting Tabs must be flat against the top surface of Raised Floor Panel.
- Page 2 ACTIVATION: 1/2 K.O. Plate (Floor Box) STEP 3 Remove the 1/2 K.O. Plate (Figure C) or 10-Pin Modular Connector Plate (Figure C.1) from inside of Floor Box by FIG. C.1 removing screw and lifting Plate out of slot. AFM-FAS-B Remove the knock-out(s) as required from the 1/2 K.O. Plate (see Figure C).
- Page 3 FIG. E.1 FIG. F.1 Voltage Divider (Sold Separately) Device Panel Open K.O. for Mark Location for low-voltage Voltage Divider cable Knock Out for Wire Tunnel Wire for Power Wire Tunnel (Sold Separately) FLOOR FLOOR Low-Voltage Cable to right side of Wire Power to left Electrical Wires Tunnel...
- Page 4 Create opening in finished floor, 10-1/2” x 11-3/4”. For wood or tile floors, notch out around the four mounting tabs to allow easy removal of the Floor Box. Install AFM-FAS Series Cover (sold separately). See Figure H. NOTES: WARRANTY: Thomas & Betts sells this product with the understanding that the user will perform all necessary tests to determine the suitability of this product for the user’s intended application.
