Gude Expert Opto Bridge 0404 Manual

1. Software installation under Windows*

Connect Expert Opto Bridge 0404 to the USB port of your
PC. Now the enclosed FTDI driver can be installed. Insert the
CD ROM Drivers, Tools & Manuals into the CD drive of the PC
or download the latest driver version from:
www.gude.info/nc/support/downloads
Follow the screen dialogue of the installation program. A
detailed installation guide can be found at
www.gude.info/wiki

2. Operations under Windows*

After successfull installation of the software, the RS232
interface will be displayed as virtual COM port. Now the
appliance can be connected to the serial interface of Expert
Opto Bridge 0404. In addition to the data lines (receiver
and transmitter lines), two handshake lines are supported
in both directions (RTS/CTS). The LED on Expert Opto Bridge
0404 serves as status monitor for data transmission RxD
and TxD. The pin configuration of the serial plug is DTE
compliant.
RxD
TxD
RTS
USB side
CTS
GND

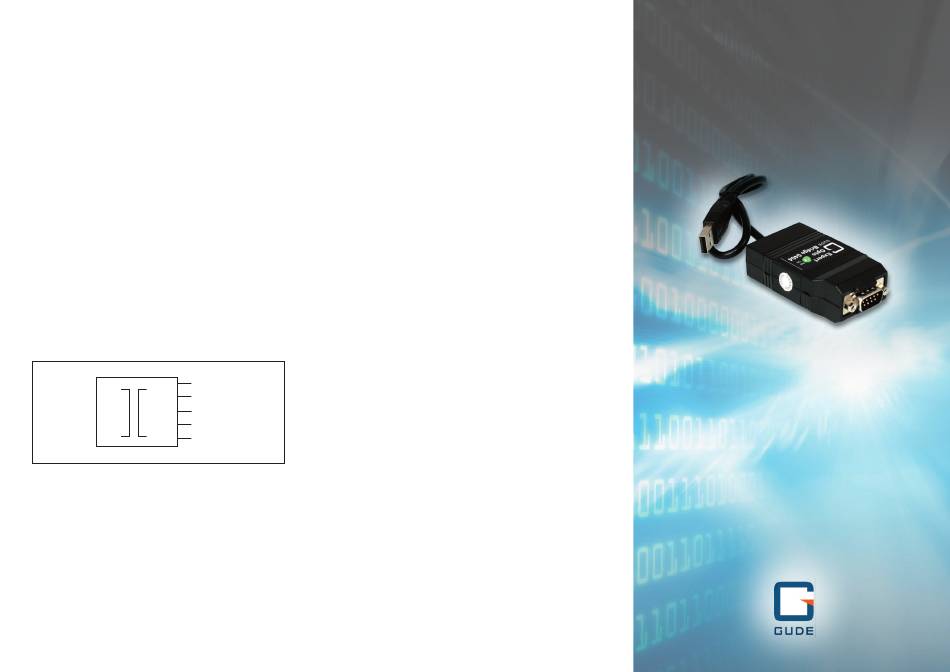

Pin configuration of Expert Opto Bridge 0404
For data transmission between two identical interfaces,
please deploy a null-modem. All functions of Expert Opto
Bridge 0404 are possible without external power supply.
* Windows Server 2003/2008/2012 (x32/x64),
Windows XP (x32), Vista, 7/8/10 (x32/x64)
3. Support
Our Windows software contains a help file. There you
find detailed information on features and operations of
Expert Opto Bridge 0404 as well as a FAQ list. Under
gude.info/nc/support/downloads
available for download. For further questions, please have
a look at www.gude.info/wiki
service team.
4. Attributes

Features

• Overvoltage protection by galvanic isolation
• Isolation voltage max. 2500 V
• Serial input voltage
-15 V to -6 V for logical 1
+15 V to +6 V for logical 0
• Data transfer rate up to 115.000 Baud
• Easy installation through virtual COM port
• In addition to the data lines (receiver and transmitter
lines), two handshake lines are supported in both
directions (RTS/CTS)
• For Windows and Linux systems (from Kernel 2.6)
• LED status monitor for RxD/TxD
• Developed and manufactured in Germany
RS232 side
Electrical Connections
• Serial interface RS232 (Sub-D plug, 9-pin) for device
connection (power supply through USB interface)
• Cable with USB-A plug for PC connection
• USB 2.0 full speed (12 Mbit/s)

Technical Details

• Plastic case, LxHxD: 77 x 24 x 42 mm
• Weight: ca. 55 g
• Cable length: ca. 40 cm
• Operating temperature: 0 - 50 °C
• Storage temperature: -20 - 70 °C
• Relative humidity: 0 - 95 % (non-condensing
environment)
www.
the latest FTDI driver is
or feel free to contact our
Bedienungsanleitung /
Manual
Expert Opto Bridge 0404
USB-/RS232-Wandler mit
galvanischer Trennung
USB/RS232 interface transmit-
ter with galvanic isolation
