Incra LS Positioner Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

INCRA
InCrA'S PAtenteD leAD SCreW teCHnOlOGY FOr tHe ultIMAte In PreCISIOn WOODWOrKInG CAPABIlItY
OWner'S MAnuAl
COntentS
Systems Configurations . . . . . . . .
Safety . . . . . . . . . . . . . . . . . . . .
Getting Acquainted . . . . . . . . . . .
Setup . . . . . . . . . . . . . . . . . . . .
Please read this owner's manual and keep it at
hand for reference.
From typical fence system applications such as
grooving, dadoing, rabbeting, edge forming, and
ripping to advanced joinery functions, your new
INCRA LS Positioner represents the
fence with zero repeatability error.
This translates to perfect cutting results,
regardless of skill level - first time, every time. If
you are interested in joinery for your next project, you
need not look further than your new LS Positioner for
superior box joint and dovetail capability. Whether
you are cutting a simple equally spaced box joint,
or the exquisite INCRA Double Dovetail, you'll find
the simplicity of our template guided joinery system
makes other joint making tools obsolete.
2
Shop Stop . . . . . . . . . . . . . . . . . 10
4
Operation . . . . . . . . . . . . . . . . . 12
4
Applications . . . . . . . . . . . . . . . . 14
5
Adjustments . . . . . . . . . . . . . . . . 14
6
Auto Centering Scale . . . . . . . . . . 15
Warranty . . . . . . . . . . . . . . . . . . 16
ultimate in quality precision
tooling for your dream
shop. Incra's patented lead
screw driven positioning
element sets a new
standard for positioning
accuracy guaranteeing
fence placement to within
two thousandths of an inch
over the full range of the

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS Positioner and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Incra LS Positioner

Summary of Contents for Incra LS Positioner

  • Page 1: Table Of Contents

    INCRA InCrA’S PAtenteD leAD SCreW teCHnOlOGY FOr tHe ultIMAte In PreCISIOn WOODWOrKInG CAPABIlItY OWner’S MAnuAl Please read this owner’s manual and keep it at hand for reference. From typical fence system applications such as grooving, dadoing, rabbeting, edge forming, and...
  • Page 2 INCRA Woodworking Tools & Precision Rules...
  • Page 3 INCRA LS Positioner Owner’s Manual...

  • Page 4: Safety

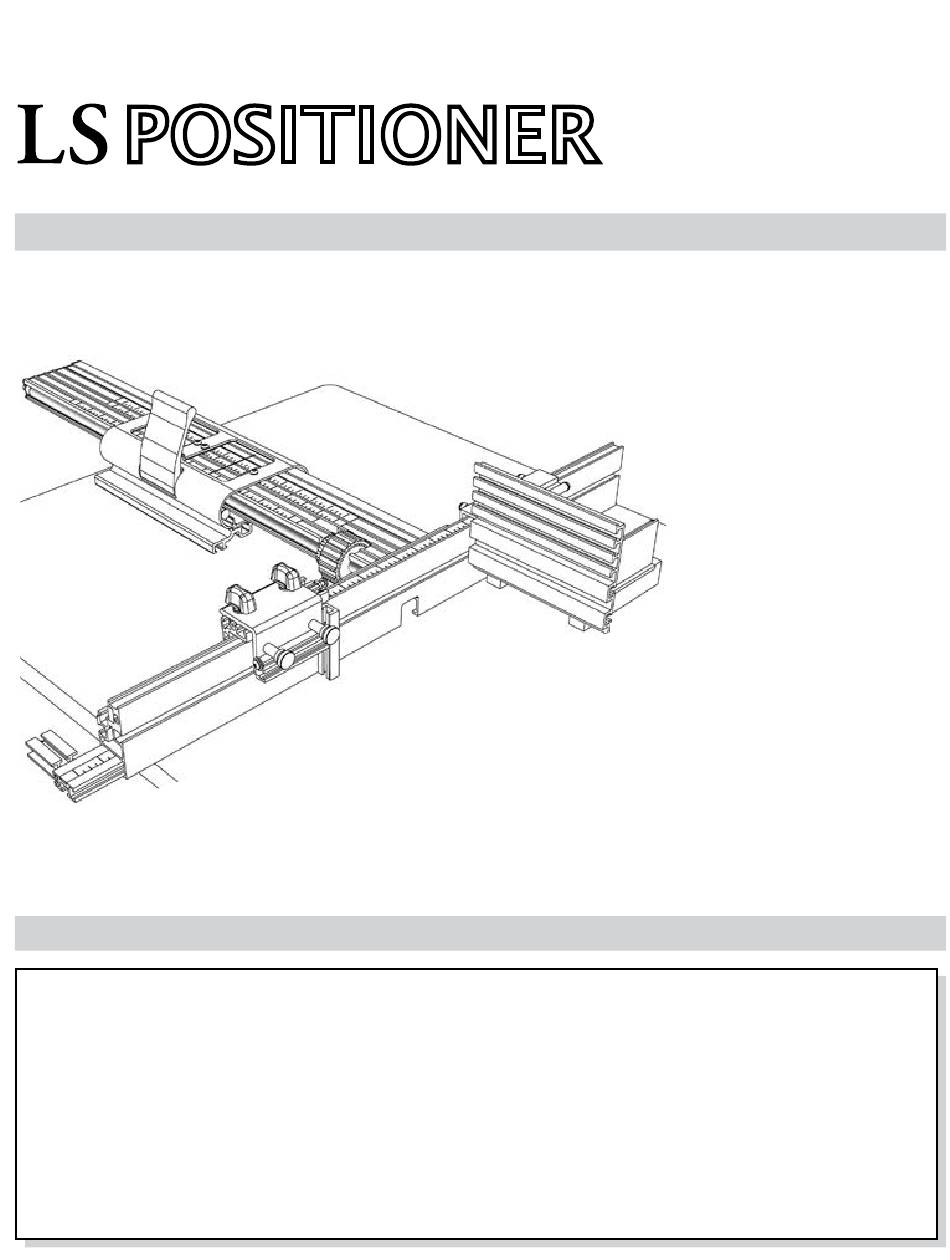

    GettInG ACquAInteD Before setting up and using your new INCRA LS Positioner, take a few moments to become better ac- quainted with the tool by reviewing the following component descriptions and the illustration in Fig. 1.
