Summary of Contents for Rioned Allround+

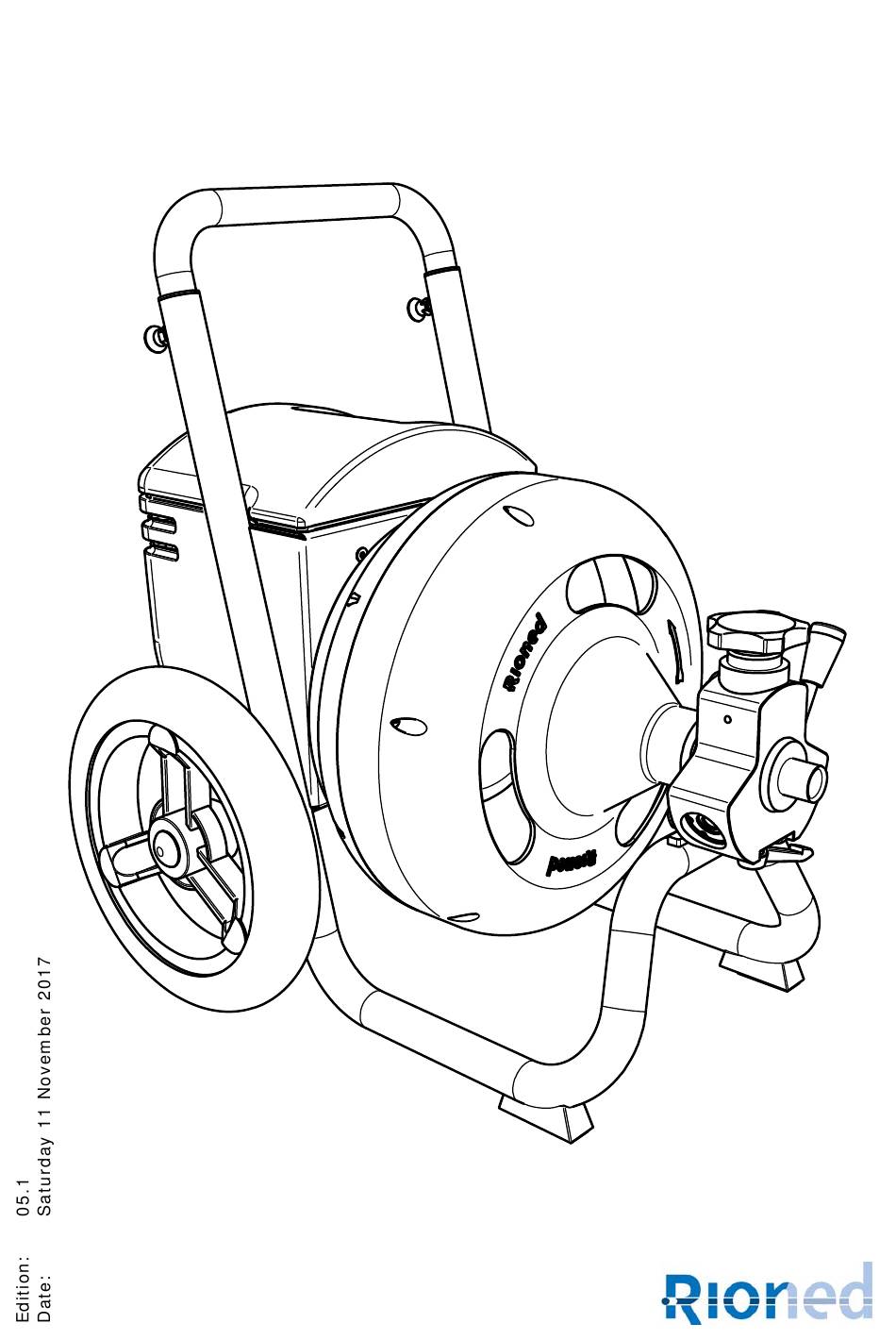

  • Page 1 User’s Manual Allround+ RIONED P.O. Box 5070 5004 EB Tilburg The Netherlands Telephone: +31 13 5479100 e-mail: info@rioned.com Internet: www.rioned.com...
  • Page 2 RIONED. This restriction also holds for the corresponding drawings and diagrams. RIONED has the right to change parts of the machine at any time without any prior or direct warning to the client. Similarly, the contents of this manual can also be changed without any prior warning.
  • Page 3 Foreword This user’s manual is a manual for the professional user. This user’s manual has the purpose to control the machine in a safety manner and must be saved with the machine. The photos and drawings help you understand the text easier. First the user’s manual gives you an overview of the most important safety aspects.
  • Page 4 11/17...
  • Page 5: Table Of Contents

    Table of Contents Introduction ................7 1.1 Use ..................7 Security ..................9 2.1 Instruction indications in this manual........9 2.2 Descriptions security measures ..........9 2.3 Personnel protection outfit ............9 2.4 Warnings ................9 2.5 Personnel qualification and education ........10 2.6 Danger that can occur if the security regulations aren’t observed 10 2.7 Working safely..............
  • Page 6 9.1 Exploded view ..............40 9.2 Stuklijst................41 9.3 Part list ................42 9.4 Ersatzteilliste............... 43 9.5 Liste de rechange..............44 Appendix .................. 45 10.1 EC declaration Of Conformity For Machinery ......45 10.2 Sales Managers ..............46 10.3 Dimensions ................. 47 10.4 Geluidsmeetrapport..............
  • Page 7: Introduction

    Introduction RIONED wishes to thank you for your purchase of the RIONED drain and sewer- clearing machine. We recommend that you read this manual thoroughly and see that the machine is handled and maintained in the proper manner. If your machine should give trouble and need servicing, when you want to order parts, or if you have any questions, contact your RIONED dealer.
  • Page 8 11/17...
  • Page 9: Security

    Security Be responsible for other people when you are working with this machine. This manual contains instructions for fundamental conditions that must be fol- lowed by use and maintenance of this machine. That is why it is necessary that authorised and qualified personnel must read the user's manual and the user’s manual must always be available with the ma- chine.
  • Page 10: Personnel Qualification And Education

    Do not start the machine with switched in feed unit. Take care of a stable disposition of the machine. Never block the control lever, unless this is mentioned. Do not wear cloth that hangs loose. Please note safety instructions (See Chapter 9.5 "Safety instructions" page: 35).
  • Page 11: Security Regulations For The User And Technical Service

    2.10 Making changes and fabricate spare parts Changes to the machine are only permitted if Rioned has given written author- isation. The use of original spare parts and accessories are for the safety nec- essary. Rioned is not responsible for injuries or damages if other spare parts are used.
  • Page 12 11/17...
  • Page 13: Technical Specifications

    Technical Specifications General Description (symbol) Unit Type : Allround+ Dimensions see chapter 10.3 Dimensions page.: 47 Weight (dry) (m) : 23,5 kg Spring lengths (l) : 5 m, 10 m, 15 m and 20 m Maximum spring length : 30 m Spring diameter : ...
  • Page 14: Motor 230V

    Motor 230V Description (symbol) Unit Mark/Type : Neri Power (P) : 250 W Revolutions : 1450 r.p.m. Voltage and frequency : 230 V, 50 Hz. Security : Thermal Cos  : 0,94 Isolation class : IP 54 Motor 110V Description (symbol) Unit Mark/Type : Neri...
  • Page 15: Construction

    Construction The spring-cleaning device contains the following main parts: Handle Pressure knob Feed unit Frame Cover Wheels Locking Switch Drum 11/17...
  • Page 16 11/17...
  • Page 17: Control

    Control If you control, maintain or inspect the machine, you must have the right qualifications for this job. If you do not have the necessarily knowledge, you may not use the machine. Further, you must convince yourself that you understand this manual thoroughly.
  • Page 18: Controls

    5.2 Controls Clamp handle: Turn the handle a quarter turn loose to dismount the feed unit. Pressure knob: By turning the pressure knob, you can bring the feed unit in and out of order. Turn pressure knob clockwise: Feed unit activated. Spring rotates and gets transported.
  • Page 19 Turn pressure knob counter clockwise: Feed unit out of order. Spring rotates, no transportation. Switch: Position : no rotation. Position : drum rotates in working direction. Position : drum rotates reverse. First push the plate lock (A), then turn the switch further over the plate.
  • Page 20: Lade Verwijderen

    Feed unit handle: By operating this handle, the transportation of the spring is controlled. Lever maximum point- ing to the drum: Spring transport speed maximum in. Lever maximum from the drum off: Spring transport speed maximum out. Lever in the middle: no transport.
  • Page 21: Before Unblocking

    5.4 Before un- Couple a spring with a diameter of 16 mm or 13 mm onto the standard blocking spring. Loosen the pressure knob. Press the green press button. Move the handle to the drum. Fasten carefully the pressure knob. Now the spring gets fed into the spring drum.
  • Page 22 Press the red stop button the beginning of the spring is in sight. Let the handle loose. The spring is now wind up in the spring drum. Couple the spring guidance tube onto the feed unit. Press the green press button.
  • Page 23 Fasten carefully the pressure knob. Now the spring is fed out of the spring drum. Press the red stop button the beginning of the spring is come out of the spring guid- ance tube. Release the handle. Loosen the pressure knob. Couple the desired cleaning head (see chapter 8.2 Auxil-...
  • Page 24: Unblocking

    5.5 Unblock- Put the spring machine as near as possible to the drain opening. Never use the spring without the spring guidance tube. When the spring guidance tube is not long enough, you can use the telescope-inlet-tube or another guide tube. Never let the machine run without supervision! Illustration 5.5.1 Wrong manner of...
  • Page 25 Press the green start button. Move the handle of the feed unit away from the drum. Fasten the pressure knob. Now the spring can be fed in. Depending of the position of the handle, the spring moves quicker or slower in or out of the spring drum.
  • Page 26 When there is any resistance in the pipe, you must stop feeding in of the spring immediately. Pull the handle upwards. Then move the spring several times back and forwards at the place of the blockage. By feeding the spring into the drum, move the handle completely up- wards.
  • Page 27: Options

    Options 6.1 Foot Using the optional foot switch allows switch you to switch the electric motor on and off. Your hands are now free for other work. 11/17...
  • Page 28 11/17...
  • Page 29: Maintenance

    Maintenance Warning! Always stop the motor and take the plug out of the wall socket before serving or repairing the machine. 7.1 General The machine is maintenance free, except the feed unit. Use only original spare parts (See Chapter 9 Exploded View Explosionszeich- nung und Ersatzteilliste Dessin et Liste de Rechange page: 43).
  • Page 30 Rotate the handle a quarter turn loose. Move the feed unit from the frame. Hold the drum! Remove the circlip from the feed unit. Remove the tilting disc. 11/17...
  • Page 31 Loosen the lower tilting disc bolt. Remove the circlip from the feed unit. Remove the plates with the bearing from the feed unit. For the other pressure piece, repeat point 1 to again. Loosen the upper tilting disc bolt. 11/17...
  • Page 32 Remove the upper pressure knob. Clean everything thoroughly. Check the pressure bearings. Replace pressure bearings: Remove the axle from the pressure piece. Remove the rings and the pressure bearing. Place the new rings and the new pressure bear- ings in the pressure piece.
  • Page 33: Lubrication

    7.3 Lubrication Bearing Screw thread Springguidancetube in the drum Pressure rolles (3x) Grease nipple Grease nipple Bearing 7.4 Extensive periodical maintenance Have the machine checked and maintained from time to time by the technical service of your dealer. In this way, long life and quality will be guaranteed. 11/17...
  • Page 34: Maintenance Schedule

    7.5 Maintenance schedule Description Interval Cleaning the feed unit : Every time before using the machine and by strong pollution. Checking pressure rollers : Once a month. Change by wastage. Cleaning the body of the machine : Weekly or by strong pollution. Lubrication moving parts : Every 50 hours or at least ones every 6 months.
  • Page 35: Accessories

    Accessories 8.1 Supplies Inlet guide tube: To guide the spring on difficult places. Spring drum empty. Repair and quick couplings: To connect springs or to repair broken springs. Anti-oxidation-spray. Mounting tools: To mount and dismantle spring couplings and auxiliaries. 8.2 Auxiliaries that can be coupled: Retrieving hook: 11/17...
  • Page 36 To remove obstacles from pipes. For example: cloth, rags, napkins, sheets, etc. 4-blade drill and 6-blade drill: To mill pipes that are clogged with frying fat. Cutting knife: To mill big pipes. The knife diameter can be chosen for the right kind of sewer.
  • Page 37 Root cutter: To saw tree roots. Funnel drill: For long bended pipes. Pointed head: For pipes cocked with lime or uric stones. 11/17...
  • Page 38 11/17...
  • Page 39: Exploded View

    Exploded View Explosionszeichnung und Ersatzteilliste Dessin et Liste de Rechange 11/17...
  • Page 40 11/17...
  • Page 41: Exploded View

    9.1 Exploded view 11/17...
  • Page 42: Stuklijst

    9.2 Stuklijst 11/17...
  • Page 43: Part List

    9.3 Part list 11/17...
  • Page 44: Ersatzteilliste

    9.4 Ersatzteilliste 11/17...
  • Page 45: Liste De Rechange

    9.5 Liste de rechange 11/17...
  • Page 46 11/17...
  • Page 47: Appendix

    Appendix 10.1 EC declaration Of Conformity For Machinery (Directive 2006/42/EC, Annex II, sub A) RIONED P.O. Box 5070 5004 EB Tilburg The Netherlands Telephone: +31 13 5479100 e-mail: info@rioned.com Internet: www.rioned.com Herewith declares that: Spring cleaning machine Allround+, • is in compliance with the Machinery Directive (2006/42/EC and 2014/35/EC);...
  • Page 48: Sales Managers

    10.2 Sales Managers EXPORT D.Maas Area Sales Manager Centaurusweg 45 5015 TC Tilburg Tel.: +31 13-547 91 00 REPAIR THE NETHERLANDS RIONED P.O. Box 5070 5004 EB Tilburg The Netherlands Telephone: +31 13 5479100 e-mail: info@rioned.com Internet: www.rioned.com 11/17...
  • Page 49: Dimensions

    10.3 Dimensions 11/17...
  • Page 50: Geluidsmeetrapport

    10.4 Geluidsmeetrapport 11/17...
  • Page 51: Wiring Diagram

    10.5 Wiring diagram 11/17...
  • Page 52: Safety Instructions

    10.6 Safety instructions Warning: When using electric tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following. Read all these instructions before attempting to operate this product and safe these instructions.
  • Page 53 Avoid unintentional starting. Don't carry plugged-in tool with finger on switch. Be sure switch is off when plugging in. Outdoor use extension cords. When tool is used outdoors, use only extension cords intended for use outdoors and so marked. Stay alert. Watch what you are doing.
  • Page 54 11/17...
  • Page 55: Index

    . numerics gloves ....9 4-blade drill ...36 responsible ..... 9 6-blade drill ...36 retrieving hook ..36 rioned .... 10 injuries ....10 insulation ....9 iron pipes ..... 36 accessories ....10 adhesives ....9 sales managers ..46 asbestos ....
