Summary of Contents for Sinotec STL-55N86UM
- Page 1 User's Manual...
-
Page 2: Table Of Contents
Contents Caution ..................2 Safety Information ..............3 Control Button ................5 Terminal ..................6 The Remote Control ..............7 Connection ................9 ON/OFF Power ................. 11 Input Source ................11 Menu Operation ................ 11 Main launcher ................Specifications ................21 Simple Troubleshooting ............. -
Page 3: Caution
Caution The lightning flash with the arrowhead symbol, inside an equilateral triangle is intended to alert the user of the presence of un-insulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the user. The exclamation mark inside an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions. -
Page 4: Safety Information
Safety Information WARNING : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus should not be exposed to dripping or splashing liquids and no objects filled with liquids, such as vases, should be placed on the apparatus. IMPORTANT SAFETY INSTRUCTIONS 1. - Page 5 Safety Information 12. Only use a cart, stand, tripod, bracket, 14. Refer all servicing to qualified service or a table specified by the manufacturer personnel. Servicing is required when or which is sold with the apparatus. the apparatus has been damaged in any way.
-
Page 6: Control Button
Control Button Note: The following is only functional schematic, And the actual position and arrangement of different models may be different. Some models has 5 buttons, some models has 7 buttons. STAND BY(or POWER): Standby or switch on the TV. -(CH/VOL)+: hort press to change channel, long press to adjust sound volume. -
Page 7: Terminal
Terminal The LED TV has large multimedia function, which can be connected with many kinds of equipments. The following a paragraph shows how it connect with other Audio and Video devices. USB IN USB IN TF CARD Coaxial OUT Audio-R PC IN HDMI1 IN HDMI2... -
Page 8: The Remote Control
The Remote Control The remote controller cannot be used unless it is within the receivable range. Before you use the remote control, please make sure there's no obstacle between the remote control and the receiver. STANDBY( POWER) BUTTON Switch On/Off the TV when on standby mode. 2. - Page 9 The Remote Control Using the remote control Open the battery door and insert 2 "AAA" batteries. ● Point the remote control at the remote sensor located on the unit. ● When there is a strong ambient light source, the performance of the infrared remote sensor ●...
-
Page 10: Connection
Connection Antenna VHF TV ANTENNA UHF TV ANTENNA To TV ANTENNA JACK 75 OHM COAXIAL CABLE 300 OHM 75 OHM ADAPTOR 75 OHM DIN 300 OHM FLAT CABLE Connect the 75 OHM coaxial cable from the antenna to the antenna socket on the rear panel, as shown above. - Page 11 Connection -10-...
-
Page 12: On/Off Power
ON/OFF Power Connect the power plug to the household power outlet. Press main power switch on TV unit (some models without power switch). Thereafter press the [STANDBY] button to open or switch the receiver off. Note: Remove plug from the power outlet when not using it for a long period of time. Input Source ●... - Page 13 Menu Operation Picture ● Picture Mode: Select the favorite picture mode. ● Contrast/Brightness/Color/Sharpness/Hue: Adjust picture settings. Hue is only workable with NTSC system in AV mode. ● Noise Reduction: You can clear up the input signal by setting the item. ●...
- Page 14 Menu Operation Channel Note: The Channel Menu is available only in TV mode. ● Antenna Type: Select the antenna type. ● Auto Scan: Searching programs automatically. ress [EXIT] to stop searching. ● Anolog Manual Scan: Searching the ATV programs by input the frequency.
- Page 15 Menu Operation Setting ● OSD Language: Set the OSD display language. ● Blue Screen: Set the background in blue or black when no signal input. ● PVR Setting: Insert storage device such as USB or TF card, and enter sub menu. Press [PVR] button to start recording TV program, press [source] to stop recording.
- Page 16 Menu Operation Time ● OSD Timer: Select OSD Timer ● Sleep Timer: Select Sleep Timer PC Adjust Connect the PC t erminal to computer, and select PC source. ● Auto Adjust: Automatically adjust. ● Horizontal Position: Shift the screen left or right. ●...
-
Page 17: Main Launcher
Main launcher Main launcher Press the [HOME] button to enter the main launcher. Press [ ] to select the menu. set . Press [ENTER] button to select Add the commonly-used application independently by selecting “+” on the home page. Select one application and press [enter] for a long time to delete this application. You can select and enter option [App List] to view all ready applications programs in this TV. - Page 18 Main launcher System Setting Select the Settings] in the Main Menu to enter the System Setting. Net mode: Select Wire net or Wireless. Wire network: Insert the Ethernet cable ,and select Auto get IP address to connect the Ethernet. Wireless Network: Select the WIFI, and press the password to connect.
- Page 19 Main launcher Multimedia Select option MEDIA to enter Multimedia, select the Video/Music/Photo/Folder, and press the [ENTER] button to enter. Press key [menu] during play, operation menu will display on the screen. -18-...
- Page 20 Main launcher EshareServer Press the [HOME] to enter APP List, and select the EshareServer. Scan the QR code to install the EshareServer. Iphone Android Phone Open the Eshare, and Connect. Optional function: Remote Control/TV Mirror/Mirroring. Remote Contrl/Control Optional function: Keys/Touch/Mouse/AirMouse. -19-...
- Page 21 Main launcher TV Mirror Select the TV Mirror, and enter it, then your phone will show the screen of the TV. Mirroring Select the Mirroring function, and enter it, then you can cast the screen of your cellphone to the TV. -20-...
-
Page 22: Specifications
Specifications Reception Range 48.25MHz～863.25MHz Video System PAL /SECAM Sound System BG, DK, I VHF(52.5MHz～219MHz) Reception Range UHF(474MHz～866MHz) Modulation DVB-C/DVB-T/DVB-T2 Video System MPEG-2, MPEG-4, H.264 Sound System MPEG-1 layer 1/2, MPEG-2 layer 2 Basic Functions EPG, PVR, Subtitle, TELETEXT Input Impedance 75Ω... -
Page 23: Simple Troubleshooting
Simple Troubleshooting If the display fails or the performance dramatically changes, check the display in accordance with the following instructions. Remember to check the peripherals to pinpoint the source of the failure. If the display still fails to perform as expected, contact the dealer for assistance. - Page 24 TP.MS638.PC822-02A...
Need help?
Do you have a question about the STL-55N86UM and is the answer not in the manual?
Questions and answers

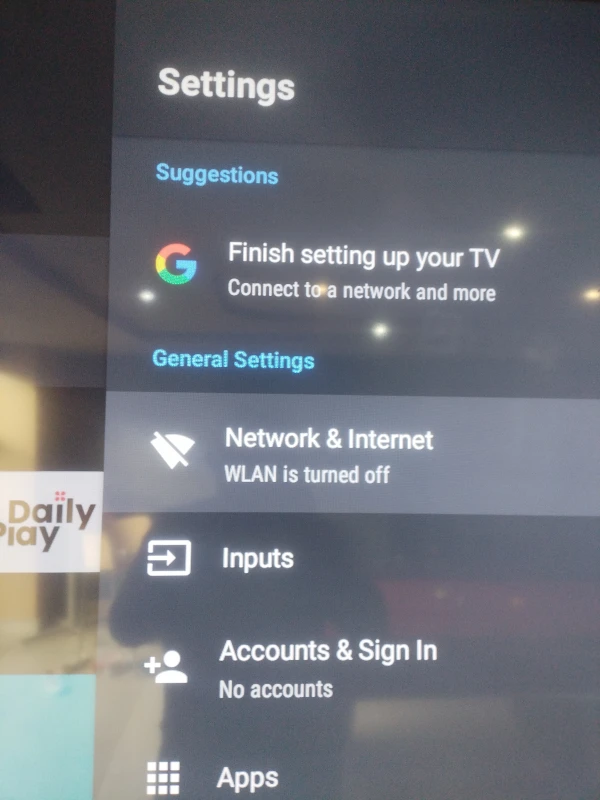

WLAN it turns itself off every time
