*NOTE – Identifying feature DA Number on plunger Item #5
CAUTION
The OTR-2000E Bead Breaker, and
all tire tools, should be used only by
persons properly trained according to
OSHA regulation #29CFR1910.177,
"Servicing Single-Piece & Multi-Piece
Wheels"
ITEM
PART NO.
2
B1013122
3
DA12376038
4
DA11663157
5
DA11665040
6
34184

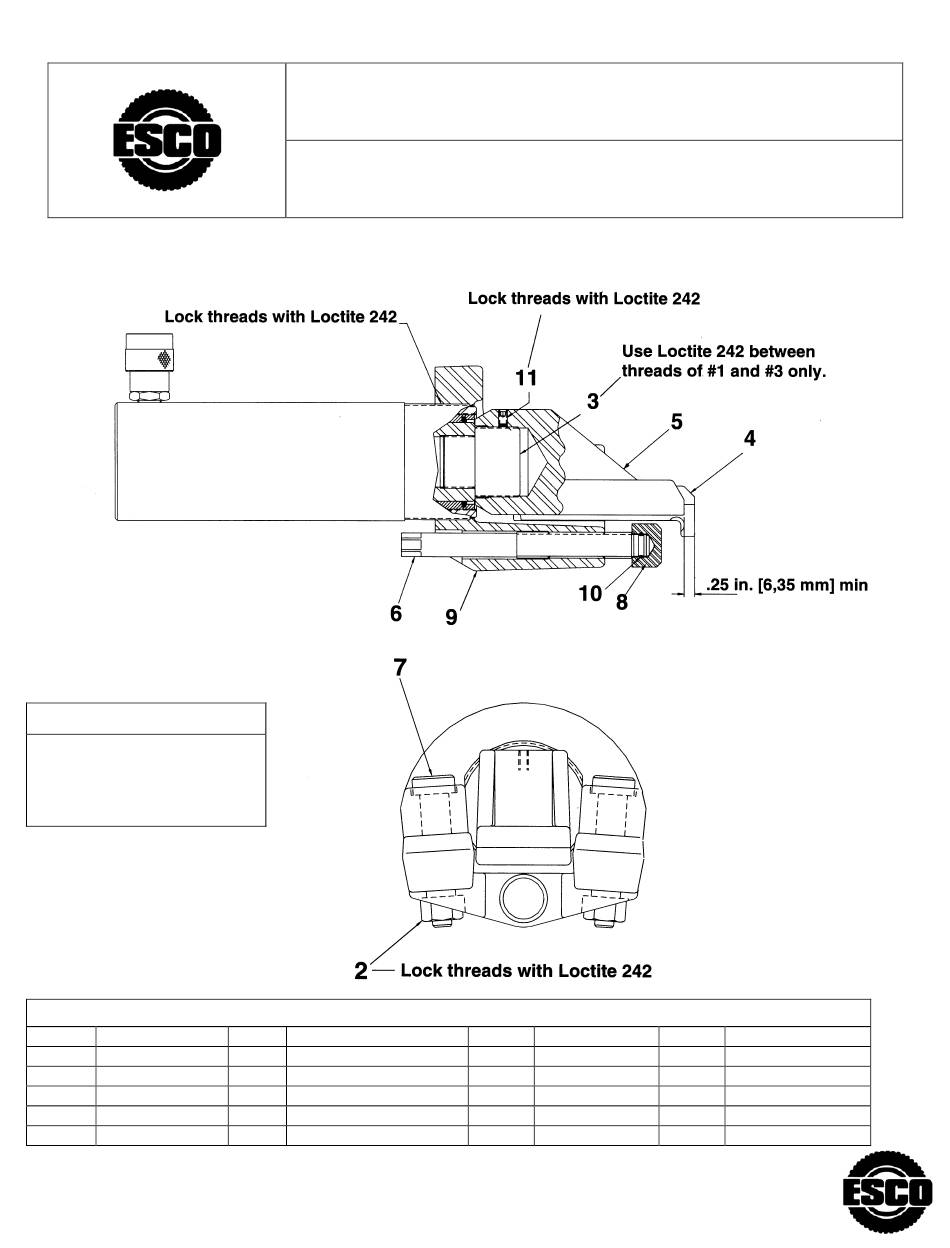

10103 (OTR-2000E) BEAD BREAKER
Repair Parts List
QTY.
2
Hex Nut
1
Adapter Thread
2
Hook
1
Plunger
1
Screw Set
Repair Parts Sheet
ITEM
PART NO.
7
DA11799130
8
28705
9
DA11667038
10
DA11816049
11
DA751027
QTY.
DESCRIPTION
2
Shoulder Bolt
1
Pressure Nut
1
Frame
1
Retainer Ring
1
Set Screw
Advertisement
Table of Contents
Summary of Contents for Esco OTR-2000E
- Page 1 Repair Parts Sheet 10103 (OTR-2000E) BEAD BREAKER *NOTE – Identifying feature DA Number on plunger Item #5 CAUTION The OTR-2000E Bead Breaker, and all tire tools, should be used only by persons properly trained according to OSHA regulation #29CFR1910.177, “Servicing Single-Piece & Multi-Piece Wheels”...
- Page 2 REV0709 Repair Parts List ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION *CH800041 U-Cup G89044 Stop Ring F948209 Bushing *G907108 Washer B1014028 Screw *G908044 Retaining Ring *G731044 Wiper Ring 10606 Female Coupler G833055 F937110 Spring *G834167 Gasket G897040 Plunger B1157057 BSG894005...
- Page 3 NEDERLANDS ..31-36 DESCRIPTION The OTR-2000E Bead Breaker is used on 39", 45", 49", 51", 57", and larger multi-piece rims with pry bar pockets. The OTR2000E has a 6.25" stroke and is designed to break giant off-the-road tire beads on any rim. It can be used with a model AHP15T, AHP25TP, AHP35T, or equivalent 10,000 psi [700 bar] pump.
- Page 4 Figure 1 Figure 2 Figure 3 Figure 4 - 2 -...
- Page 5 Activating the Bead Breaker A CAUTION The bead breaker uses a long stroke and high force. Be careful not to damage or bend rim parts, such as the flange butt weld, when using the bead breaker. 1. Turn on the hydraulic pump to activate the bead breaker. 2.
- Page 6 Figure 9 steps in USING THE OTR-2000E BEAD BREAKER on pages 2 and 3. 2. Using a hoist, lift the rim base from the tire. Using the ESCO Flange Ring Puller Model 90300 will make handling easier. (See Fig. 10.) 3.
- Page 7 1. To comply with OSHA Regulation #29CFR1910.177, place the tire in a safety cage or other restraining device, such as an ESCO Push Bar Model 90201, before inflating the tire. Use a clip-on air chuck and hose that is long enough to allow you to stand outside the wheel trajectory. The air line must be equipped with an in-line valve with pressure gauge or regulator that can be preset.
- Page 8 4. Once you see that the tire bead is fully seated at 40 psi [2,76 bar], deflate the tire completely. 5. Reinflate the tire slowly to the manufacturer’s recommended pressure. A DANGER Inflate and load tires only to manufacturer’s specifications. Over-inflating and overloading tires can result in serious injury or death.
