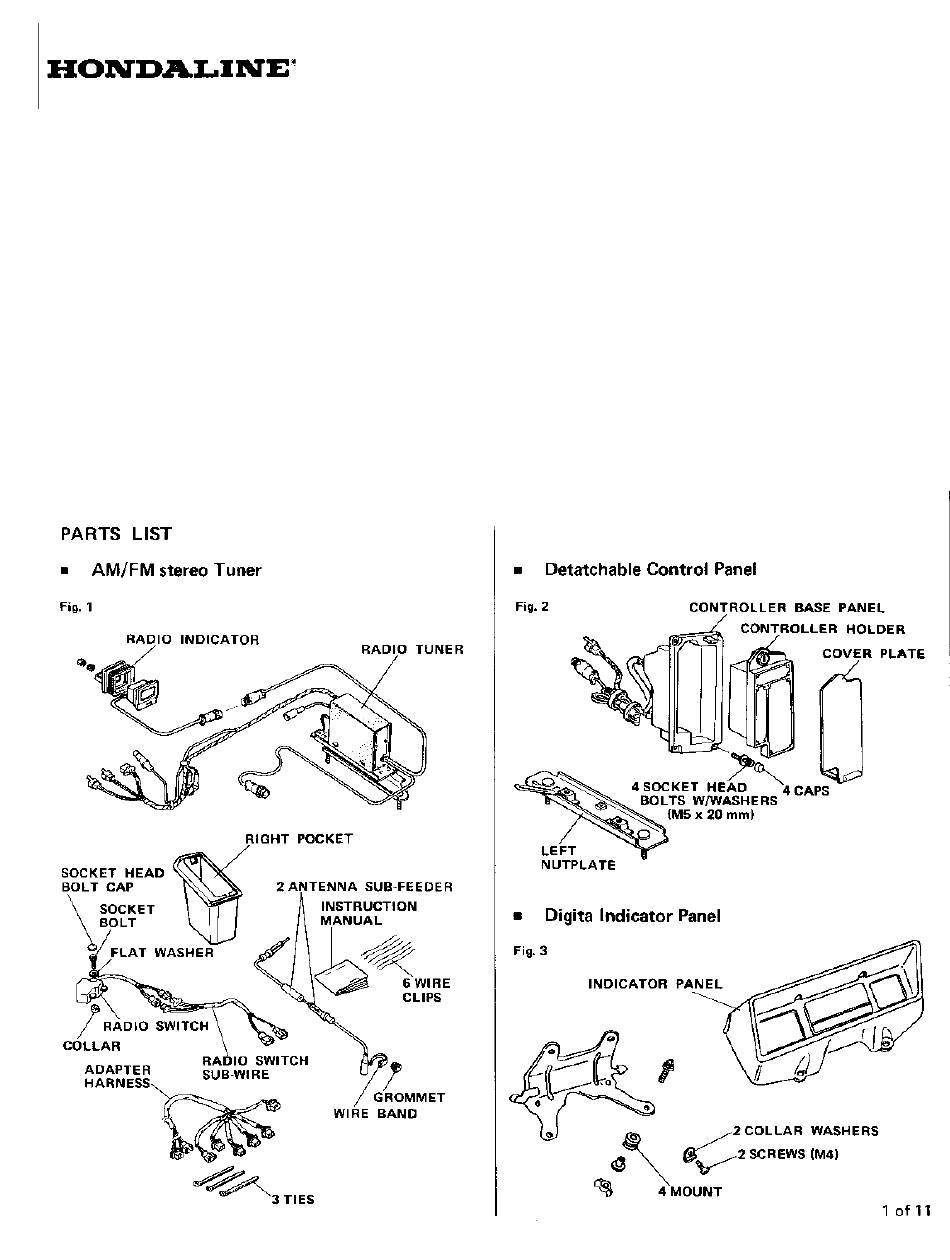

PREFACE
Congratulations on purchasing this quality
Type 11 Honda Motorcycle Audio system.
This booklet is your guide to the installation
o f y o u r n e w T y p e I I H o n d a M o t o r c y c l e
R a d i o . P l e a s e t a k e t h e t i m e t o r e a d t h e
booklet carefully. (Your authorized Honda
dealer will be glad to provide further informa-
tion or assistance and is equipped to handle
your further service needs.)
HONDA MOTOR CO., LTD. 1981
Accessory
TYPE 11
AM/FM RADIO
•
All Rights Reserved
Application
GL1100
TOOLS REQUIRED
•
Ratchet and 12" extension
•
7 and 10 mm sockets
•
8, 10, and 14 mm box wrenches
•
Drill
•
1/8", 7/32", 3/16", and 1/4" Bits
•
2.5, 4, 8 mm hex wrench
•
#1 and #2 Phillips screwdrivers
•
Sharp knife or Razor blade
•
Hammer
•
Center punch
•
Masking tape
•
17 mm open-end wrench
Publications No.
HP 190 8112
Issue Date
DECEMBER
1981
08118-MB910-95 Printed in Japan
28 4-3 60 2-0 0

Advertisement

loading
Need help?

Need help?

Do you have a question about the 11 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hondaline 11

  • Page 1 • Ratchet and 12" extension Congratulations on purchasing this quality • 7 and 10 mm sockets Type 11 Honda Motorcycle Audio system. • 8, 10, and 14 mm box wrenches This booklet is your guide to the installation • Drill o f y o u r n e w T y p e I I H o n d a M o t o r c y c l e •...
  • Page 2 2 of 1 1...

  • Page 3: Installation

    7) Install speakers III. 8) Install nutplate IV. 9) Install Power Amplifier in fairing. 10) Install radio funer VI. 11) Install the radio controller VII. 12) Install controller base panel VIII 13) Install radio switch sub-wire. 14) Connect adapter harness and wires inside f a i r i n g b y w o r k i n g t h r o u g h l e f t t u r n signal lens hole.
  • Page 4 (Fig.10) Fig. 10 ADHESIVE TAPE TEMPLATE —Power amplifier mounting holes- 7) Drill two 5.5 mm holes through concaves in fairing. Fig. 11-2 L E I - 1 N U I P L A T E 4 of 11...
  • Page 5 Fig. 13 THICK END BASE BRACKET CUSHION RUBBER SPECIAL WASHER 5 of 11...
  • Page 6 Temporarily secure other wires with wire clips. Fig. 17 WIRE FROM RIGHT SPEAKER WIRE FROM LEFT I 2 CAP NUTS - SPEAKER WIRE GRAY RIGHT SPEAKER SHOWN LEFT SIMILAR POWER 6 of 11 AMPLIFIER...
  • Page 7 9-P W / W A S H E R S (M5 x 20 connector. Fig. 19 WIRES BUNDLED WITH YELLOW TAPE INDICATOR WIRE FROM INDICATOR 4 CAPS CONTROLLER WIRE ANTENNA FEEDER CONTROLLER EXTENSION BASE PLATE RADIO TUNER 7 of 11...
  • Page 8 Route radio switch sub wire out through left turn signal lens hole and secure with wire clip as shown. Fig. 23 RADIO SWITCH SUB-WIRE 7) Press all bundled wires and wire harness into fairing through left turn signal lens hole. Fig. 25 8 of 11...
  • Page 9 ■ Antenna Installation (Fig. 26, 27, 28, 29) Fig. 27 1) Remove seat by removing hex socket bolts (one on each side) and pulling it backward. 2) Remove the top compartment by remov- ing four bolts (M6) (one on each side at front and rear) and pulling it upward.
  • Page 10 Fig. 34 ■ Radio switch installation (Fig. 32, 33) GROMMET 1) Remove plug from left handlebar lever bracket and install radio switch. RADIO SWITCH SUB-WIRE RADIO SWITCH 9-P CONNECTOR ANTENNA FEEDER EXTENSION GROUND WIRE ANTENNA FEEDER 10 of 11...
  • Page 11 11of 11...

  • Page 12: Parts List

    8, 10, and 14 mm Box wrenches booklet is your guide to the installation of • Drill your new Hondaline Type II Intercom, CB • 1/8", 7/32", 3/16", and 1/4" Bits Transceiver Cassette Deck. Please take the time to read the booklet carefully. (Your •...
  • Page 13 10) Install Component terminal V. 11) Install Branch lead. 1 2 ) P l u g i n a l l c o n n e c t o r s t o c o m p o n e n t terminal.
  • Page 14 3) Attach template to fairing using adhesive tape where shown. 4) Punch mark centers of four holes with a drift and hammer. 5) Drill 6 mm holes through marked centers. 3 of 11...
  • Page 15 Fig. 11 6 WIRE CLIPS 9) Install windshield on fairing before install- ing speakers. ■ Removing Radio Parts (Fig. 10, 11, 12) Remove several radio parts from fairing as follows when already radio mounted. ADAPTER WIRE HARNESS 1) Pull out bundled wires through left turn signal lens hole.
  • Page 16 8 ) R e m o v e y e l l o w t a p e f r o m w i r e s a n d secure wires with wire clip temporarily. 9) Pass indicator wire out through right turn signal lens hole and connect it to wire from CB indicator. of 11...
  • Page 17 1) Install ant enna d ist ri bu to r on l ef t n u t CB CONTROLLER RADIO ANTENNA WIRE FEEDER plate as shown. Fig. 17 SEMS SCREW TO COMPONENT COLLAR TERMINAL ANTENNA DISTRIBUTOR CUSHION RUBBER 6 of 11...
  • Page 18 Remove CB controller blind lid from con- terminal. troller holder and slide CB controller into 2) Attach lead hooks and secure branch lead with controller holder and install using four them where shown. socket bolts. Fig. 22 Fig. 20 7 of 11...
  • Page 19 3 ) C o n n e c t a u d i o m a i n h a r n e s s t o s u b harness G, fairing wire and other wires ((c) in Fig. INT-6). 4) Bundle wires and harness with ties as shown ((d) in Fig. INT-6). 8 of 11...
  • Page 20 5) Press all bundled wires and harness into 3) Route wire through left turn signal lens fairing through left turn signal lens hole. hole and secure wire temporarily. 4) Set cassette deck in deck base. Fig. 25 Fig. 27 CASSETTE DECK ■...
  • Page 21 CB PASSENGER 4) Route CB passenger switch sub wire along SUB-WIRE with antenna feeder. 9-P CONNECTOR CONNECTOR HOLDER Fig. 31 GROUND WIRE ANTTENNA FEEDER CB PASSENGER SWITCH SUB WIRE JUNCTION LEAD CONNECTOR HOLDER INTERCOM JUNCTION LEAD ANTENNA FEEDER 10 of 11...
  • Page 22 WIRE ROUTING AND FUSES (Fig. 33) 1) Connect all wires to wire harness ter- 2) Fuses are located in left turn signal base. minals properly. To replace fuses, remove left turn signal. Fig. 33...
  • Page 23 Publications No. COMPONENT KIT Issue Date 1983 ■ Reworking on fairing (Fig. 3,4) TOOLS REQUIRED • # 1 and # 2 Phillips screwdrivers 1) Lightly roll template so that it will follow • 8mm Box wrench contour of fairing snugly. •...
  • Page 24 Fig. 7 ■ Removing Radio Parts (Fig. 5, 6, 7 ) Remove several radio parts from fairing as follows when already radio mounted. 1) Pull out bundled wires through left turn signal lens hole. Fig. 5 INSTALLATION ON FAIRING ■ Component Terminal and ALC-Amplifier Installation (Fig.
  • Page 25 ■ Routing Wires Inside Fairing (Fig.11, 12 ) ■ Connector Plugging in (Fig. 10) Plug in all connectors should be connect 1) Bundle all harness wires passed out of to component terminal as shown. left turn signal lens hole (not yet con- n e c t e d ) w i t h t i e s ( 1 ) a n d ( 2 ) ( ( a ) i n Fig.
  • Page 26 4) Press all bundled wires and harness into fairing through left turn signal lens hole. Fig. 12 ■ INTERCOM Controller Installation (Fig. 13) Remove INTERCOM controller blind lid from controller holder and slide INTERCOM controller into controller holder and install using four socket bolts.
