Summary of Contents for BAUKER BTC180B

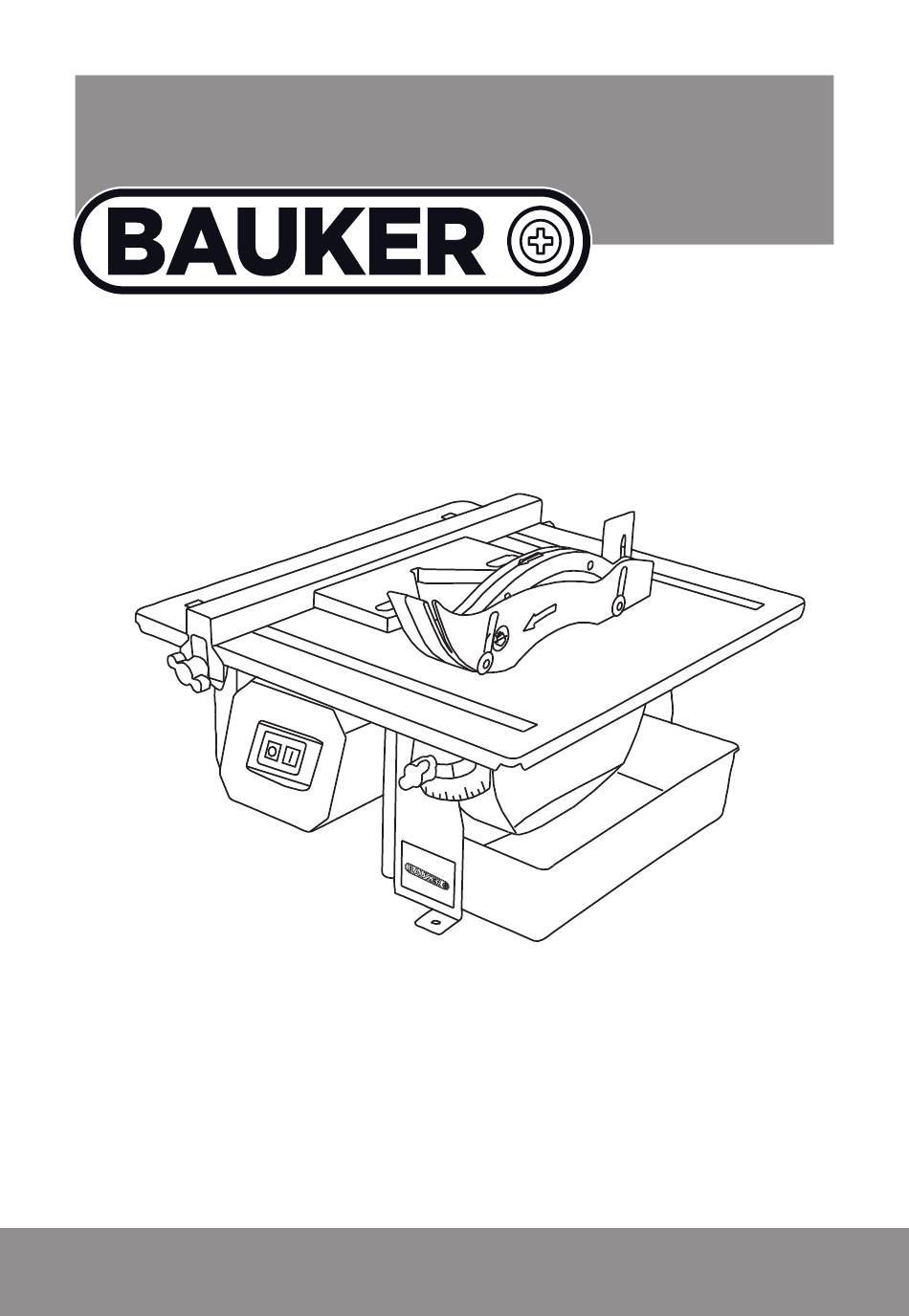

- Page 1 BTC180B 600W TILE CUTTER ORIGINAL INSTRUCTION MANUAL...
-
Page 2: Safety Information
SAFETY INFORMATION WARNING! When using electric tools basic safety precautions should always be followed to reduce the risk of Important - Please read these instructions fully before starting assembly fire, electric shock and personal injury including the following. General Power Tool Safety Warnings Read all these instructions before attempting to operate this product and save these instructions". - Page 3 Non-skid footwear is recommended when working outdoors. Wear protective hair covering to contain long hair. 9. Use protective equipment Important - Please read these instructions fully before starting assembly Use safety glasses. General Power Tool Safety Warnings Use face or dust mask if working operations create dust. 10.
- Page 4 operate the tool when you are tired. 20. Check damaged parts Before further use of tool, it should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other conditions that may affect its operation.
- Page 5 SYMBOLS To reduce the risk of injury, user must read instruction manual Wear eye protection Wear ear protection Wear dust mask Warning Double insulation Always wear gloves Remove plug from mains before maintenance or if cord is damaged. Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist.
- Page 6 EN-6...
- Page 7 Inner domed washer Outer domed washer EN-7...
- Page 8 EN-8...
-
Page 9: Component List
9. BLADE GUARD COVER AND SPACING PLATE 10. WATER TRAY 11. TABLE ANGLE SECURING KNOB (ONE EACH SIDE) 12. RCD SWITCH (ONLY FOR BTC180B.1) Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA 230V~ 50Hz... -
Page 10: Noise And Vibration Data
NOISE AND VIBRATION DATA A weighted sound pressure =92dB(A) = 3.0dB(A) A weighted sound power =105dB(A) : 3.0dB(A) Wear ear protection. EN-10... -
Page 11: Operating Instructions
Note: The fixing plate should be fitted on the inside surface of the work table edges. OPERATING INSTRUCTIONS Residual circuit device (RCD) operation (see F) (only for BTC180B.1) Function This RCD device will cut off the power immediately when it detects an electricity leakage in your power tool. -
Page 12: Environmental Protection
WARNING: Please perform an RCD test before using your tool and follow the above instruction. If the RCD repeatedly is power off with an appliance connected or if it fails to power off when tested following the above instructions, please do not use the RCD and you must seek advice from a qualified electrician. - Page 13 PLUG REPLACEMENT (ONLY FOR REWIRABLE PLUG OF UK & IRELAND) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: BLUE – NEUTRAL BROWN –...
-
Page 14: Declaration Of Conformity
PO Box 6242, Newbury, RG14 9LT, UK Declare that the product Description Electric Tile Cutting Machine Type Designation BTC180B (TC-designation of machinery, representative of Tile Cutting Machine) Function Cutting tile or analog materials Complies with the following Directives: 2006/42/EC, 2011/65/EU, 2014/30/EU...
