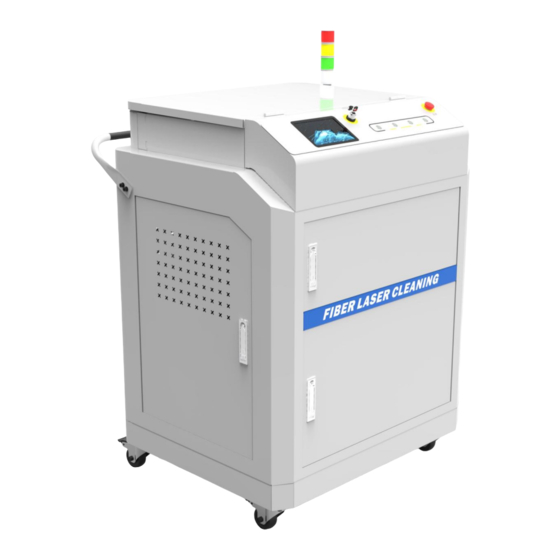

Summary of Contents for Senfeng Laser SF200CL

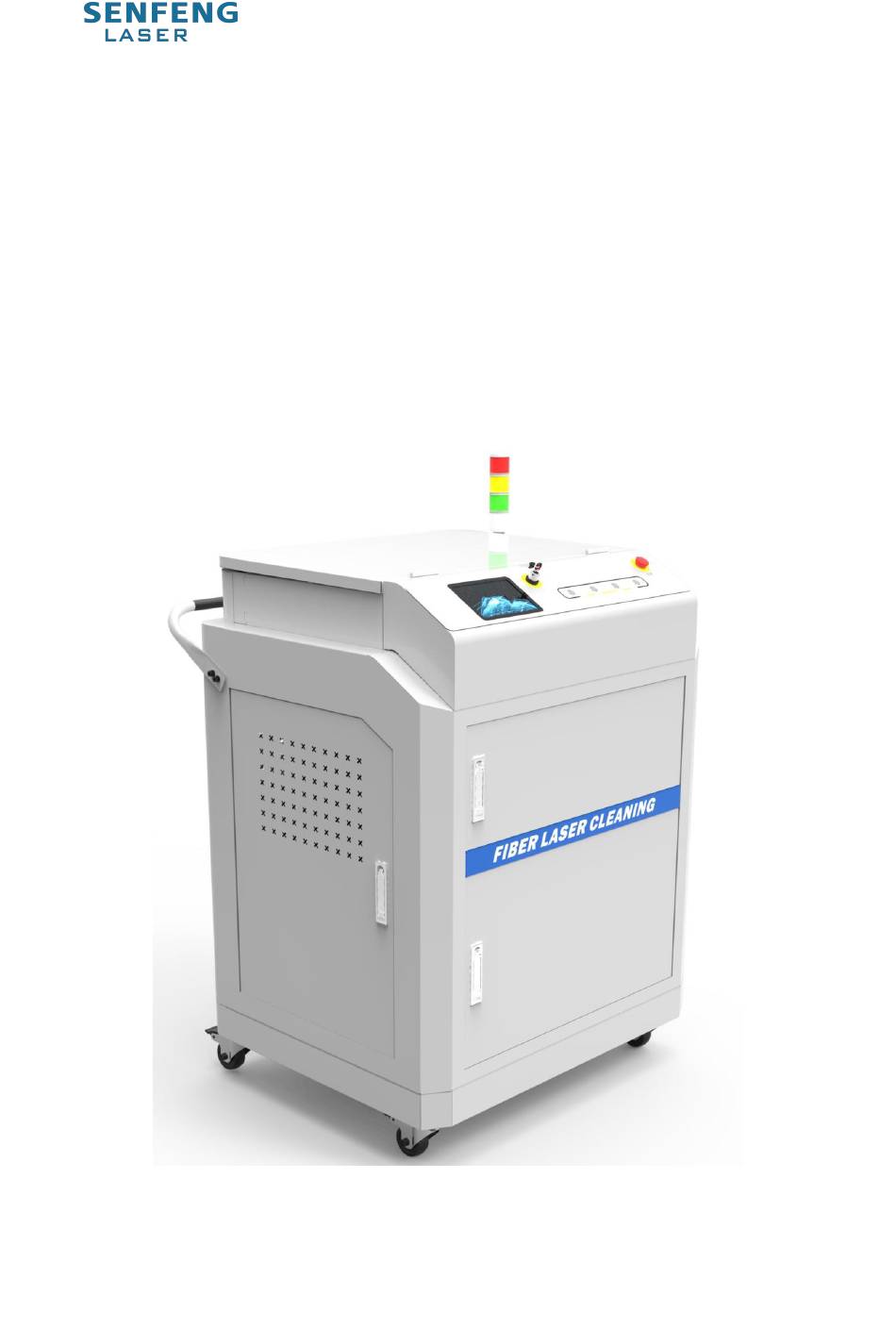

- Page 1 SF200CL Manual of laser cleaning machine SF200CL www.senfenglaser.com...
-
Page 2: Safety Information
SF200CL 1. Safety information Thank you for choosing SENFENG handheld laser cleaner. This user manual provides you with important safety, operation, maintenance and other considerations. Please read this manual carefully before using this product. To ensure safe operation and the best condition of the product, please follow the following notes and warnings. -
Page 3: Electrical Safety
SF200CL Figure 1:Laser mark Figure 2:Handle with care 1.4 Electrical safety ①Please ground the product through the PE wire in the power cord, ensure solid and reliable grounding. If the grounding is disconnected, the product casing will be charged, causing personal injury to the operator. - Page 4 SF200CL 2.2 Shipbuilding industry ,Auto parts ,Rubber mold ,High-end machine tools,Tire mold,tracks environmental protection industry,Other industry 2.3 The scope of the application Laser paint removal Laser degreasing Laser removal of oxide layer Laser cleaning screw Before cleaning tire mold After cleaning tire mold...
- Page 5 SF200CL 2.4 Advantage comparison Sheet 1 Advantage comparison Comparison Mechanical Laser cleaning Chemical Ultrasonic project polishing cleaning cleaning cleaning Chemical Mechanical Cleaning Laser, ice, Detergent,cont cleaner, sandpaper, method non-contact non-contact contact contact Artifact no damage damage damage no damage damage...
- Page 6 SF200CL consumables costs high cost of maintenance consumables consumables costs 2.5 Operating environment of laser cleaner The basic operating environment of this product is as follows Sheet 2 Basic operating environment of the equipment content parameter Single-phase 220V±10%, 50/60Hz AC...
- Page 7 SF200CL Center wavelength(nm) 1064 Repeat frequency（KHz） 10-50(Gradient adjustable） Monopulse energy （mJ） 10.00 Peak power maximum（KW） Spot diameter（mm） Pulse strength（Watt/m 0.10 ） Cleaning efficiency（m /h） Focal length（mm） 210/160 replaceable Auto focus Cooling method Water cooling 2.8 Laser cleaning head size chart 2.9 Laser cleaning machine size chart...
- Page 8 SF200CL 3. Laser cleaning machine installation and use 3.1 Operating steps Step 1:Take out the power cable,connect the 220V/50Hz power supply,red to the live wire,black to the neutral wire,yellow ground wire. Step 2:Check the water level of the water tank.If the water level is too low,please add pure water and then electrify;if the water level is normal,turn the open switch upwards,...
- Page 9 SF200CL 2) Turn the"power" key switch to the right,turn on the control system power, and the green indicator light is on. 3) Press the "laser" button, the laser green button light is on picture5 Step 4: Open the cabinet to turn on the laser, as shown in Figure 6.
- Page 10 SF200CL picture7 Step 6: Display screen control operation. 1）The boot page is shown in figure 8; 2) Enter the parameter setting page, Power （ %） is percent power, Freq （Khz） is actual frequency value, as shown in figure 9; Picture 8...
- Page 11 SF200CL the“ ” button at the bottom of the screen to enter the parameter setting interface again. picture12 Step 7: Press the "control" button in the picture below (note: for safety, this button should be turned off immediately after use).
- Page 12 SF200CL Picture 15 Step 10: After using, the machine should be turned off in reverse order. 3.2 Precautions in use of cleaning machine 1.Laser cleaning machine under the state of power, it is prohibited to laser output head to the direction of someone, laser output head is prohibited to illuminate high anti-material surface (such as copper, aluminum, mirror stainless steel and other surface strong reflective material).
-
Page 13: Warranty Limitations
SF200CL they meet the specification in normal use. Raycus has the right to selectively repair or replace products with material or technical problems within the warranty period. For all products repaired or replaced within the warranty period, only those products with special problems can be guaranteed free of charge. - Page 14 SF200CL Jinan SENFENG Technology CO.,LTD. Add:No.6333 North Lingang Road, Yaoqiang Street Office,Hightech Industrial Development Zone, Ji'nan, Shandong, China senfeng@sfcnclaser.com info@sfcnclaser.com Tel/Whatsapp:0086-13210546543 Tel:+86 0531-88737920 Skype:senfenglaser1 www.senfenglaser.com...
