Summary of Contents for Rockville RWM90U

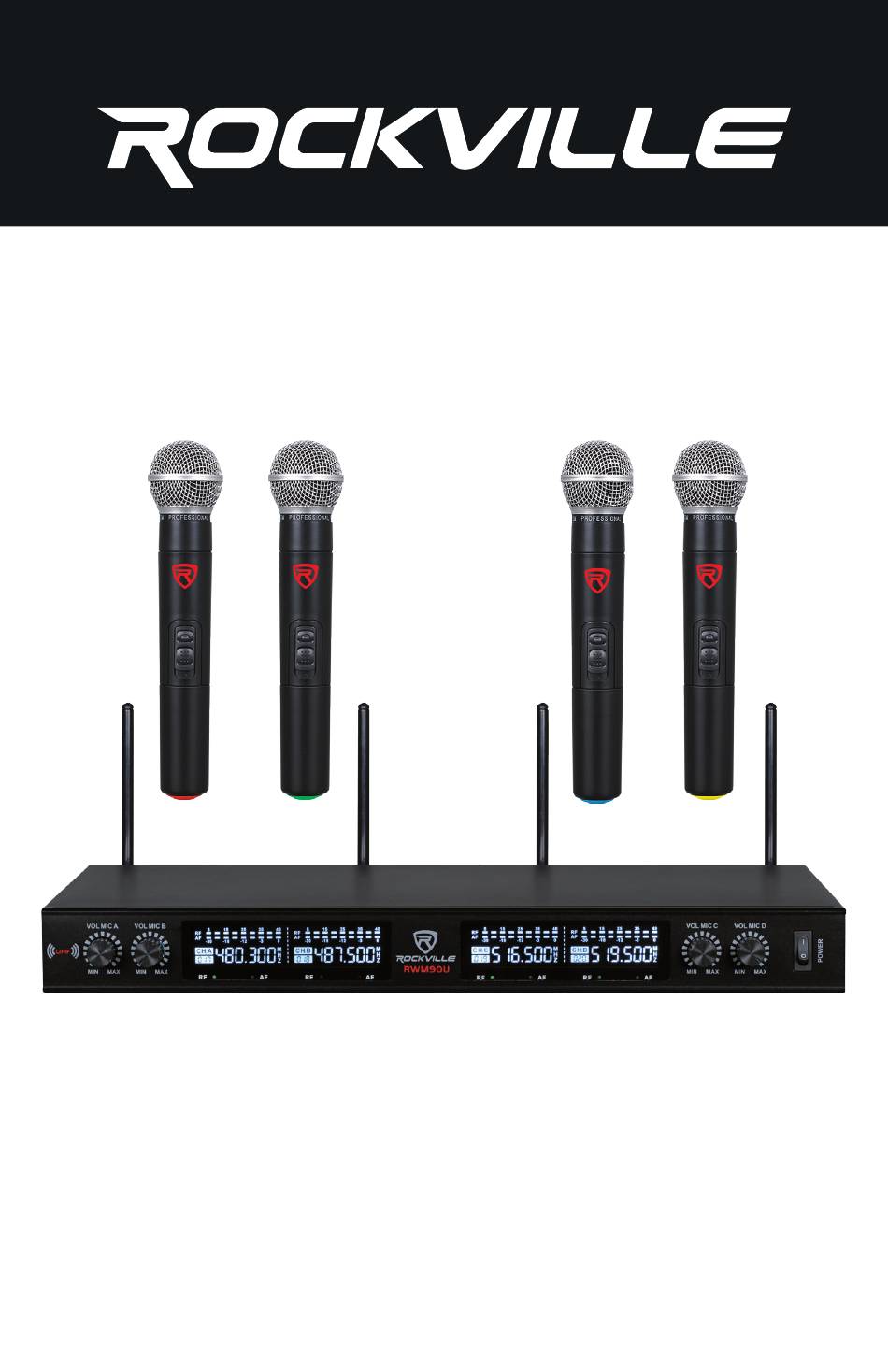

- Page 1 RWM90U High Performance Quad Wireless Microphone System OWNER’S MANUAL...
- Page 2 Thank you for purchasing this Rockville RWM90U UHF Quad Wireless Micro- phone System. Please read this owner’s manual carefully for proper use of your Rockville RWM90U UHF Quad Wireless Microphone System. Should you need technical assistance please call our technical help line at 1-646-758-0144, Monday through Friday, 9am...
-
Page 4: Table Of Contents
Table of Contents Specs ......................Receiver (Front) ..................... Receiver (Back) ....................Microphones ....................Setup and Operation ..................Troubleshooting ....................FCC Statement.................... -
Page 5: Specs
Specs FEATURES • High performance wireless microphone system • Includes transmitter with 4 high sensitivity, unidirectional, wireless, handheld cardioid microphones • High sensitivity, unidirectional, wireless cardioid microphones • Color coded microphones • Featuring a dual filter design to limit feedback and interference •... -
Page 6: Receiver (Front)
Receiver (Front) a. Antenna A: MIC A b. Antenna B: MIC B c. Antenna C: MIC C d. Antenna D: MIC D e. MIC A Volume adjustment knob f. MIC B Volume adjustment knob g. RF signal LED indicator h. LCD Display: shows AF/RF signal strength, frequency, and channel i. -
Page 7: Microphones
Microphones a. Microphone windscreen b. Power LED indicator c. Power on/off switch d. Battery compartment... -
Page 8: Setup And Operation
Setup and Operation For best performance of the wireless microphone system you should make sure that you run the cable from the receiver output (XLR or 1/4 ̋ output) into a micro- phone input on a powered speaker or mixing board. If you run it right into a line level input then the audio volume level output of the microphone(s) will drop sig- nificantly. -
Page 9: Troubleshooting
Troubleshooting Problem Soluton No sound or faint • Verify all sound system connections or adjust sound channel volume as needed. • Verify that the receiver is connected to the mixer/ amplifier. • Turn on microphone. • Make sure the batteries are installed correctly. •... -
Page 10: Fcc Statement
Entrance A, Inwood, NY 11096 Hereby declares that the product Rockville RWM90U UHF quad wireless microphone kit complies with FCC rules as mentioned in the following paragraph: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 12 RockvilleAudio.com © 2019 ROCKVILLE // Features and specifications are subject to change and or improvement without notice.
