Trango Altum AC Series Installation & Quick Start Manual

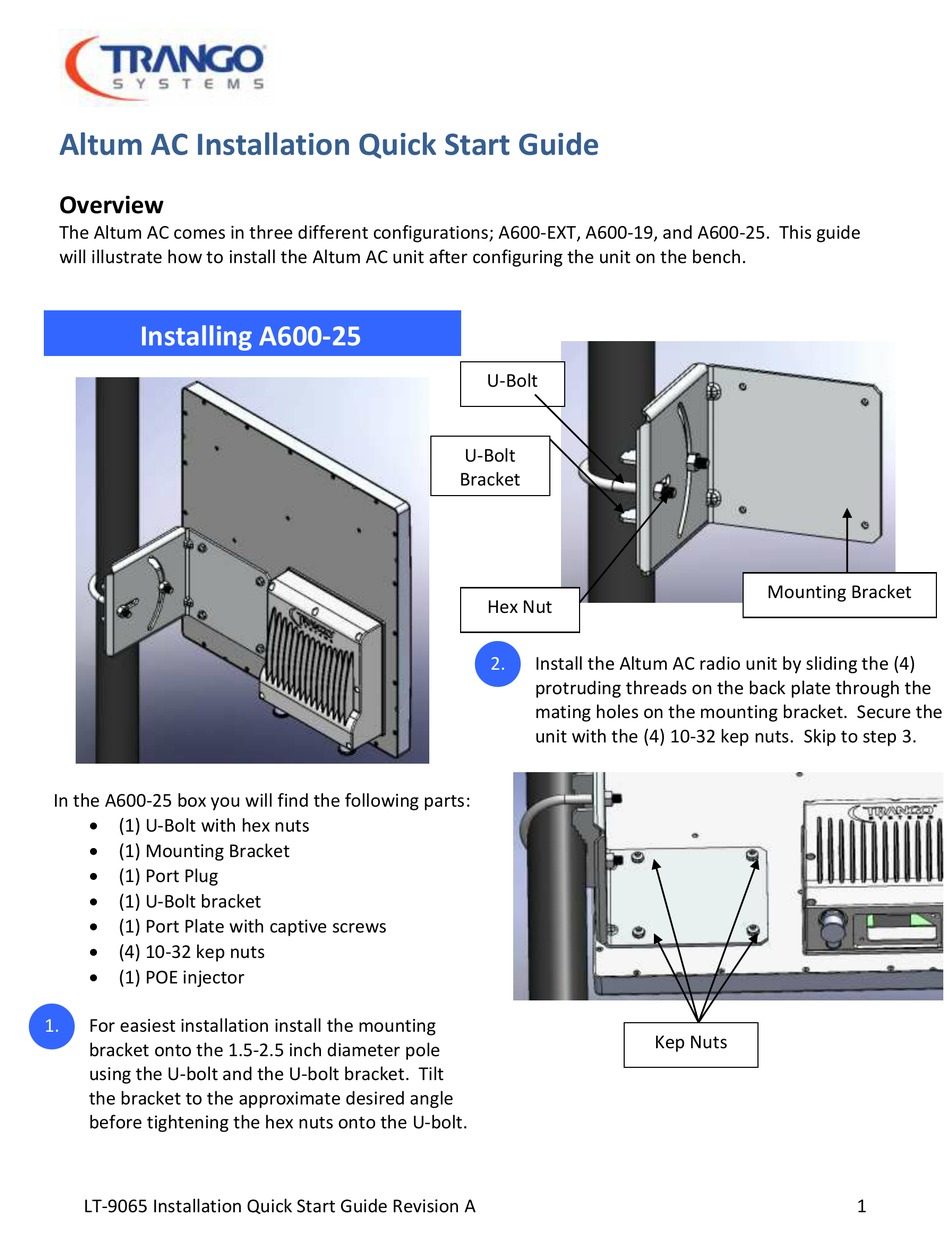

Altum AC Installation Quick Start Guide

Overview

The Altum AC comes in three different configurations; A600-EXT, A600-19, and A600-25. This guide

will illustrate how to install the Altum AC unit after configuring the unit on the bench.

In the A600-25 box you will find the following parts:

 (1) U-Bolt with hex nuts

 (1) Mounting Bracket

 (1) Port Plug

 (1) U-Bolt bracket

 (1) Port Plate with captive screws

 (4) 10-32 kep nuts

 (1) POE injector

For easiest installation install the mounting

bracket onto the 1.5-2.5 inch diameter pole

using the U-bolt and the U-bolt bracket. Tilt

the bracket to the approximate desired angle

before tightening the hex nuts onto the U-bolt.

LT-9065 Installation Quick Start Guide Revision A

U-Bolt

Bracket

Hex Nut

Install the Altum AC radio unit by sliding the (4)

protruding threads on the back plate through the

mating holes on the mounting bracket. Secure the

unit with the (4) 10-32 kep nuts. Skip to step 3.

Mounting Bracket

Kep Nuts
