Summary of Contents for START International TBC-552L

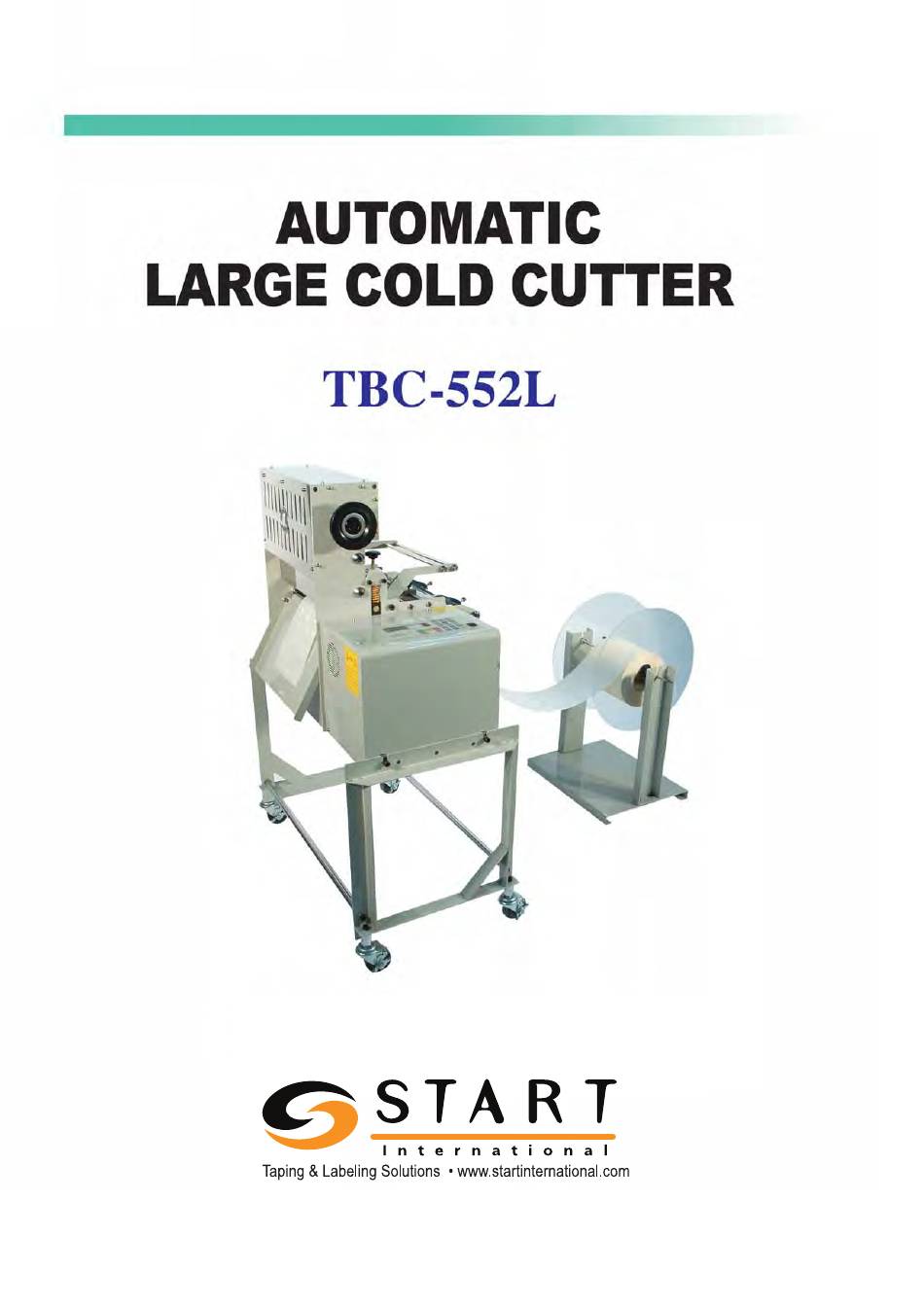

- Page 1 ® 4270 Airborn Dr. Addison, TX 75001 972.248.1999 - info@startinternational.com...
- Page 2 How to operate TBC-552L 1. An example (Cutting length : 70mm, Cutting quantity : 120 pcs) ▷ Turn on the P O W E R S W . ▷ Set cutting length. (Press the following buttons in order.) ☞ ⇒...
- Page 3 2. Key functions : Current length on display will be back to “0” at a stop. : All of current length and current q‘ty on display will be back to "0". : Moving knife only. ① to cut the material for test. ②...
- Page 4 Supply (length : 1M) (Net Weight) (Gross Weight) Width Length AC110 large 1mm～ 510×690×940 830×560×760 TBC-552L Cold /220V, 210mm 13～21 cuts material 300M (85kgs) (90kgs) 50/60Hz 4. Caution for use - Before use, please confirm the voltage and make the ground(earth) connection.
- Page 5 HOW TO ADJUST KNIFE Knife of TBC-520L/530L cuts material as like scissors. If there is a gab between upper and lower knife, there will be a problem. So if you have a cutting problem due to gab between upper and lower knife, this documents can help you.
- Page 6 At first, please lay down upper knife a little, please refer to below image. And then turn no. 5 screw to make lower knife to close to upper knife. And then make lower knife close to upper knife by turning no. 1~4 screws. After doing above steps, please test with paper and check which side of paper is not cut, and make those side of knife close to upper knife by turn proper...
- Page 7 TBC-552L Part Drawing A (Cutting Part) - 6 -...
- Page 8 TBC-552L Part List A (Cutting Part) Part No. Description Part No. Description CONTROL CASE A-28 ROLLER TENSION BRACKET A-29 SAFETY COVER SUPPORT TERMINAL A-30 SAFETY COVER TRANSFORMER A-31 ANGLE NUT CONTROL BASE A-32 LEFT FRAME CONDENSER A-33 ANGLE NUT DR BOARD...
- Page 9 TBC-552L Part Drawing B (Feeding Part) - 8 -...
- Page 10 TBC-552L Part List C (Feeding Part) Part No. Description Part No. Description SHAFT KNOB HANDLE LOWER KNIFE LOWER KNIFE FRAME STOPPER LOWER KNIFE BRACKET UPPER KNIFE MOTOR REDUCTION GEAR GEAR B-10 PRESSURE PLATE (PAD) B-11 GEAR B-12 CRANK BEARING HOUSING...
- Page 11 TBC-552L Part Drawing C (Feeding Part) - 10 -...
- Page 12 TBC-552L Part List C (Feeding Part) Part No. Description Part No. Description SHAFT HAND GRIP BOLT ROLL HANGER FRAME SHAFT BASE MATTER SHAFT - 11 -...
- Page 13 Trouble-shooting of TBC-50 series Troubles Appicable model Causes & Measures - Check if electric cord is connected well. No power supply All models - Check if the fuse blows out or not. - Check if there is inserted any alien substance in roller.
- Page 14 Please contact following address for further information. ® 4270 Airborn Dr. Addison, TX 75001 972.248.1999 - info@startinternational.com www.STARTinternational.com Please do not disassemble / modify machine or its part without any permission. If you disassemble / modify machine or its part, you cannot receive warranty/after-sales service.
