King Industrial EXCELSIOR XL-125 Instruction Manual

Router lift with brake

Hide thumbs

BY/PAR:

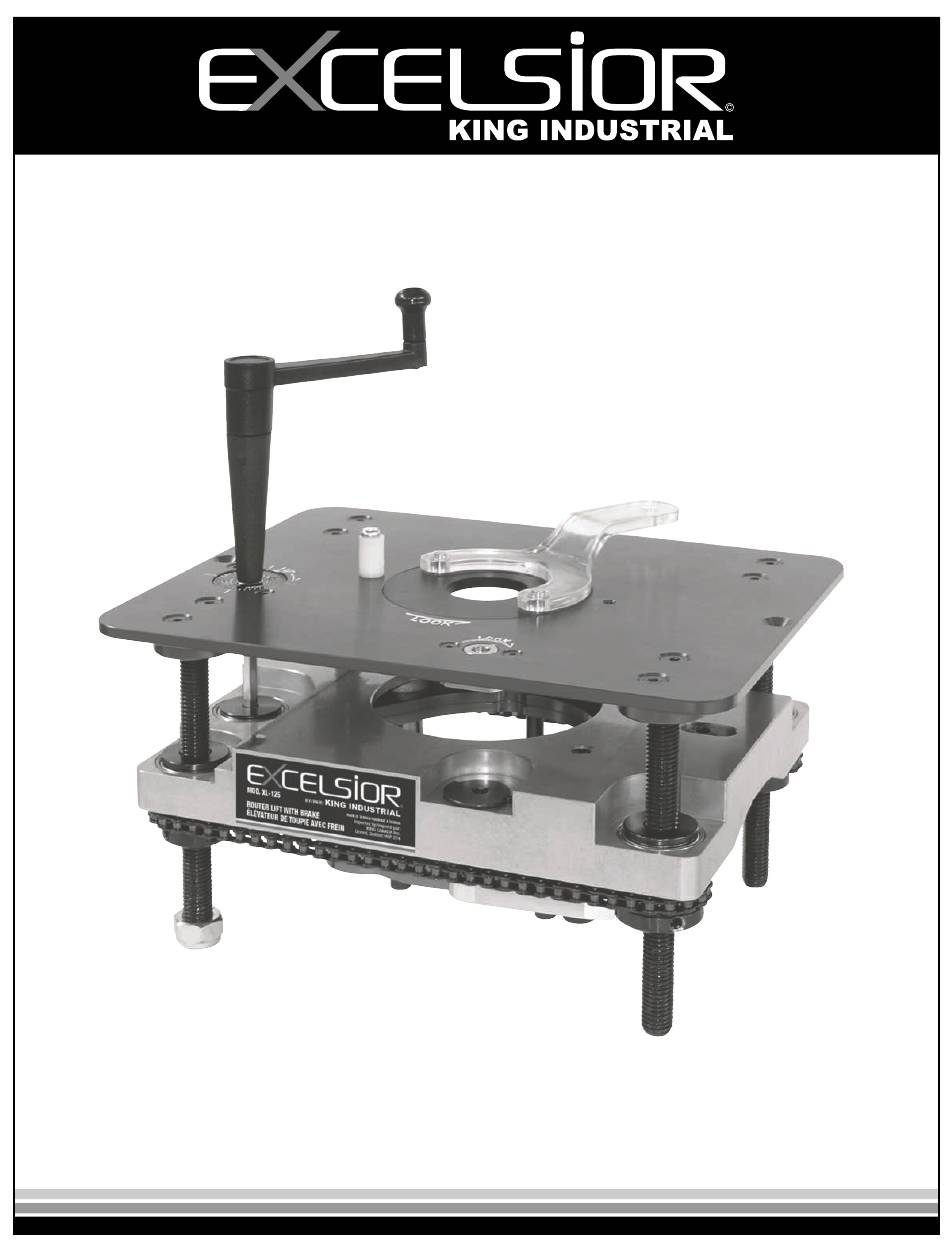

ROUTER LIFT WITH BRAKE

MODEL: XL-125

INSTRUCTION MANUAL

Table of Contents

Need help?

Do you have a question about the EXCELSIOR XL-125 and is the answer not in the manual?

Questions and answers

Summary of Contents for King Industrial EXCELSIOR XL-125

Page 2 WARRANTY INFORMATION 2-YEAR kING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR THIS ROUTER LIFT FOR NON-COMMERCIAL USE. PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list. LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards.
Page 3 1. kNOW YOUR TOOL glasses only have impact resistant lenses, thet are NOT safety glasses. Also use a face or dust mask if cutting Read and understand the owners manual and labels affixed to operation is dusty. the tool. Learn its application and limitations as well as its 12.
Page 4 GETTING TO KNOW YOUR ROUTER LIFT 1. CRANk HANDLE. Adjusts the height of the router bit installed in 7. bRAkE. Insert crank handle and turn clockwise to lock the the router under the aluminum top plate. current position of the lifting carriage and router fixing bracket assembly.
Page 5 ASSEMBLY & ADJUSTMENTS ASSEMbLY This Table Lift is designed to fit Excelsior 32” x 24” Cast-iron Table (model XL-075) or Excelsior 32” x 24” MDF Table (model XL-049). For the purposes of this manual, assembly and adjustments of the Router Lift will be shown with the 32”...
Page 6 ASSEMBLY & ADJUSTMENTS INSTALLING ROUTER TO ROUTER LIFT continued... 3) Using an 8mm hex. key, turn the cap screw (A) Fig.5 counterclockwise to open the fixing bracket (B). The two hex. nuts (C) help spread the fixing bracket. Only open fixing bracket as needed. 4) Insert the router body (A) Fig.6 into the fixing bracket (B).
Page 7 ADJUSTMENTS REMOVING TAbLE INSERT 1) The Router Lift comes with a table insert wrench (A) Fig.9 and it is used to lock or remove the table insert (B) from the Router Lift top plate. Posi- tion the two pins of the wrench inside the two holes in the table insert. Turn wrench clockwise to unlock and remove the table insert, turn wrench counterclockwise to lock table insert to top plate.
