BY/PAR:
ROUTER TABLE FLOOR STAND WITH SWITCH
MODEL: XL-085
INSTRUCTION MANUAL
COPYRIGHT © 2017 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXCELSIOR XL-085 and is the answer not in the manual?

Questions and answers

Summary of Contents for King Industrial EXCELSIOR XL-085

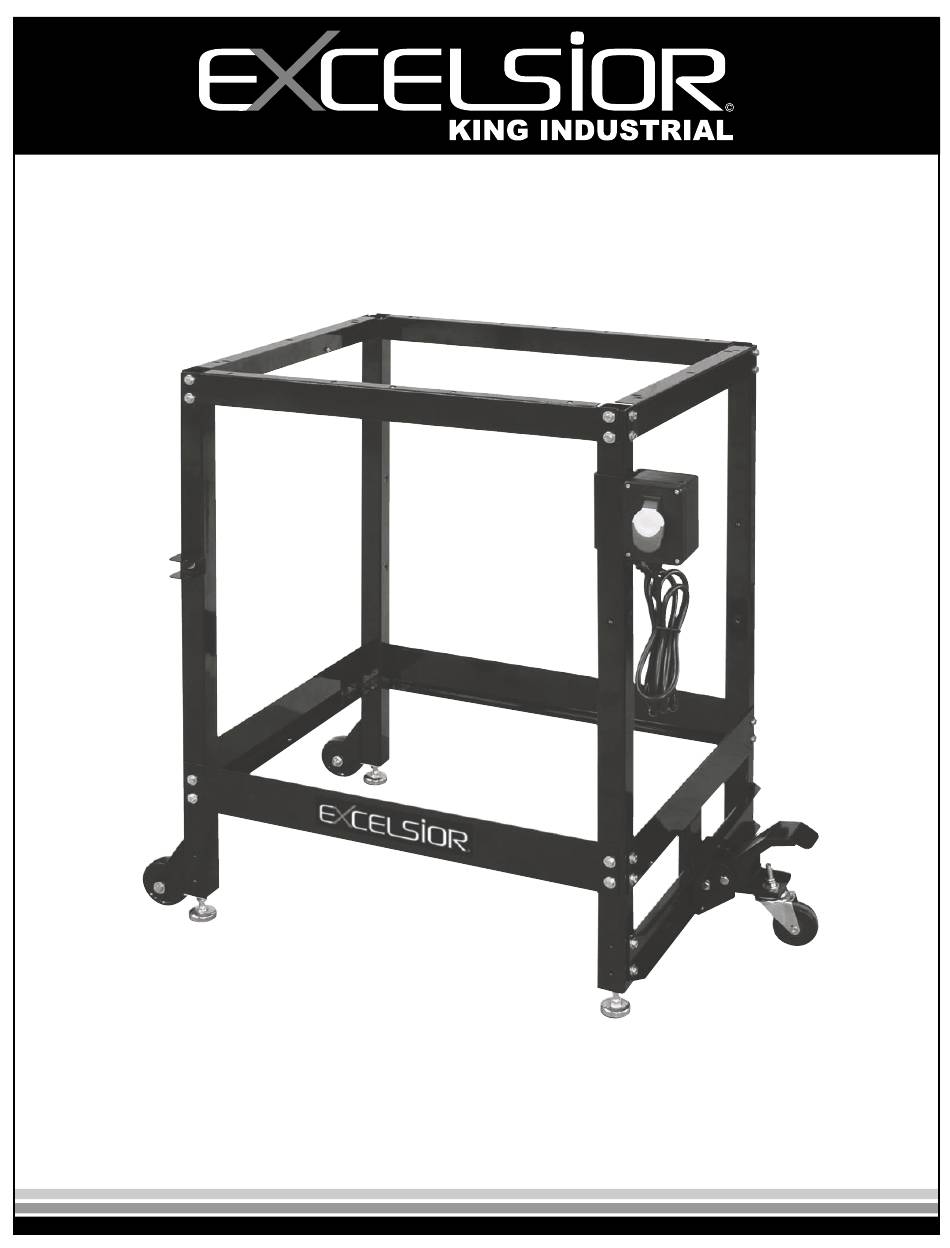

  • Page 1 BY/PAR: ROUTER TABLE FLOOR STAND WITH SWITCH MODEL: XL-085 INSTRUCTION MANUAL COPYRIGHT © 2017 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
  • Page 2 WARRANTY INFORMATION 2-YEAR kING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR THIS FLOOR STAND FOR NON-COMMERCIAL USE. PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list. LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards.
  • Page 3 1. kNOW YOUR TOOL glasses only have impact resistant lenses, thet are NOT safety glasses. Also use a face or dust mask if cutting Read and understand the owners manual and labels affixed to operation is dusty. the tool. Learn its application and limitations as well as its 12.
  • Page 4 GETTING TO KNOW YOUR FLOOR STAND 1. PLASTIC WHEEL. Part of the mobile base system. prevent unauthorized use. 2. CRANk HANDLE STORAGE. This storage bracket is provided 9. SWITCH POWER CORD. to store the crank handle which comes with the Router Lift (mod. 10.
  • Page 5 ASSEMBLY ASSEMbLY This Floor stand comes with two different brace lengths and styles. The 4 short braces are for the sides. All narrow braces are for the top of the stand, and the wider braces are for the bottom. ASSEMbLING LEG ASSEMbLIES 1) Locate the 4 identical legs (A) Fig.1 and install an adjustable leveling foot (B) on each leg as shown.
  • Page 6 ASSEMBLY ASSEMbLING MObILE bASE COMPONENTS continued... 3) Secure the bracket (A) Fig.5 to the bottom cross brace (B) using a cap screw, washer (C) and a hex. nut underneath the bracket (not shown). FIGURE 5 4) Assemble both wheel mounting brackets (A) Fig.6 to the second leg assembly (B) using 2 cap screws and washers (C) for each bracket.
  • Page 7 ASSEMBLY INSTALLING SAFETY SWITCH TO LEG 1) This floor stand comes with a safety switch which normally is installed to the front right side leg of the stand. Position the switch bracket (A) Fig.8 over the front right leg (B) as shown. Secure the switch bracket using 2 long pan head screws (C).
