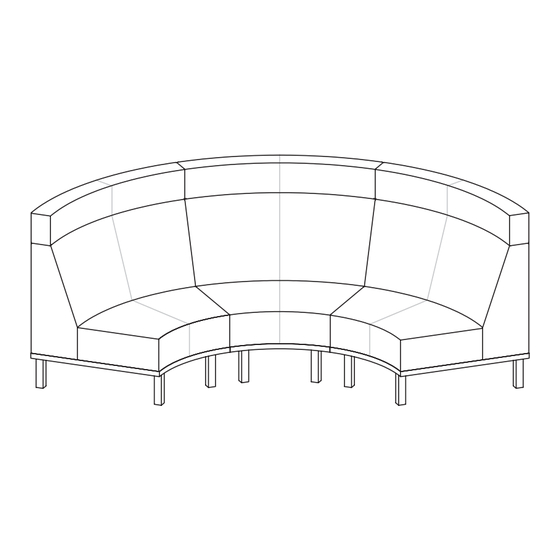

CONNECT
Recommended Tools
Screw Gun
#2 & #3 Phillips Screw Drivers
Package Contents
Upholstered Unit
Step 1
Attach the legs to the bottom of the uphol-
stered unit using 1 inch long large wood
screws. The base will have pilot holes to locate
the screws.
Notice To Installers: Failure to comply with installation instructions will compromise the safety, durability and performance of this product, which may risk injury to the user of this
product and/or diminish the product life cycle. Jasper Group assumes no liability in these instances.
#2 & #3 Phillips Head Bits
Legs
jsifurniture.com
812.482.3204
800.457.4511
812.482.1548
Hardware Used
225 Clay Street / PO Box 231
O
Jasper, Indiana 47546
F
Installation Instructions
Unit Assembly
1-1/4 " Wood Screw
1 " Zinc Wood Screw
Linking Hook & Latch
1" Long Screws
Page 1 of 2
Form No. INST-CT001
5/1/16
