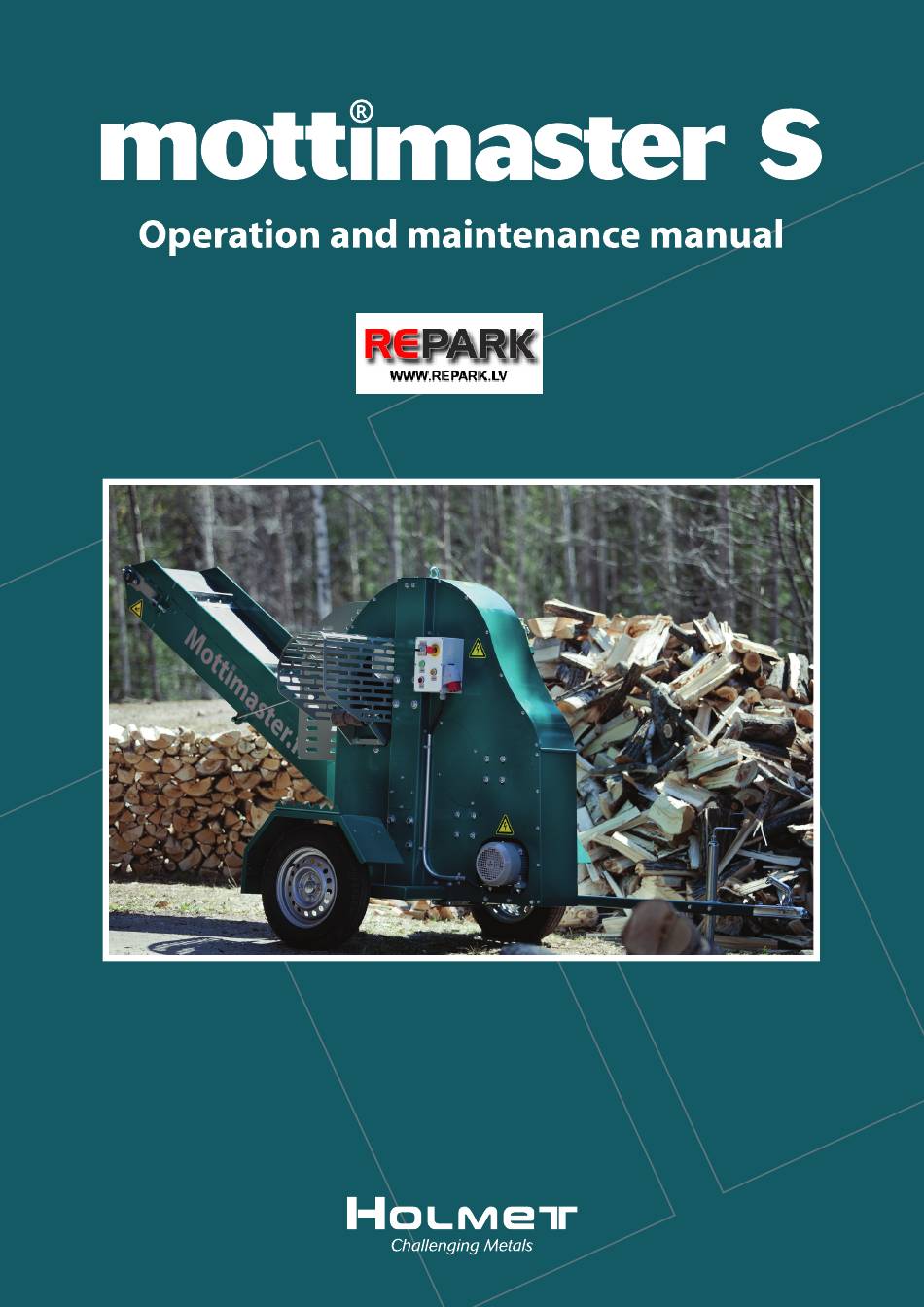

Summary of Contents for HOLMET mottimaster S
-
Page 3: Table Of Contents
Table of contents GENERAL INFORMATION ...................... 3 EC DECLARATION OF CONFORMITY ................. 4 OPERATION AND MAINTENANCE MANUAL ..............5 TRANSPORTING, OPERATING AND STORING..............6 Transporting ............................. 6 Storing .............................. 6 Commencing operation ........................6 Operating the machine ........................7 Starting the machine........................7 Reversing the machine ......................... -
Page 5: General Information
1. GENERAL INFORMATION To the operator: This device was designed and manufactured for processing firewood. Mottimaster S simultaneously cuts and splits wood . The maximum diameter of wood to be processed is 22 cm. With hard wood types, such as oak, rowan, beech, maple or similar, the maximum diameter is 15 cm. -
Page 6: Ec Declaration Of Conformity
HOLMET OY Keskikankaantie 27, FI-15860 HOLLOLA, FINLAND hereby declares that the machine Mottimaster S that has been brought to the market conforms to the Machinery Directive 98/37/EC, to related amendments and to the applicable national decrees (Government Decree 1314/1994). The following unified standards have been applied to the design of the machinery: SFS-EN ISO 12100. -
Page 7: Operation And Maintenance Manual
3. OPERATION AND MAINTENANCE MANUAL In this manual, safety-related issues are indicated with the following symbols. Warning symbol The text highlighted by this symbol always includes a safety-related warning. Study the text carefully. General caution symbol The text highlighted by this symbol always includes information related to the safe operation and maintenance of the device. -
Page 8: Transporting, Operating And Storing
4. TRANSPORTING, OPERATING AND STORING Transporting The machine can be transported with the conveyor raised in the transport position. The machine must not be towed on public roads, unless it is registered. The conveyor must always be locked to the machine's body with a mechanical lock. Transporting the machine by means of the winch or with the conveyor lowered is strictly prohibited. -
Page 9: Operating The Machine
Operating the machine Position the device on a sturdy, solid base and ensure that it cannot move. Before commencing operation, ensure that all guards are in place and all bolts and nuts have been tightened. Before use, the operator must study this operation manual. The operator must ensure that no children or other unauthorised people can access the working area during operation. -
Page 10: Stopping The Machine
(over 20 metres), the conductor surface must be increased. • If your electrical system features fault current protection, it will most likely trip because the Mottimaster S includes a short circuit motor. If your electrical system includes fault current protection, contact an electrician to remedy the problem. -
Page 11: Maintenance And Adjustment Instructions
5. MAINTENANCE AND ADJUSTMENT INSTRUCTIONS Maintenance targets Disconnect the electrical cord from the socket before performing any maintenance, adjustment or repair measures. Daily maintenance In private use, roller chains must be lubricated twice a year or once every 100 hours of use. Always check the chain tension before commencing work. -
Page 12: Adjusting Blade Clearance
Adjusting blade clearance In order to ensure sufficient work safety and cutting power, the clearance between the cutting blade and counter blade must always be less than 2 mm. Dull blades must be sharpened and worn out blades must always be replaced with new ones. If the blade clearance suddenly increases, first check bolt tightness and machine condition. -
Page 13: Conveyor
6. CONVEYOR Belt adjustment It is recommended that the tension and path of the belt is checked each time before operating the machine. This extends the belt’s lifespan. Correct belt tension is important. If the belt is loose, it wears out rapidly. On the other hand, an excessively tight belt wears out the conveyor bearings quicker than normal. -
Page 14: Safety Instructions
Exercise extreme caution when transporting the machine on bumpy roads. Do not transport the machine on public roads. The maximum towing speed in closed areas is 40 km/h. Holmet Oy, Keskikankaantie 27, 15860 HOLLOLA FINLAND, tel +358 (0)20 765 9860, fax +358 (0)20 765 9861, VAT FI1923887, info@holmet.fi, www.mottimaster.fi... - Page 26 Holmet Oy, Keskikankaantie 27, 15860 HOLLOLA FINLAND, tel +358 (0)20 765 9860, fax +358 (0)20 765 9861, VAT FI1923887, info@holmet.fi, www.mottimaster.fi...
