Soundoff Signal ULTRALITE PLUS EL3PD02A00 Series Quick Start Manual

ULTRALITE PLUS
EXTERIOR WARNING BAR
2 MODULE BAR
EL3PD02A00(x) - 12V
EL3PD02A00(x)-24 - 10-30V
Please see reverse for
Technical Specifications

Important Information:

• Warning devices are strictly regulated and governed by Federal, State and Municipal ordinances.
These devices shall be used ONLY on approved vehicles. It is the sole responsibility of the user of these
devices to ensure compliance.
• DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to your vehicle
Owner's Manual for the location of any air bag deployment zones.
• DO NOT connect this device to a strobe power supply. This product is self-contained and does not
require an external power supply.

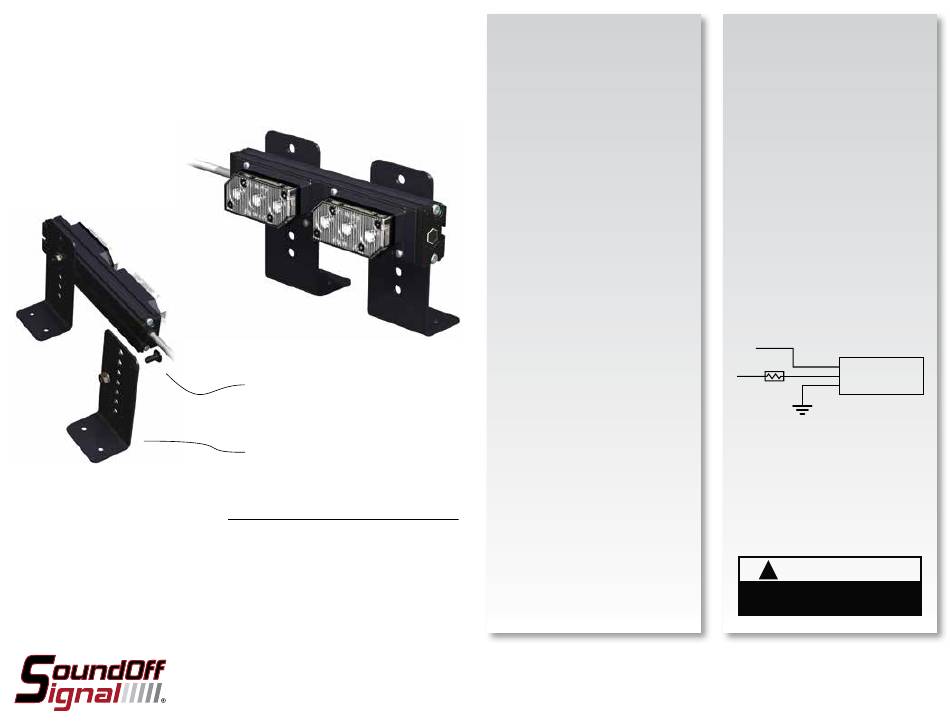

SUPPLIED BAR MOUNTING HARDWARE
UNIVERSAL BRACKET
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product please visit our website at www.soundoffsignal.com and select the "Warranty & Returns"
link along the left column of our home page. If you have questions regarding this product please contact Technical Services, Monday - Friday, 8 am to 5 pm at 1.800.338.7337, press #4 to
skip the automated message. Questions or comments that do not require immediate attention may be emailed to techsupport@soundoffsignal.com.
1.800.338.7337. / www.soundoffsignal.com / Thank you for trusting us with your safety!

INSTALLATION:

Before starting the installation make
certain you have the correct bracket
for your application. A universal Deck/
Dash mount bracket is supplied. For
other mounting brackets, see product
literature or visit our website.
Install the UltraLITE by following the
assembly instructions provided with the
brackets and check for security.
Important: DO NOT over tighten
mounting screws or nuts. This could
cause permanent damage to the light or
bracket. Use appropriate hardware for
mounting.
Universal bracket shown is supplied
but mounting screws are customer
supplied.

OPERATION:

1. Connect black wire to ground.
2. Connect red wire to +12Vdc through
5A fuse.
3. Apply +12Vdc to white wire for less
than one second (momentary) to
move forward one pattern.
4. Apply +12Vdc to white wire for one
second (until the lights dim) to move
to the first pattern.
5. Apply +12Vdc to white wire for more
than two seconds (until the lights turn
off) to turn off the UltraLITE.
6. To turn the unit back on, apply +12Vdc
to the white wire momentarily.
WHITE
+12Vdc
RED
2 MODULE UltraLITE
BLACK
5A FUSE
WARNING
!
This product contains high intensity LED devices.
To prevent eye damage, DO NOT stare into the
light beam at close range.
EL3PDØ2AØØ(x) 0318
