Summary of Contents for OPM PATRIOT VAC-1

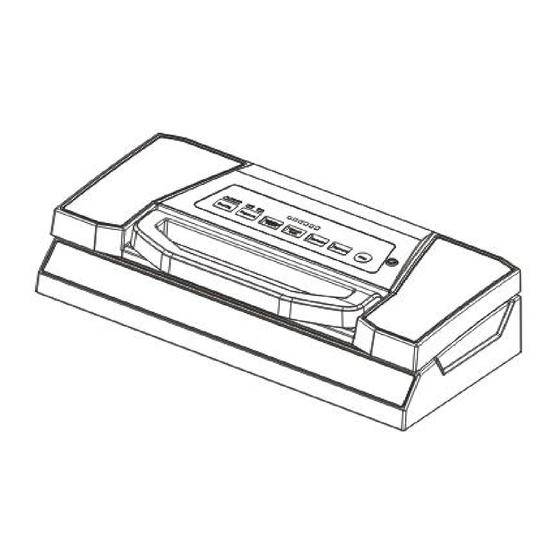

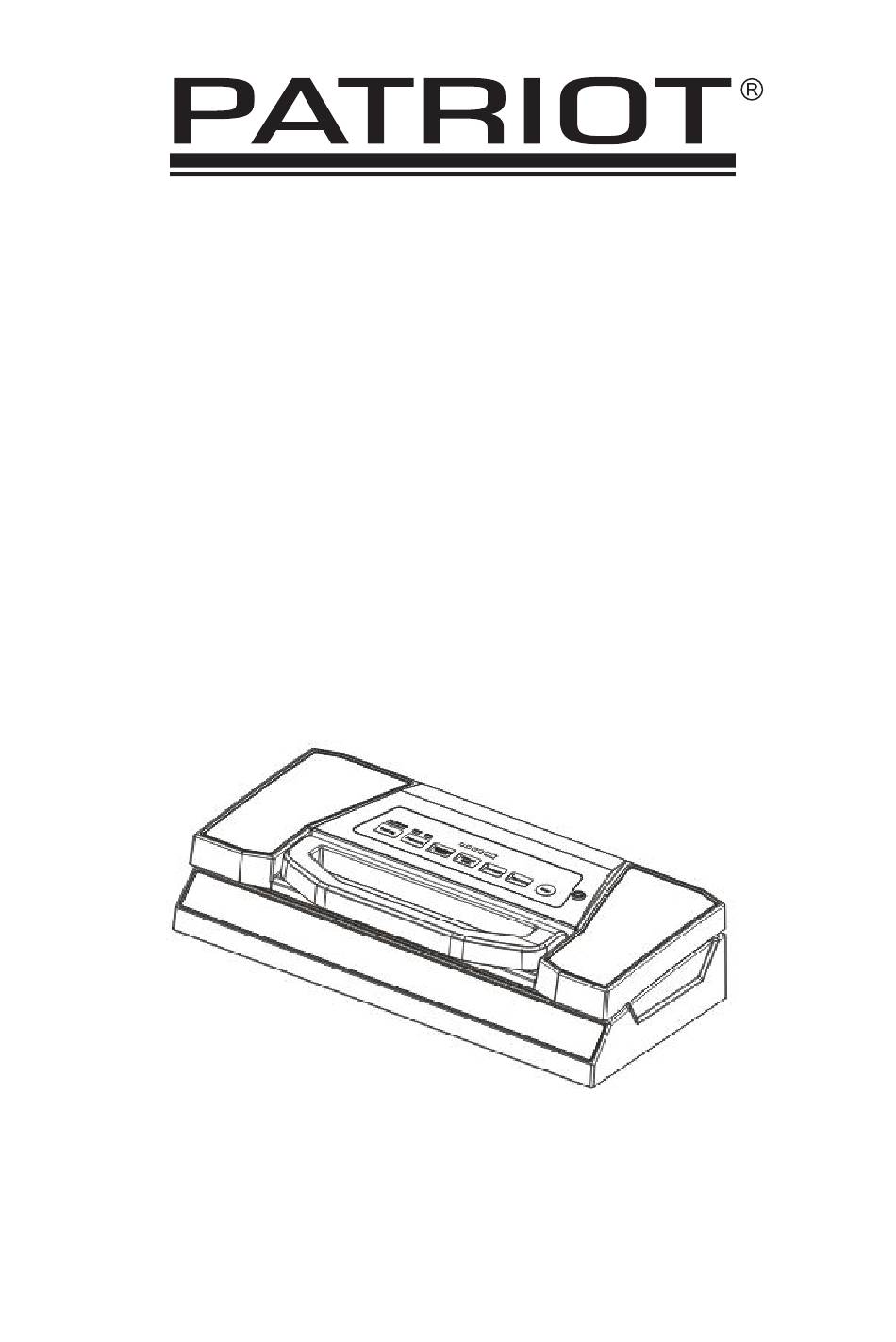

- Page 1 VAC-1 VACUUM SEALER INSTRUCTIONS OPM International Oy - 1 - Niinistonkatu 1 FI-05800 Hyvinkaa Finland www.opm.fi...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using this electrical appliance, safety precautions should always be observed, including the following: READ ALL INSTRUCTIONS 1. Carefully read all of the instructions before using this appliance and save for future reference. 2. Before plugging cord into wall outlet, or disconnecting, make sure that the cover of the machine is in unlocked condition, and unplug from outlet when not in use or before cleaning. - Page 3 a heat source. 12. It’s better not to use an extension cord with this unit. However, if one is used, it must have a rating equal to or exceeding the fating of this appliance. 13. When disconnect, to avoid any injury, please unplug by grasp the plug, not the cord.
-
Page 4: Construction And Functions
CAUTION: SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLY AB:1MIN PER CYCLE CONSTRUCTION AND FUNCTIONS 1. Vac&seal / Cancel: This button has two functions depending on the machine status: At stand-by condition, it starts the automatic operation of vacuuming the bag and then automatically seals the bag when vacuum is complete;... - Page 5 vacuum pressure is desired. Default setting is normal and high vacuum pressure. 5.Canister: To start vacuuming for canisters, jar lids, wine stoppers or other accessories through a hose. 6. Manual Seal : This button provides two functions: To seal the open end of a bag without vacuuming air suction, used to ...
- Page 6 - 6 -...
- Page 7 11.Vacuum chamber: Position the open end of the bag inside the chamber, draws air out of bag and catches any liquid overflow from the bag. 12. Sealing strip: Place the bag to be sealed over this strip.,Clean and dry or replace it when distorted or broken.
-
Page 8: Operating Instructions
OPERATING INSTRUCTIONS I. Making a bag with bag roll 1. Open the top cover . Fig.1 Fig.1 2. Make sure the bag cutter is on one end of the cutter rack, Then put the cutter rack to the back– Fig.2 Fig.2 3.Pull out the bag to the suitable length you want–... - Page 9 6. Put one end of the bag on top of the sealing Element into the bag fixture– Fig.5 Fig.5 7. Close the top cover and press tightly till you hear it click in place on both sides– Fig.6 Fig.6 8. Press “Maunal Seal” button to start sealing the bags -Fig.7 Fig.7 9.Press the handle to open the cover and take the bag...
-
Page 10: Vacuum Packaging With A Bag
II. Vacuum packaging with a bag 1. Put the items inside the bag. Use only the special designed vacuum bags supplied by us with vacuum channels. 2. Clean and straighten the open end of the bag, make sure no dust, wrinkle or ripples. - Page 11 inside the bag and switch the “ MANUAL SEAL” button immediately when the desired vacuum pressure is achieved. The pump will stop and change to heat-seal the bag. 7.The vacuum packaging is done. Rock the handle to open the cover and take out the packed bags –...
- Page 12 2. Press the Manual Seal button when the Vacuuming have been completed, the unit start to seal the bag automatically—Fig.2 Fig.2 Ⅳ. Vacuum package in a Canister & Vacuum Bowl 1.Wipe canister cover, canister base and ensure they are clean and dry. 2.Put the items into the canister and do not fill up too full so that the cover can be in good contact with the canister bowl rim.
- Page 13 6. Take out the hose tube from the canister or bowl immediately first after the job is completed. Note: When moist food are under vacuuming, moisture will be stored in adaptor. Remember to clean up the adaptor if there is water before vacumming.
-
Page 14: Cleaning And Maintenance
Ⅵ.Cord storage box 1.Put the power cord into the storage box when not use the machine which is in the back of the machine. Do not wrap the cord around the appliance. CLEANING AND MAINTENANCE Vacuum sealer 1. Always unplug the unit before cleaning. 2. -
Page 15: Storing Your Vacuum Sealer
Accessories Washing all vacuum accessories in warm water with a mild dishwashing soap, But do not immerse cover in water. 1. Canister bases (not lids) are top rack dishwasher safe. But canister cover should be wiping down with a damp cloth. 2. - Page 16 Check if the gasket is deformed? If deformed, replace it and try again. Check if the bags is placed into the vacuum chamber? If not, please put the edge of bags into the vacuum chamber. Check if the food with sharp angel? Seal function is If yes, please packing the angel with safe paper before vacuuming good but can not...
-
Page 17: Disposal Of The Device
change it for a new one. 5. Check the function of the vacuum sealer. 6. Make sure the rim of the canister is clean enough. If all the above situations are excluded, please contact with the appointed service agency. DISPOSAL OF THE DEVICE PROTECTION OF THE ENVIRONMENT At the end of the life of your product, it should go to a specially adapted waste-recycling centre.
