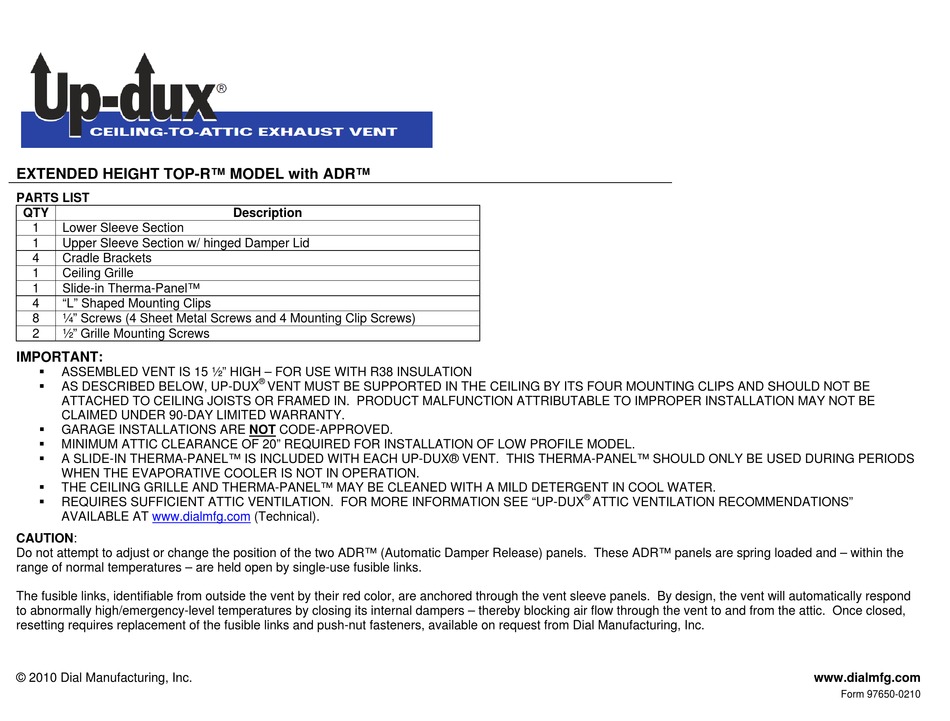

EXTENDED HEIGHT TOP-R™ MODEL with ADR™
PARTS LIST
QTY
1 Lower Sleeve Section
1 Upper Sleeve Section w/ hinged Damper Lid
4 Cradle Brackets
1 Ceiling Grille
1 Slide-in Therma-Panel™
4 "L" Shaped Mounting Clips
8 ¼" Screws (4 Sheet Metal Screws and 4 Mounting Clip Screws)
2 ½" Grille Mounting Screws
IMPORTANT:

ASSEMBLED VENT IS 15 ½" HIGH – FOR USE WITH R38 INSULATION

AS DESCRIBED BELOW, UP-DUX
ATTACHED TO CEILING JOISTS OR FRAMED IN. PRODUCT MALFUNCTION ATTRIBUTABLE TO IMPROPER INSTALLATION MAY NOT BE
CLAIMED UNDER 90-DAY LIMITED WARRANTY.

GARAGE INSTALLATIONS ARE NOT CODE-APPROVED.

MINIMUM ATTIC CLEARANCE OF 20" REQUIRED FOR INSTALLATION OF LOW PROFILE MODEL.

A SLIDE-IN THERMA-PANEL™ IS INCLUDED WITH EACH UP-DUX® VENT. THIS THERMA-PANEL™ SHOULD ONLY BE USED DURING PERIODS
WHEN THE EVAPORATIVE COOLER IS NOT IN OPERATION.

THE CEILING GRILLE AND THERMA-PANEL™ MAY BE CLEANED WITH A MILD DETERGENT IN COOL WATER.

REQUIRES SUFFICIENT ATTIC VENTILATION. FOR MORE INFORMATION SEE "UP-DUX
AVAILABLE AT www.dialmfg.com
CAUTION:
Do not attempt to adjust or change the position of the two ADR™ (Automatic Damper Release) panels. These ADR™ panels are spring loaded and – within the
range of normal temperatures – are held open by single-use fusible links.
The fusible links, identifiable from outside the vent by their red color, are anchored through the vent sleeve panels. By design, the vent will automatically respond
to abnormally high/emergency-level temperatures by closing its internal dampers – thereby blocking air flow through the vent to and from the attic. Once closed,
resetting requires replacement of the fusible links and push-nut fasteners, available on request from Dial Manufacturing, Inc.
© 2010 Dial Manufacturing, Inc.
Description
®
VENT MUST BE SUPPORTED IN THE CEILING BY ITS FOUR MOUNTING CLIPS AND SHOULD NOT BE
(Technical).
®
ATTIC VENTILATION RECOMMENDATIONS"
www.dialmfg.com
Form 97650-0210
