Oceanic Systems 5302 Installation Instructions

BILGE DETECTOR / SWITCH
Part Numbers: 5302
INSTALLATION INSTRUCTIONS
ELECTRONIC SWITCH FOR THE BILGE PUMP
This electronic switch permits the bilge pump to be switched on in the presence of water.
The advantages are:
● Operation managed by microcontroller.
● Advanced digital filter to distinguish the pressnce of water.
● Extended power supply range.
● Remote indication of operation status by LED or remote control panel (optional).
● Manual remote pump switch-on by button or remote control panel (optional).
● Signal for prolonged bilge pump switch on (if LED or remote control panel is installed).
● Protection against excessive battery rundown.
● Switch-on/switch-off delay to avoid false switch-on/switch-off cycling of the pump caused by the roll
of the boat.
● Functioning over a wide range of environmental temperatures.
● Resin-coated watertight casing.
● Easy installation
INSTALLATION
BEFORE USING THE 5302, READ THIS INSTRUCTION MANUAL CAREFULLY. IF IN DOUBT, CONTACT YOUR
NEAREST OCEANIC SYSTEMS RETAILER OR CUSTOMER SERVICE.
Oceanic Systems electronic switch for the bilge pump has been designed and constructed for the purposes
described in this instruction manual. The Oceanic Systems company shall accept no responsibility for direct or
indirect damages caused by improper use of the instrument, or by incorrect installation or by possible errors in
this manual.
ANY TAMPERING WITH THE 5302 BY UNAUTHORIZED PERSONS WILL VOID THE GUARANTEE.
THE PACKAGE CONTAINS: 5302 - user's manual.
INSTALLATION OF THE SWITCH FOR BILGE PUMPS
Install the right 5302 for the maximum current rating of the pump under work conditions.
Install the 5302 in vertical position with the power supply cable facing upwards and then fasten it to the support
by screwing two screws into the two lateral slots. These two slots permit the correct adjustment of the sensors'
height as regards the draught of the pump. Adjust this height in such way that a complete drainage of the
compartment occurs during the 20 seconds of pump disabling delay.
WARNING: If the 5302 must be fastened to electrically conductive metal walls, particular attention must be paid
to the fastening screws (and any washers/brackets used),which must be made in non-electrically conductive
material.
INSTALLATION

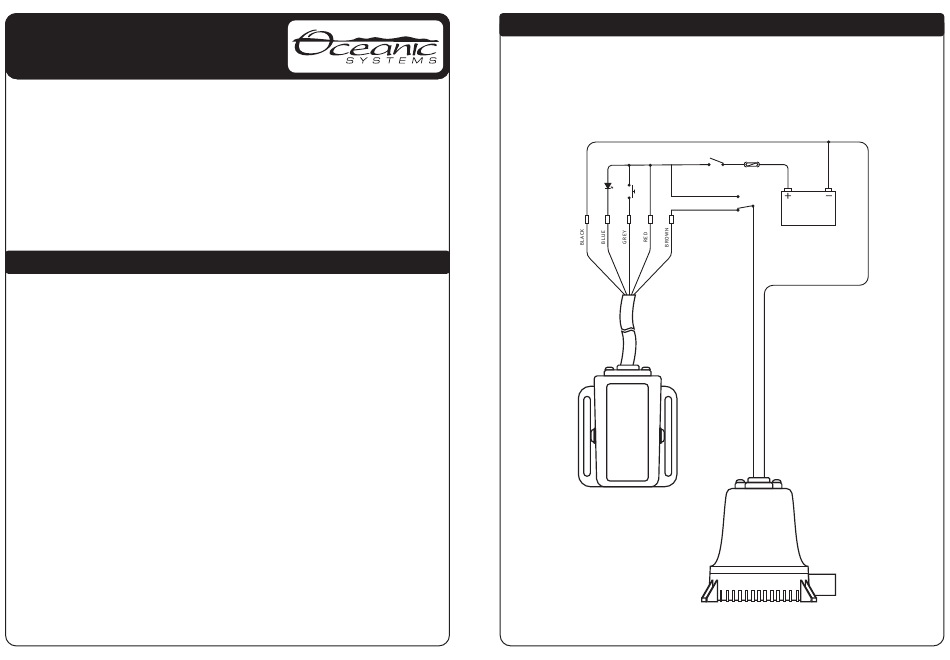

ELECTRIC CONNECTIONS
● Before connecting power supply to the 5302, make sure that all the electrical connections are correct.
● Insert a fast-acting fuse of a value adequate to the maximum current absorption value of the bilge pump on the
power supply line.
● The joins between the cables leaving the 5302 and the electric system must be watertight or housed inside a
watertight container. The degree of tightness (IP rating) must be selected as required by the work environment.
● The installation of the button option is only possible in conjunction with the Led option.
ORMATION
(1) (1)
(2) (2) (2) (2) (2)
A= Direct operation
of the pump
B= Operation by
means of PN
(1) Optional
(2) Watertight joints
SWITCH
FUSE
A
B
BATTERY
