Summary of Contents for KAP ROiK-10
- Page 1 Instruction Manual ROiK-10 ANDROID NAVIGATION DATE. 2019.02.25 Korea Auto Parts www.kaptrade.com...
- Page 2 COMPONENTS ROiK-10 Power Cable AV Cable External GLONASS RGB OUT Cable GPS Antenna Capacitive Touch Cable Resistor Touch Cable Speaker WiFi/BT Antenna x 2 LVDS OUT HDMI Cable CVBS OUT Cable...
- Page 3 SPEC ※ ANDROID Android 7.1.2(Nougat) Six-Core 64bit Server Class Cortex-A72 Core @2.0Ghz, Mali-T860 Quad-Core GPU (Total Ten-Core) H.264/H.265/VP9 up to 4Kx2K@60fps (4K Video) Memory 2GB DDR3 USB2.0 High Speed Port x 2 USB 3.0 USB3.0 5.0Gbps Port x 1 Wireless 2.4GHz/5GHz Dual-Band WiFi, Support 802.11a/b/g/n/ac, Bluetooth 4.1 Ublox8 GPS...
-
Page 4: Dip S/W Information
DIP S/W INFORMATION Pin No. ANALOG RGB OUT DIGITAL LVDS OUT / CVBS OUT SW - 1 GPS Power from ROiK-10 GPS Power Self SW - 2 Mode SW Pin No. Capacitive Touch Resistive Touch, UART Touch Mode SW - 1 Mode SW –... -
Page 5: Connector Pin Assignment
CONNECTOR PIN ASSIGNMENT – POWER / AV Yellow Black Power Cable BATTERY Power ACC 12V IN (POWER/CAN) POWER AV/IN OUT AV Cable 9 11 13 15 17 19 21 23 (AV IN/OUT) 8 10 12 20 22 White White Blue White Yellow Black... -
Page 6: Screen View
SCREEN VIEW ※ Screen Size : 1280px X 720px ※ Screen Size : 1578px X 584px ※ This icon will show when Dip s/w set to use “Resistive Touch” , or it will show car have a resistive touch. automatically... - Page 7 SCREEN VIEW NAVIGATION Quick icon for Navigation Application Multimedia Quick icon for Multimedia Application Music Player Music player Widget File Manager Quick icon for File Manager Application APPS Application List Back Button Return Home Button Home 1. Multitasking Multitasking 2. PIP Mode by Long Press APP Shortcut Quick icon Sound...
-
Page 8: Split Screen Mode
SCREEN VIEW – Split Screen Mode ※ Split Screen Press and hold the multi-tasking button to enter the split screen mode. In the split screen mode, press center to reverse the direction. ※ Some apps are not work on Split Screen Mode Long Press Normal... -
Page 9: Cable Connection

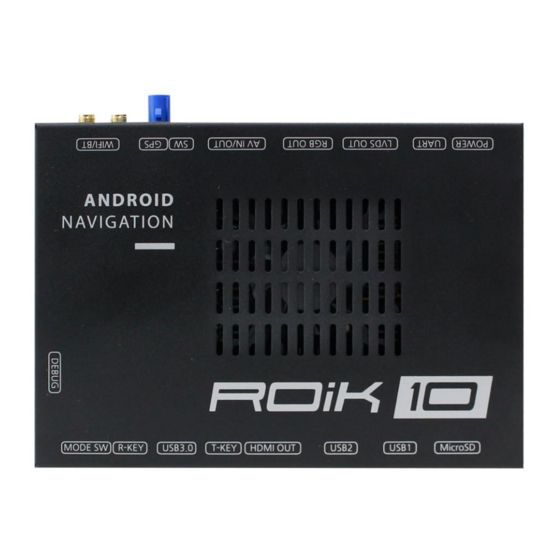

CABLE CONNECTION POWER UART LVDS OUT RGB OUT AV IN/OUT WIFI/BT WiFi/BT Antenna x 2 Cable Car battery Antenna CAP - Touch RES - Touch Digital UART - Touch LVDS Interface Interface SPEAKER AUX OUT R HEADREST MONITOR AUX OUT L [CVBS] VIDEO INTERFACE... - Page 10 CABLE CONNECTION ANDROID NAVIGATION MODE SW R-KEY USB3.0 T-KEY HDMI OUT USB2 USB1 MicroSD ※ Play movies or music using USB or Micro-SD Card ※ Firmware update is available only by “USB1” HEADREST MONITOR [HDMI]...
-
Page 11: Rgb Interface
CABLE CONNECTION – Interface Resistive Touch Use Resistive Touch ※ Resistive Touch Resitive DIP S/W 1 = OFF Touch panel POWER UART LVDS OUT RGB OUT AV IN/OUT WIFI/BT ※ Digital LVDS OUT/CVBS OUT ※ RGB OUT DIP S/W 1 = ON DIP S/W 1 = OFF LVDS IN RGB IN... - Page 12 CABLE CONNECTION – Interface Capacitive Touch Use Capacitive Touch (Goodix GT9xx) Capacitive Touch Panel ※ Capacitive Touch DIP S/W 1 = ON POWER UART LVDS OUT RGB OUT AV IN/OUT WIFI/BT CAP TOUCH EXT TOUCH ※ RGB OUT ※ Digital LVDS OUT/CVBS OUT DIP S/W 1 = ON DIP S/W 1 = OFF LVDS IN...
- Page 13 CABLE CONNECTION – Interface UART Touch Use UART Touch ※ UART Touch DIP S/W 1 = OFF DIGITAL LVDS INTERFACE INTERFACE RGB IN LVDS IN UART TX ROiK UART RX connect with UART TX ROiK UART TX connect with UART RX Cut the USB-Cable UART TX Connect white-cable...
-
Page 14: Touch Setting
TOUCH SETTING Capacitive Touch Setting (GOODIX GT9xx) 2. Select Touch Panel name 1. Capacitive Touch Setting If don’t have on the list, select “OTHER STORAGE” On the list Not on the list 3. OK 4. Select setting file (saved on USB/SD) ※... - Page 15 CABLE CONNECTION – HEADREST MONITOR ※ Headrest Monitor (CVBS or HDMI) CVBS HDMI INTERFACE ANDROID NAVIGATION MODE SW R-KEY USB3.0 T-KEY HDMI OUT USB2 USB1 MicroSD...
-
Page 16: Device Settings
DEVICE SETTINGS Function Button RESET SETTINGS Reset settings to default RESTART DEVICE System Reboot External Speaker Turn on/off external speaker Softkey Enable Use soft key or disable (Floating button when disabled) Softkey Position Soft key position setting (side, bottom) Softkey Auto Hiding Set softkey auto-hide time Zoom Button Enable Enable or Disable the Zoom Button on the Soft Key... - Page 17 DEVICE SETTINGS – Softkey / Floating Button Settings 1. Softlkey Use 2. Floating Button Use (Disable Softkey) Floating Button Enble Using or not using floating button Transparent Adjust the transparency of floating buttons Automatic Hide Floating button auto-hide setting Automatic Close Floating button auto-hide setting time...
- Page 18 DEVICE SETTINGS – Select Interface Touch Data is different for each manufacturer, so you should choose the right manufacturer. If you do not know the manufacturer, please contact us at kap@kaptrader.com...
- Page 19 DEVICE SETTINGS - FMT Settings 1. FMT Settings 2. Press 'OFF' in the FMT Setting screen. 3. Setting...
-
Page 20: Calibration (Resistive Touch)
DEVICE SETTINGS – CALIBRATION (RESISTIVE TOUCH) ※ Capacitive touch panel no need set calibration A. Device Settings > Touch Calibration B. Push button 2~3 sec after booting Calibration mode Press and hold the center of '+‘, 5 times. DEVICE SETTINGS - USER LOGO UPDATE Set User Boot Logo Activate 1. - Page 21 ANDROID FIRMWARE UPGRADE Recommend Copy ‘system_roik10’ folder to USB Memory root and insert to USB1 Port. Select Upgrade Menu, it will start upgrade *‘/usb disk/system_roik10’ Folder have ‘update.img’ file * If there is no update file, "Upgrade Device" menu is not show ※...
-
Page 22: Factory Reset
FACTORY RESET Recommend Setting ▶ Backup & Reset ▶ Factory data Reset Select “RESET DEVICE” = Factory Reset Wait until restart unit ※ After reboot system, it takes 3~4 min T-Key USB1 (USB 2.0) Re-connect power cable While Press button ※... - Page 23 A-912 RM Tera-Tower2, 201 Songpa-Daero, Songpa-gu, Seoul, Korea T. (+82) 6204-0912 F. (+82) 6204-0913 E. kap@kaptrader.com...
