invotel iHold 4LPro Manual

•

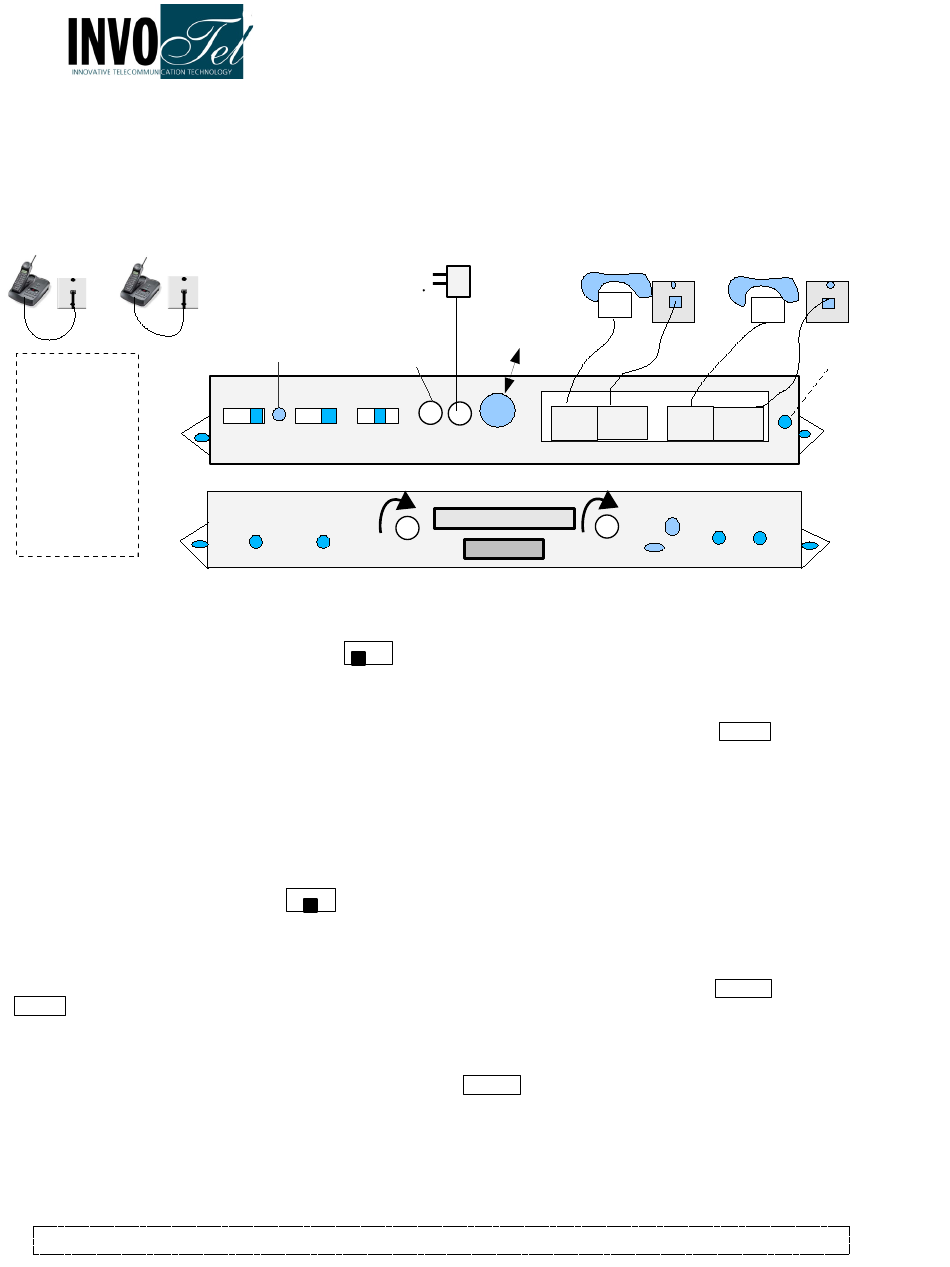

Ensure USB Flash drive or SD card is inserted then Plug the included AC adapter
power adapter or the unit will be damaged
•
Confirm that White LED lights in front of unit are double blinking– for regular phones continue, for PBX phones go to page P4
•
Use one of your telephones and unplug the cord for L1/L2 from it and connect it to L1/L2 IN jack on iHOLD device , now
connect the L1/L2 OUT jack to your telephone using the provided cord, check for Dial Tone on lines 1 & 2
•
If applicable unplug the cord for L3/L4 from telephone and connect it to L3/L4 IN jack on iHOLD device , now connect the
L3/L4 OUT jack to your telephone using the provided cord, check for Dial Tone on lines 3 & 4
•
Observe that as you connect the lines the blinking lights turn OFF
Please note: just
one telephone
may be
connected to this
device, other
telephones
remain
connected to
their own wall
jacks and they all
work.
•
Turn the Speaker ON1
Volume to mid level
Switch set to 1: Hold button activation
Use this setting when all phones are corded ( not cordless type like corded base station + portables) and all are same model
(for example all are ATT 993)
Operation: make or receive a real call, the LED on the iHOLD turns ON solid, then simply press the
telephone, the Music will be heard to the caller and the LED on the iHOLD device starts to BLINK , to return to the call just re-
select that line. (Be sure to allow 1 or 2 seconds before putting a call on HOLD).
The 1 st time your are setting the device If it did not work hang up and try it again 2 or 3 times.
If music on hold does not work in this setting
Switch set to 2: Flash activation
This setting utilizes Flash then Hold activation method, this setting supports any phone or any mix of brands with instant
activation by pressing Flash then Hold
Operation: make or receive a real call, the LED on the iHOLD turns ON solid, then simply press the
HOLD
button on your telephone, the Music will be heard to the caller and the LED on the iHOLD device starts to BLINK , to
return to the call just re-select that line and speak into the audio to stop it for example say : "Hi I am Back" (Be sure the call
has been on Hold at least 4 seconds before you try to voice deactivate the audio)
You may also re-select the line that has been on Hold and press
If for some reason you are not able to voice -deactivate, try speaking a little louder or more direct into the microphone, if that
does not work hang up and set the switch to 3. Remember you can always use the Flash button to deactivate the audio as well.
The FLASH button could be labeled as Call Wait or LINK or ON or TALK button on some telephones
Do not make the volume too loud in this setting or the audio could sound flickering when heard on Hold
Hold 2LPro,
i
Professional All-In-One Music On Hold device
Rev 32
110 - 240 V
Audio2
External Speaker, PA
system, Bluetooth
Program
transmitter
A B C 1 2 3
Speaker
ON1 ON2
OFF
L1 L2
or to ON2
(for Music on Hold )
(you can Turn it OFF any time)
1 2 3
(for example ATT 1040,1070,1080)
1 2 3
Hold 4LPro
i
(on non existing lines the lights keep blinking and that is OK)
Audio1
Output to PBX or
AUX Audio Input
SD card slot
USB drive
Volume1
(for your songs and office music)
, hang up and change switch to setting 2 or 3
to stop the audio
FLASH
(110- 240 V AC to 5V DC) Be sure not to use a different
L3/L4 L3/L4 L1/L2
L1/L2
OUT IN OUT
IN
NXT /AUX L3
Volume2 LED
to confirm Audio is playing and Adjust the
HOLD
FLASH
SW
Back
view
L4
Front
view
button on your
then
P1
