CATH-TECH Hexcorder Pro Operation Manual page 9

Rev 1 – July 2018
Cath-Tech Hexcorder Pro Manual
Threading the Wire
From the spool, the wire passes through the plates of
the lower tensioner. Then the wire is wound clockwise
around the drum twice. Finally, it passes through the
plates of the upper tensioner and out the side of the wire
dispenser to be attached to the pipe at the test station.
Connect the lead from the bottom of the spool to the
terminal at the base of the wire dispenser.
The wire has a fine enamel coating on it that must be
removed with sandpaper to make a good electrical
connection.

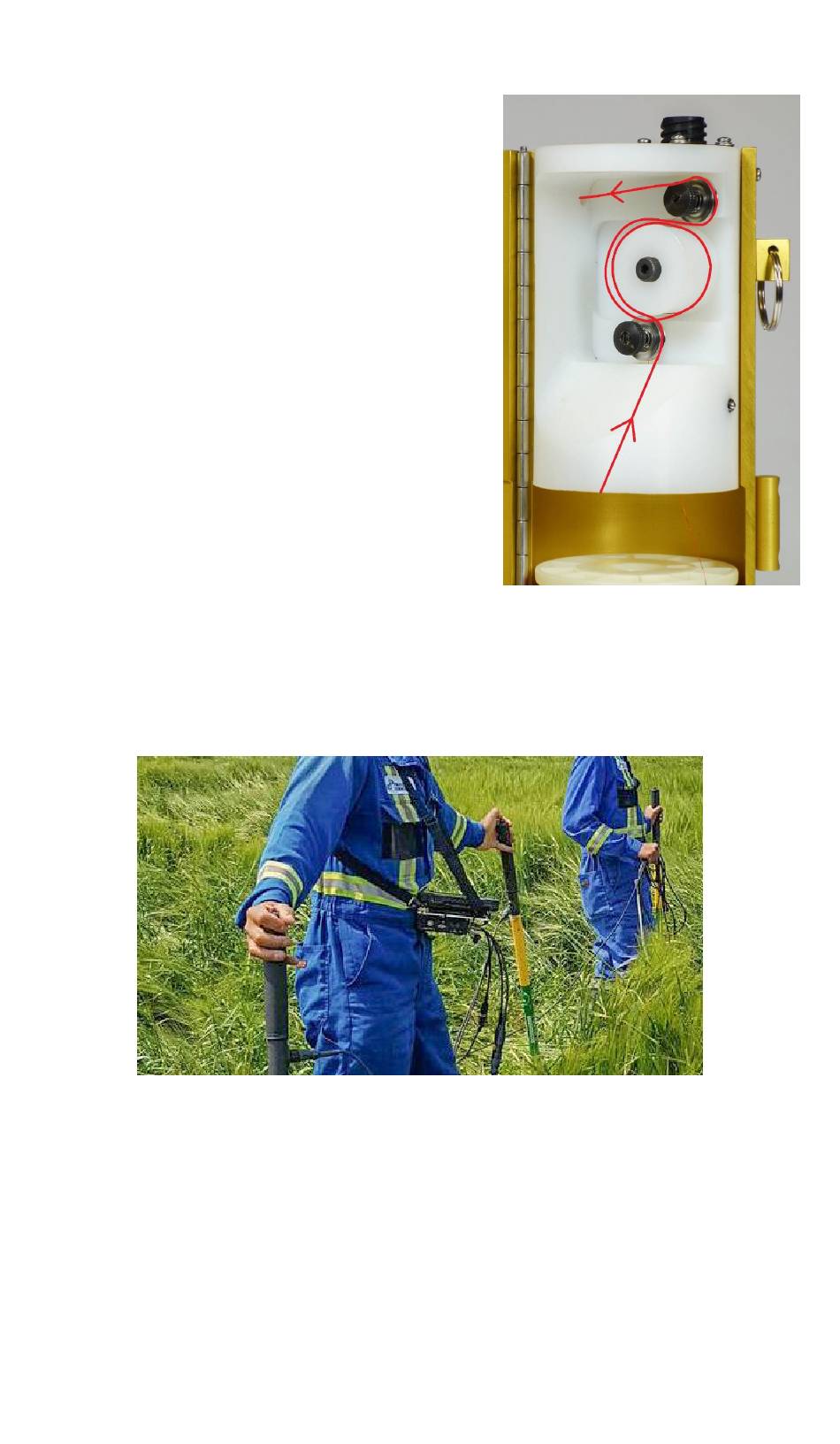

Figure 7 - Wire path through chainage counter
Figure 8 - Two-man survey crew using Hexcorder Pro
