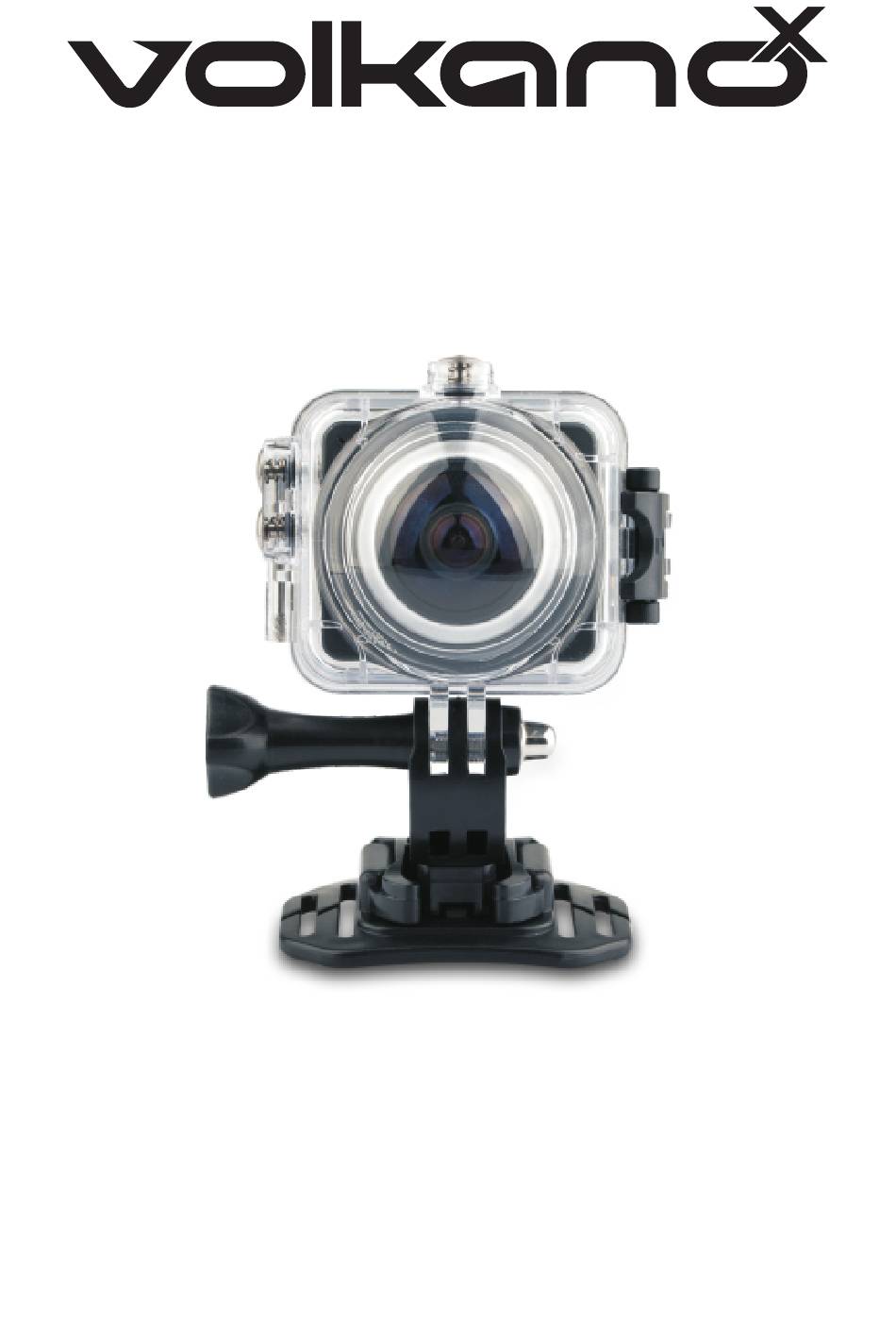

Orbis Cam
PANORAMIC VR
ACTION CAMERA
Please read and retain these instructions
for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orbis and is the answer not in the manual?

Questions and answers

Related Manuals for volkano Orbis

Summary of Contents for volkano Orbis

  • Page 1 Orbis Cam PANORAMIC VR ACTION CAMERA Please read and retain these instructions for future reference.

  • Page 2: Product Illustration

    PRODUCT ILLUSTRATION 1. Power/Menu Button 2. Down/Wifi Button 3. Micro HD Output 4. Micro USB Port 5. Micro SD Card Slot 6. Busy indicator light (blue) Charge indicator light (red) WIFI indicator light (yellow) 7. MIC 8. Three element lens 9.

  • Page 3: Specifications

    REMOVING THE BATTERY FROM THE CAMERA Remove the battery by placing your thumb in the opening on the battery ompartment. Allow the door to pop out. Grasp the battery pull-tab and emove the battery from the compartment. SPECIFICATIONS Image Sensor : 8.0 mega-pixel CMOS image sensor Function Mode : Recording, Photo, Playback...

  • Page 4: Light Indicators

    : Built in Loud speaker : Built in 8 0.5w G-SENSOR : ST-LIS3DH Charging time : About 2 hours WIFI : 802.11 Language : English, Chinese Operating System : Windows 7, 8, 10 and Mac 10.5 or above Working temperature : -10~+55 degrees Celsius Storing temperature : -20~+70 degrees Celsius...

  • Page 5: Button Functions

    BUTTON FUNCTIONS 1 Power Button a. Press the power button for 2 seconds to power on the camera, Press the power button for 2 seconds to power off the camera. b. Under working mode, short-press the button to enter into the Menu Screen. 2.
  • Page 6 Video Mode: Circle mode/Panoramic 180/Panoramic 360/4 in 1/3 in 1/2 in 1/360 VR/Exit Loop recording: OFF / 1 min / 3 mins / 5 mins / Exit Time-lapse recording: OFF / 1second / 2seconds / 5seconds / 10seconds / 30seconds / 60seconds / Exit WDR (Wide Dynamic Range): OFF / ON / Exit Motion detector: OFF / ON/ Exit Time Stamp: OFF / ON / Exit...
  • Page 7 Playback mode In the Playback mode, you can view the files that have been recorded on the device. To enter into the Playback mode, long-press the shutter button. Use the Down to select a file or folder and short-press the shutter button to playback the selected file.
  • Page 8 Time & Date: Y / M / D / H / M / Time Format Power Save: OFF / 1min / 3 mins / 5 mins Key Sounds: OFF / ON / Exit Screen Setting: Power-saving mode / Rotate Screen / Language/Exit Light frequency: 50 Hz / 60 Hz / Exit Format: YES / Exit System Information: Displays the software version and the SD card...

  • Page 9: Other Functions

    7. Long press the file name to download it into the local memory of your mobile device under the playback interface, and view the file by pressing this button. 8. To achieve the full effect of 360/180 video, you need to download the playback APP UtoVR or Real 360 player.

  • Page 10: Charging The Battery

    Connect the HDMI line to a high definition TV using an HDMI cable (not included). Please note that the TV might need to be adjusted to the HDMI state, the LCD screen on the camera will be off during the connection.

  • Page 11: Mounting Options

    MOUNTING OPTIONS Waterproof Case Edition MOTO/Bike Sport Edition MOTO/Bike Sport Edition Helmet Edition...
