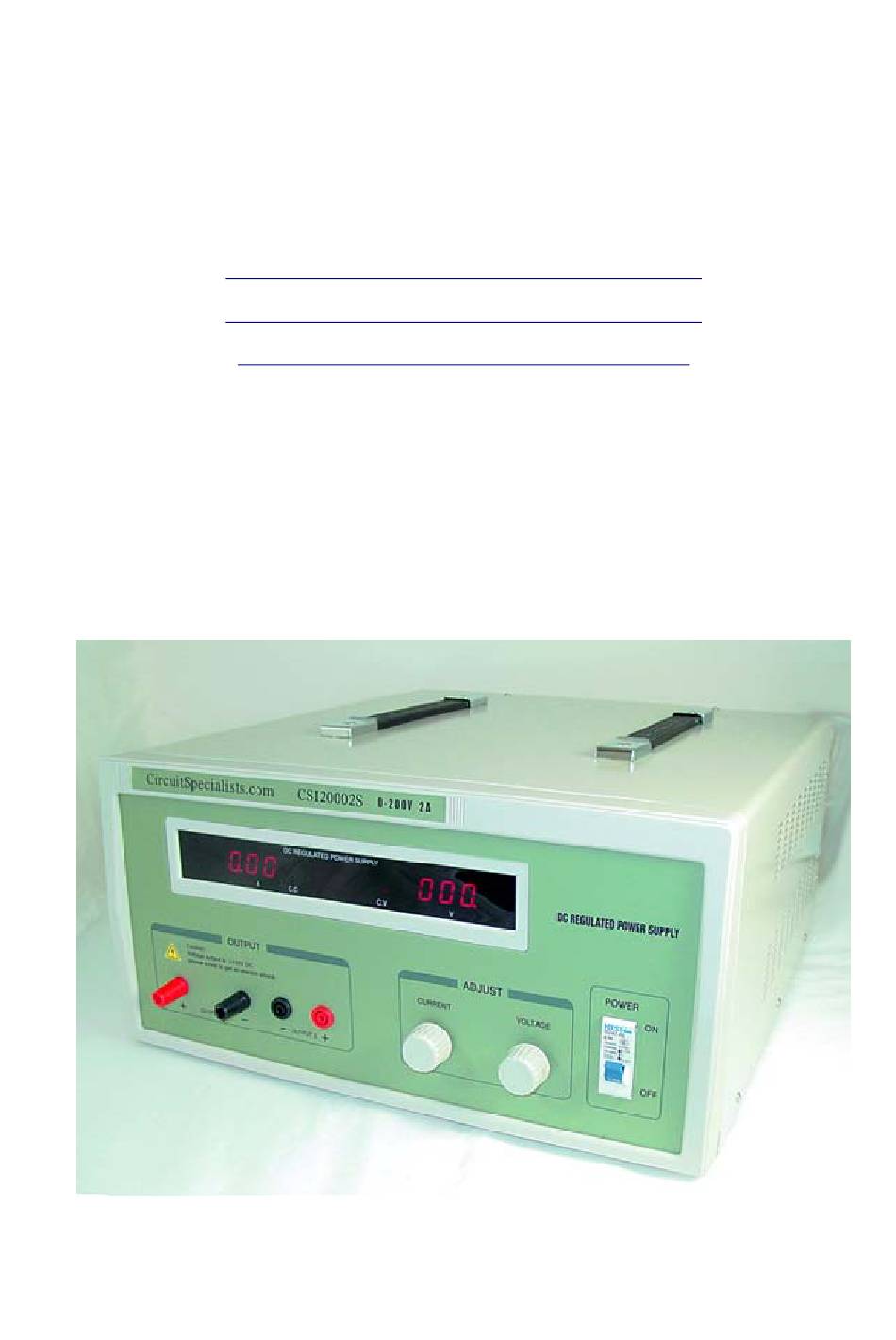

Single Output Adjustable DC Bench Power Supplies with Large LED Displays
CSI12005S...........0-120VDC/ 0-5A Regulated Power Supply
CSI20002S...........0-200VDC/ 0-2A Regulated Power Supply
CSI5030S.........0-50VDC/0-30A Regulated Power Supply
Circuit Specialists Inc
220 S. Country Club Dr., Bldg. #2
Mesa, AZ. 85210
Tel: 800-528-1417/ 480-464-2485
Fax:480-464-5824
Internet:
www.CircuitSpecialists.com
Advertisement
Related Manuals for Circuit Specialists CSI12005S
Summary of Contents for Circuit Specialists CSI12005S
- Page 1 Circuit Specialists, Inc Single Output Adjustable DC Bench Power Supplies with Large LED Displays CSI12005S………..0-120VDC/ 0-5A Regulated Power Supply CSI20002S………..0-200VDC/ 0-2A Regulated Power Supply CSI5030S………0-50VDC/0-30A Regulated Power Supply Circuit Specialists Inc 220 S. Country Club Dr., Bldg. #2 Mesa, AZ. 85210...
- Page 2 INTRODUCTION: CSI12005S, CSI20002S and CSI5030S series of Adjustable DC Voltage and Current Regulated Power Supplies are high precision DC Power Supplies with continuously adjustable voltage and current outputs. They feature automatic switching between voltage regulation and current regulation. The output voltage (CV) is adjustable starting from zero volts and can be set arbitrarily through the rated range.
-
Page 3: Operation
NOTE: CSI5030 can not work for long hours at full load due to excessive heat build up. Below are estimated run times. Actual performance is affected by environmental factors including ventilation in area of use. 50V – 30A = 1 Hour at 1500Watts (FULL CAPACITY, Uninterupted) 50V –... - Page 4 connected with an external high precision measuring instrument. (8) The negative terminal of output, to be connected with the negative end of the load----Normally for test, examine and repair, or to be connected with an external high precision measuring instrument. (9) The positive terminal of output, to be connected with the positive end of the load.
