Summary of Contents for Fondital SPOT SMART THERMOSTAT

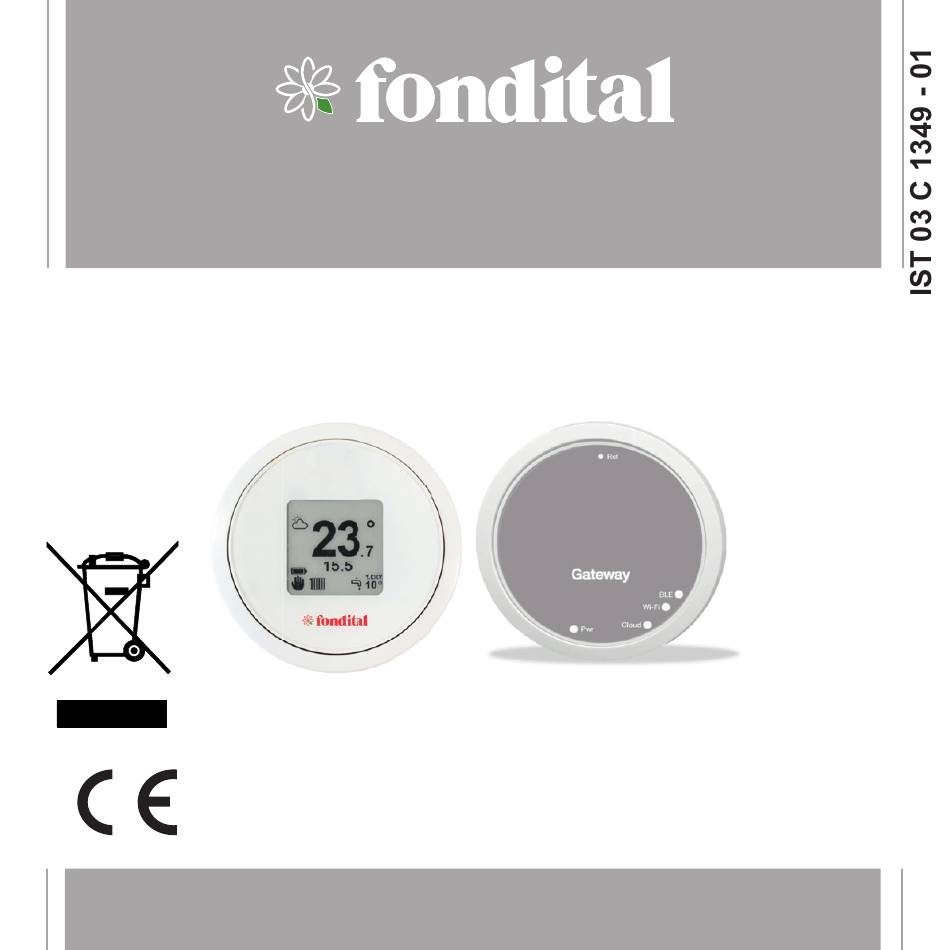

- Page 1 SPOT SMART THERMOSTAT INSTALLATION, USE Translation of the original instructions (in Italian)
- Page 2 Thank You for choosing and buying one of our products. Please read these instructions carefully in order to properly install, operate, and maintain the product. WARNING: this instruction manual is an integral and essential part of the product. It shall be supplied by the installer to the user who shall keep it carefully to consult it whenever necessary.
- Page 3 DANGER: do not use insecticides, solvents or aggressive detergents to cle- an the appliance. WARNING (applies to Thermostat only): the appliance may be used by children of at least 8 years of age and by persons with reduced physical, sensory or mental capabilities or lack of the necessary knowledge, provided that they are under supervision or have been instructed in the use of the ap- pliance.
- Page 4 THERMOSTAT CHARACTERISTICS Dimensions: diameter: 70mm, thickness 35mm Colour: White, with coloured rubber rings Wireless technology: Bluetooth 4.1 BLE Distance between thermostat and Gateway: Maximum 15 m (30 m in open space) Reading range: 0°C to 40°C Reading accuracy: +/- 0.1 K Setting range: 5°C to 30°C Temperature increase range:...
- Page 5 THERMOSTAT INSTRUCTIONS Thermostat description KEY: KEY: failure display area battery 25% weather low battery burner status: on/off progr. thermostat in manual heating request in progress mode progr. thermostat active DHW request in progress progr. thermostat partially technical support enabling active battery 100% winter battery 75%...
- Page 6 Navigation gestures: wait for five seconds turn press press for three seconds Set temperature Set programmable thermostat function copy whole day paste whole day exit day of the week click to change day of the week...
- Page 7 How to select and set the time: How to select and set the temperature:...
-
Page 10: Operating Mode
Operating mode BACK MODE WINTER WINTER SUMMER SUMMER WINTER SUMMER WINTER SUMMER... - Page 11 WINTER: the boiler is enabled to produce both hot water for heating and domestic hot water. SUMMER: the boiler is enabled to produce domestic hot water only. Heating is disabled. OFF: each boiler operation request is disabled. Antifreeze function is guaranteed.
- Page 12 CH temperature setting 11:24 BACK HEATING WATER 70°C 30°C THERMOSTAT HEATING WATER 70°C 30°C HEATING WATER 70°C 30°C HEATING WATER 11:24 BACK...
- Page 13 MIN: is the minimum temperature of the heating water that the boiler will provide in modulating operation (regulation type=room temp /external temp/ room-external). MAX: is the maximum temperature of the heating water that the boiler will provide in modulating operation (regulation type=room temp /external temp/ room-external).
- Page 14 DHW temperature setting 11:24 HEATING DOMESTIC WATER HOT WATER THERMOSTAT DOMESTIC HOT WATER 49°C BACK DOMESTIC HOT WATER 49°C...
- Page 15 DOMESTIC HOT WATER: the boiler will produce domestic hot water at the temperature set with this parameter.
- Page 26 Once the app has been downloaded, the programmable thermostat can also be reached from the main browsers through the Webapp accessible from the Fondital website. Technical support enabling From the “settings” page, the user can enable or disable the remote control of the boiler and heating system by the Fondital technical support.
- Page 27 How to replace the battery Disconnect the thermostat from the wall bracket and replace the battery respecting the polarities: WARNING: when changing the battery or turning it on for the first time, re- member to set the correct date and time. WARNING: the batteries can be replaced only by the user.
- Page 28 GATEWAY INSTRUCTIONS Gateway description Front Rst button: reset / programming BLE LED: bluetooth (blue) WiFi LED (blue): not used Cloud LED (blue) Power LED (green)
- Page 29 BUS connector to be connected to the boiler. Non-polarised connection live power supply: 90/230 Vac - 50/60 Hz black neutral power supply: 90/230 Vac - 50/60 Hz yellow green dry contact for zone valve enabling Back...
- Page 30 Gateway connection SAFETY WARNINGS: The connection and installation of electrical applian- ces may only be carried out by professionally qualified personnel in accor- dance with the applicable national and safety regulations. Any intervention or modification to the appliance shall immediately terminate the warranty. For the connection of the 4-pole connector on the Gateway, see the picture above and the wiring diagrams described below.
- Page 31 Key of LEDs The Gateway Spot is equipped with lights (LEDs) that signal the operation and the mode in which the gateway is operating; these LEDs can be on with a steady or blinking light depending on the status: • Power LED: it signals the presence of voltage, the Gateway is on, it must always be steady on and green.
- Page 32 Spot Gateway and Spot Thermostat pairing Each Spot Starter Kit is already supplied with pairing between Gateway and Spot thermostat, ho- wever if you want to pair a new Spot Thermostat or add another Spot thermostat (maximum three per Gateway), please follow the instructions below: Make sure you have switched on the Gateway for at least 5 minutes Step 1 Step 2...
- Page 33 Connect the Gateway to a Wi-Fi network (account connection) WARNING: Before performing this operation, make sure you have the pas- sword details of the WiFi network you want to connect to and be sure that this network has an internet connection. If you want to control the Spot thermostat remotely, first download the “MYSPOT”...
- Page 34 Open the Spot App and login, the message “No Device added yet” will appear, press “+”, then select “Jotto_Config_AP”, choose the WiFi network to which you want to connect the Gateway and type the correct password. After connecting to the cloud, the message indicating the presence of a new Spot will appear, press “Next”...
- Page 36 Modify the Gateway Wi-Fi network If you have already connected the gateway to your account but you want to change the WiFi con- nection it is connected to, just follow the instructions below: WARNING: Before performing this operation, make sure you have the password details of the WiFi network you want to connect to and be sure that this network has an internet connection.
- Page 37 From the Spot App, select “Setting”, then “change” on “access point detail”. Then select “Jotto_Con- fig_AP”, choose the WiFi network to which you want to connect the Gateway and type the correct password. After connecting to the cloud, the app will return to the Spot main page.
- Page 39 Pairing with a second or third Zone Expansion on the same Gateway WARNING: To add a second and/or third Spot Thermostat you must have a Wi-Fi router and an Internet connection. Up to three Spot thermostats can be paired to each Spot Gateway, so if you have purchased a “Spot Expansion”, follow the instructions below to pair your thermostats with the Gateway.
- Page 40 Step 5 Step 6 Press the Rst button again, the BLE LED will Press the Rst button again, the Cloud LED will blink fast three times every second; you are re- blink fast three times every second; you are re- ady to match the third Spot thermostat, follow ady to pair the third WiFi relay (see next chapter steps 3 and 4 defined in the previous chapter...
- Page 41 Phase Maximum current 10A at 230Vac The relay is modified according to Fondital's specifications, use only the relay of the Spot Expansion package. Fondital declines any responsibility for the use of a relay different from the one contained in the package.
- Page 42 Take your smartphone and follow the instructions below: Step 1 Step 2 Step 3 Go to WiFi and select the net- The following relay page will The page shows the available work “Spot_RL_xxxx”, exit and open, click on “Configure wifi”. WiFi networks, choose the open the browser and type the network to which you have...
- Page 43 Step 4 Step 5 Enter the password for the If everything has been done WiFi network to which the Spot correctly, the LED on the re- Gateway is connected, and lay will stop blinking and will press enter. become steady; if this is not the case, repeat the procedure from the beginning.
- Page 44 Through the Fondital App (Android - Apple) it is possible to remotely control your heating system with your smartphone. It is also possible to enable the Fondital technical service to remotely control...
- Page 45 230Vac - 50Hz ROUTER 230Vac GATEWAY BOILER 230Vac...
- Page 46 RELE' 230Vac WIFI...
- Page 48 Fondital S.p.A. - Società a unico socio 25079 VOBARNO (Brescia) Italy - Via Cerreto, 40 Tel. +39 0365 878 31 Fax +39 0365 878 304 e-mail: info@fondital.it www.fondital.com The manufacturer reserves the right to modify his/her products as deemed necessary, without altering the basic characteristics of the products themselves.
