Summary of Contents for PhD Solutions EXC-P507HDTX
-

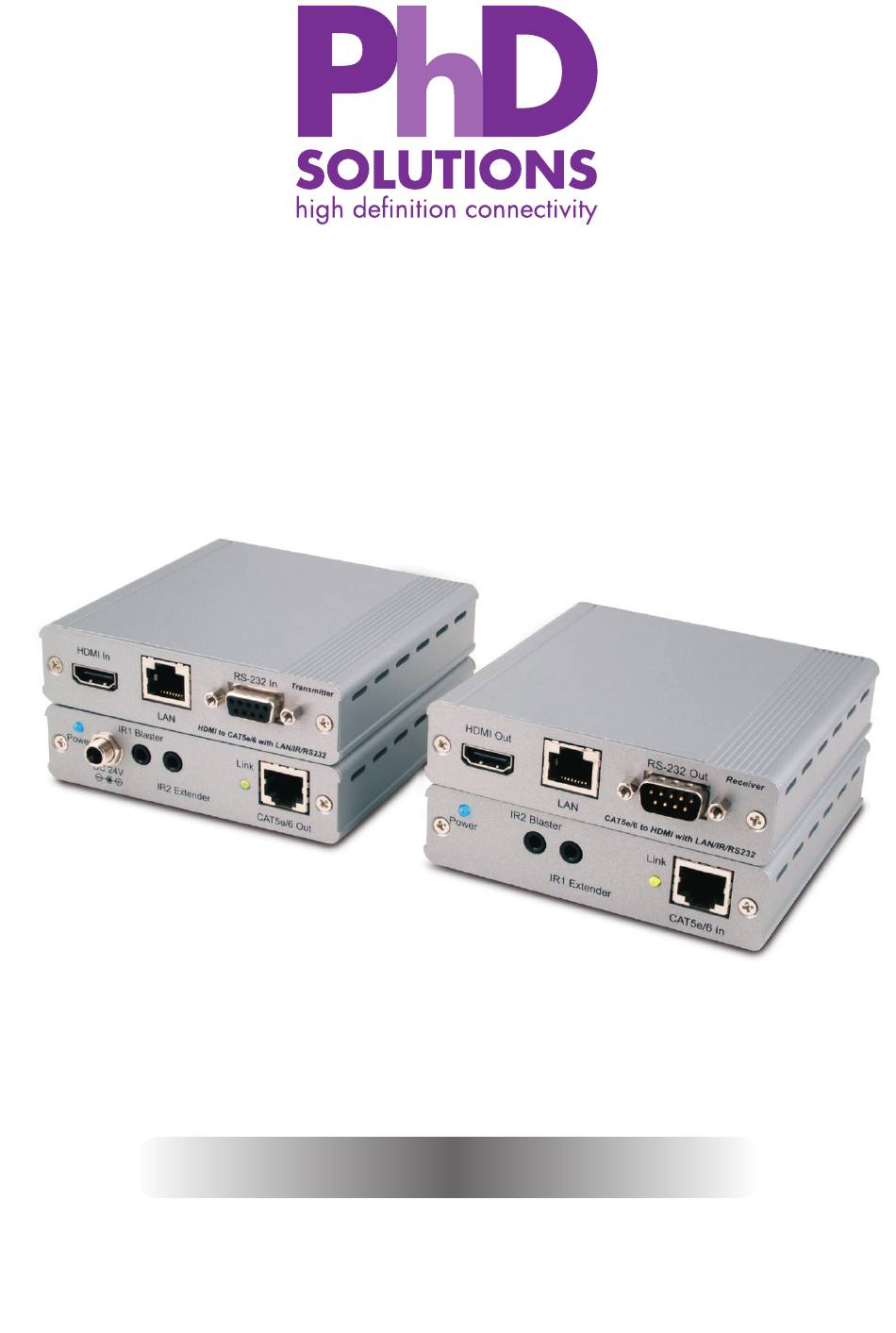

Page 1: Operation Manual
EXC-P507HDTX & RXE CH-507TX & RX HDMI to CAT5e/6 with LAN/IR/RS-232 Operation Manual Operation Manual... -
Page 2: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons. -
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3. -
Page 4: Introduction
1. INTRODUCTION The HDMI with RS-232 over Single CAT5e/6 transmitter and receiver set can send uncompressed audio/video over a single run of CAT5e/6 cable up to 100 m with PoE feature and the added benefi t of control through the built-in RS-232 and IR ports and a bi-directional LAN connection. -
Page 5: Features
5. FEATURES • HDMI 1.4 with 3D, 4k×2k support, HDCP & DVI Compliant • Supports CEC bypass • Simultaneous transmission of uncompressed data over a single 100 m/328 ft CAT5e/6 cable • Uncompressed video 1080p, 60 Hz, 36-bit • Audio support up to 7.1CH & Dolby TrueHD, DTS-HD •... -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels Front Rear Transmitter IR1 Blaster RS-232 In HDMI In Power DC 24V IR2 Extender HDMI to CAT5e/6 with LAN/IR/RS232 HDMI In: Connect to HDMI source equipment such as a DVD or Blu- ray player. -
Page 7: Receiver Front And Rear Panels
6.2 Receiver Front and Rear Panels Front Rear Receiver IR2 Blaster RS-232 Out HDMI Out Power IR1 Extender CAT5e/6 to HDMI with LAN/IR/RS232 HDMI Out: Connect to a HDMI equipped TV/monitor for display of the HDMI input source signal. LAN: Connect to a PC or Laptop to the Internet or network connection. -
Page 8: D-Sub 9 Pin Defi Nitions
6.3. IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Signal IR Receiver Power 5 V Grounding 6.4. D-Sub 9 Pin Defi nitions Defi ne TX / RX TxD / RxD RxD / TxD... -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player Internet Modem or Router 1.5m HDMI CAT5e/6 60° RS-232 IR Blaster Power Supply RS-232 In Transmitter HDMI In HDMI to CAT5e/6 with LAN/IR/RS232 IR1 Blaster 60° Power DC 24V IR2 Extender RS-232 Equipped IR Extender PC or Notebook IR Extender... -
Page 10: Specifications
8. SPECIFICATIONS Video Bandwidth 300MHz / 9Gbps Ethernet Speed 100 Mbps Transmitter Input 1×HDMI, 1×IR Extender,1×RS-232, 1×LAN Output 1×CAT5e/6, 1×IR Blaster Receiver Input 1×CAT5e/6, 1×IR Extender Output 1×HDMI, 1×RS-232, 1× IR Blaster, 1× LAN HDMI In/Out Cable Up to 10 Meters Distance CAT6 In/Out Cable Up to 100 Meters... -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Defi nition Multimedia Interface Infrared... - Page 12 PhD Solutions Product Warranty Should you feel your product does not function adequately due to defects in materials or workmanship, PhD Solutions (hereby referred to as “the warrantor”) will, for the length of the period indicated below: Repair the product with new or refurbished parts.
- Page 13 Return to Supplier When shipping the unit, carefully pack and send it prepaid (preferably in the original packaging) with a tracking number and adequate insurance. Please include a document or letter detailing the reason for return and include a daytime telephone number and/or email address where you can be contacted. If repair is required during the limited warranty period, the purchaser will be required to provide a sales receipt or other proof of purchase, indicating date and location of purchase as well as the price paid for the product.
- Page 14 Premium High Definition Solutions Home page: http://www.phdsolutions.co...
