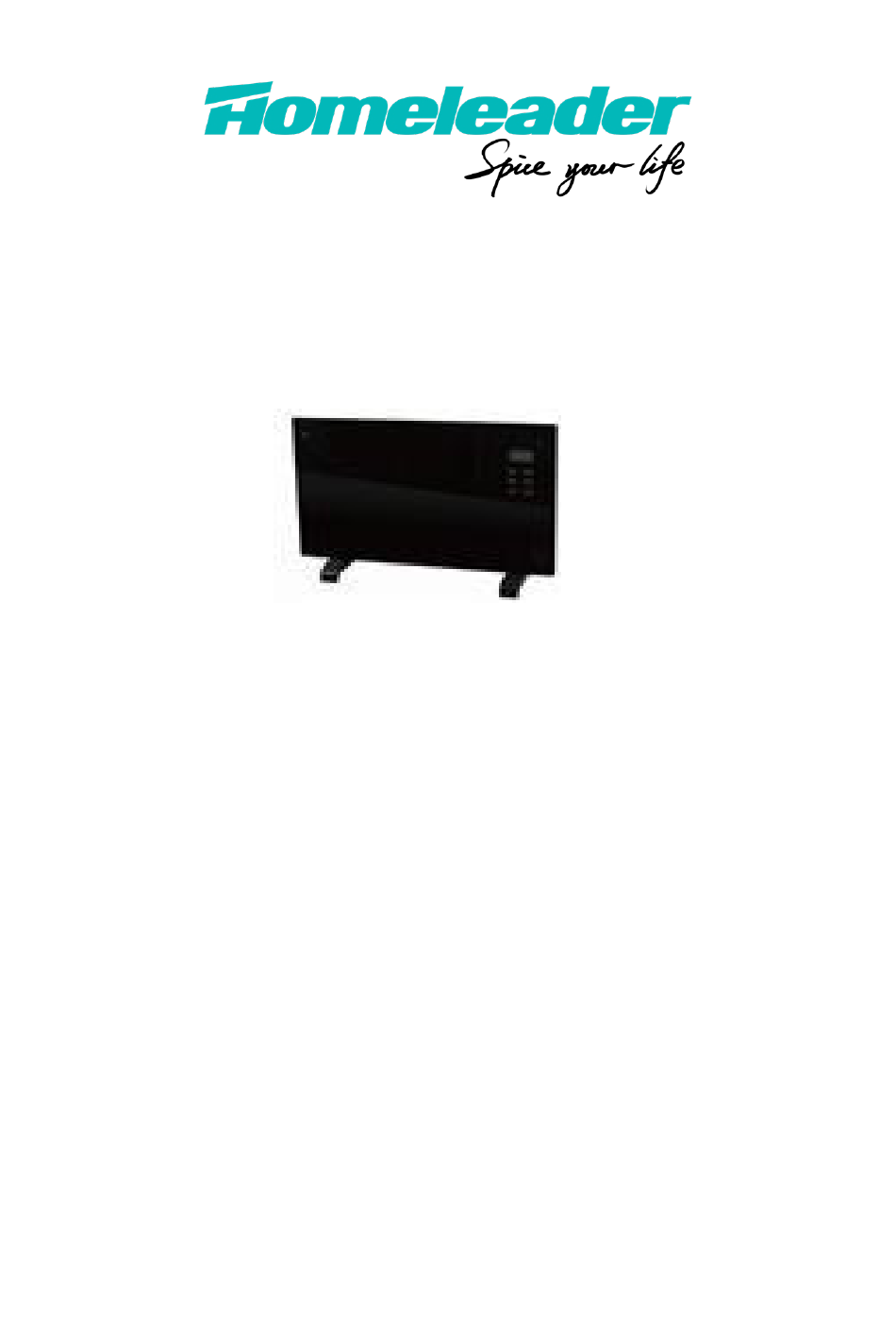

Service Manual

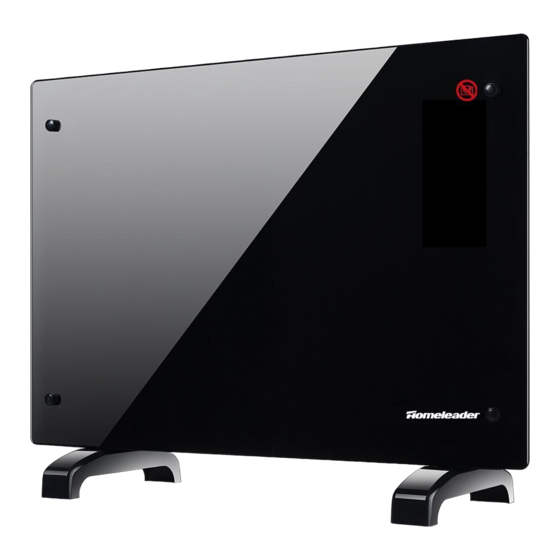

Glass Panel Convector Heater
Model: GHB-15A
Dear customer:
● Thank you for choosing our products.
● This product is a well-designed, high quality heater.
For your convenience, please read the instructions carefully and follow the instructions in this
manual.
● Our company will provide you the best service. Regardless of any problems during use, please
contact us.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HOMELEADER GHB-15A
Summary of Contents for HOMELEADER GHB-15A
- Page 1 Service Manual Glass Panel Convector Heater Model: GHB-15A Dear customer: ● Thank you for choosing our products. ● This product is a well-designed, high quality heater. For your convenience, please read the instructions carefully and follow the instructions in this manual.
-
Page 2: Safety Instructions
Ⅰ. Product features: 1. High-quality heating element with aluminum hear sink: made of advanced technology, fast heat, big thermal area, rapid temperature rise, stable performance, no oxygen consumption, no light consumption. 2. Can be used in living room, bedroom and other area. 3. - Page 3 9. Do not touch the metal housing as it will get hot during the running of the electric heater, and keep the heater away from children to avoid risk of burns. Set aside some time to let the heater cool before you turn it off and store it. 10.
- Page 4 accidents may be caused. Ⅲ. Installation and application of the electric heater 1. Check whether the parts are complete and the product is intact when open the package. 2. If you want to use the electric heater in a mobile way, please install the rollers provided in the package.
-
Page 5: Wall Mount Instructions
Wall-mount Instructions 1.Take out the wall bracket and expansion screws from packing box. As is shown in the following figure, fix expansion bolts and screws onto wall according to the hole size of the wall-hanging bracket. Hook Expansion bolt Hook Expansion bolt 2. - Page 6 3. Fix the wall-hanging locking piece onto the wall-hanging bracket with screws. First, slide the wall-hanging locking piece into the locking slot on the back of the machine, and then tighten the screws, as is shown in the following figure. Wall-hanging locking piece 1.
- Page 7 2. As shown in the following picture, drill two holes on the wall with tool, each with a diameter of 8mm and a depth of 35mm. The distance between the two holes should be 535mm. Then put the expansion screws into the holes and screw them tight, with 5mm length each left outside.
- Page 8 ●Check the rated voltage in the model label of the heater is in line with that of the outlet. Power outlet requirements are: voltage 230V, frequency 50Hz, bearing current ≥ 10A. Do not power the heater on until the requirements are met. User Manual for GHB-15A...
-
Page 9: Technical Data
II-gear power switches at the same time, the machine will work at maximum power. Ⅵ．Technical Data Type Voltage Frequency Power Category GHB-15A 120V 50/60Hz 1500W The product is for household use only. Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. - Page 10 Any questions, please contact us through Amazon message or send us an email to services@homeleader.com.cn. We will reply as soon as we can and solve your concerns. Please do leave us a review about the panel heater if it works fine. Enjoy the product!
