Summary of Contents for Altech NOBLÈS

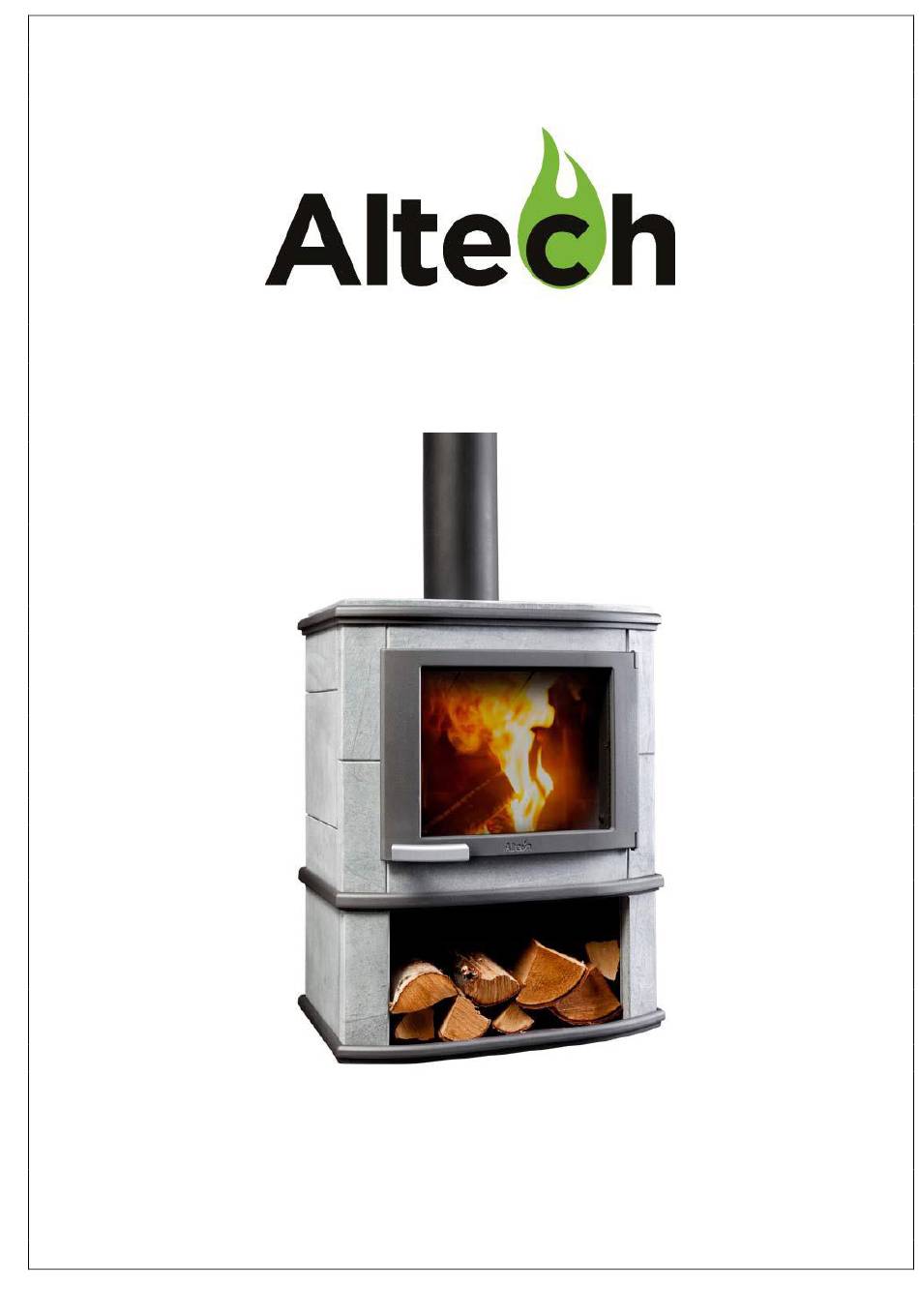

- Page 1 Manual NOBLÈS GRANDE NOBLÈS Version 010218...
- Page 2 230°C 230°C Efficiency: Local regulations Your Altech stove must be positioned in accordance with the locally applicable (legal) regulations and building regulations. Your Altech dealer can advise you on this. Flue The flue must have a minimum inner diameter of 125mm for the Nobles and 150mm for the Grande Nobles and has to meet the local and building regulations.
-
Page 3: Air Supply
Connecting piece The connection between the stove and chimney must be wel sealed without hindering the smoke or making it difficult to sweep the chimney. Air supply There must be a sufficient supply of air in the room in which the stove is located so that the burning process is not affected. - Page 4 LIGHTING Using for the first time To increase the life span of the stove, it is absolutely necessary to burn the stove at a limited rate the first 10 to 12 times that it is used. This allows the cement to harden and to form a solid connection between the cast iron and the soapstone tiles.
- Page 5 When the first fire procedure is complete you can use the NOBLÈS completely. For stoves from the NOBLÈS series, Altech recommends the so-called Top-Down heating instructions. With this method of lighting up, the stove and the chimney quickly reach the right temperature.
- Page 6 Place two smaller blocks of wood crosswise. These blocks have to be places as little as possible against each other so that the combustion air can pass well around the wood. Do not place the blocks completely against the rear so that sufficient air can still enter the combustion chamber through the rear air supply.
- Page 7 Close the door. The fire is now slowly expanding and will start to burn brighter from top to bottom. 5-10 minutes 20-40 minutes approx. 1 hour The stove is provided with a start position to bring the flue to the correct temperature as quickly as possible.
- Page 8 REFILLING Wait with refilling until only a few flames are present. Use the supplied glove, the door and the handle are hot. First open the door ajar, this creates extra chimney draft, which reduces the risk of smoke coming out. Then open the door again. 10.
- Page 9 FUEL The Altech wood stoves are only suitable for burning wood. It is not permitted to burn chipboard or wood which has been varnished, painted, impregnated or compressed wood or hardwood (e.g. Azobe). Burning...
- Page 10 (max. 1.2 kg by 30 cm) and adjusting the air valve. Your Altech stove consists largely of soapstone, this material keeps the heat that is released during burning for a long time. As a result, the heater will give off heat for up to 12 hours after the fire has been extinguished.
- Page 11 MAINTENANCE The Hearth must be emptied on a regular base. Be careful when doing so, because the ash may still contain glowing embers 24 hours after the fire has gone out. Therefore, preferably empty the hearth in a steel container which does not contain any inflammable parts. Cleaning The stove may only be cleaned when it is cold.
- Page 12 FAULTS AND PROBLEMS The window becomes black - The wood is too damp. Only burn wood with a moisture content of between 12 and 18 %. - The front door seal is faulty - Too much ash in the burning chamber and / or ash tray. - Wood is placed against the window.
- Page 13 Warranty claims can only be registered through an authorized Altech Altech dealer or distributor. Is the warranty card within 14 days of purchase sent to Altech you can only claim the statutory warranty provisions such as those in the country of sale apply.
- Page 14 Naam en woonplaats of firma stempel Altech Dealer / Name und Wohnort oder Firmenstempel des Altech-Händlers / Name and location or company stamp of the Altech dealer / Nom et adresse ou tampon du revendeur Altech / Nome ed indrizzo o timbro del rivenditore Altech...
- Page 15 Datum aankoop / Date of purchase / Datum Ankauf / Date d’achat / Data d’acquisto: .......... Naam en woonplaats of firma stempel Altech dealer / Name and location or company stamp of the Altech dealer / Name und Wohnort oder Firmenstempel des Altech-Händlers / Nom et adresse ou tampon du revendeur Altech / Nome ed indirizzo o timbro del rivenditore Altech Dit garantiebewijs binnen 14 dagen na aankoopdatum retour zenden.
