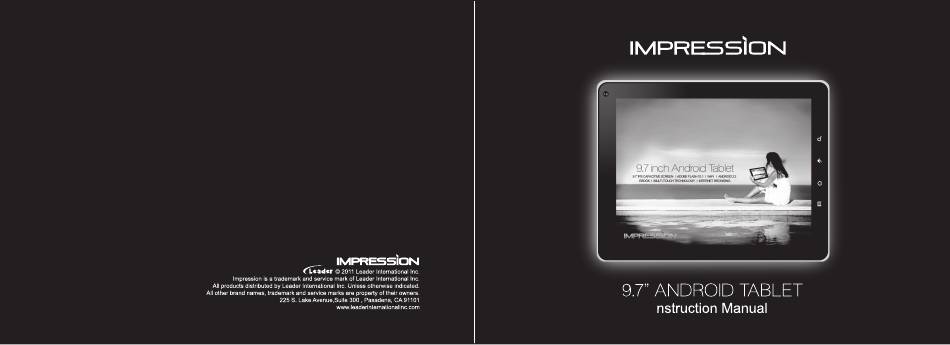

Impression 9,7 inch Instruction Manual

Android tablet
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9,7 inch and is the answer not in the manual?

Questions and answers

Summary of Contents for Impression 9,7 inch

  • Page 2 Controls ..................................2 Function Keys................................3 Touch Screen Interface ...............................6 Settings ..................................10 Camera/Camcorder ..............................22 Web Browsing ................................23 Application Installer ..............................24 Text Reader................................25 Task Manager ................................27 File Manager................................27 File Manager................................28 Music Player ................................30 Video Player ................................32 Picture Browser ................................33 Email Setup................................35 Clock Settings................................38 Specifications................................40 FCC Statement................................42...
  • Page 3 Menu Key Home Key Backspace Key Speakers Search Key Power Microphone Camera Mini USB Jack Volume Charge Jack Reset Micro SD Slot Indicator USB 1 Jack Camera Shutter HDMI Jack USB 2 Jack Earphone Jack...

  • Page 4: Backspace Key

    Home Key • In the option program, menu or webpage, press home key to return to the main interface. • Press & hold the home key and it will show your recently opened applications. Menu Key • Press the Menu key to open the sub-menu for this page. •...
  • Page 5 On/Off Key Turn ON • Press and hold Power ON/OFF key to turn on the tablet pc. Turn OFF • Press ON/OFF key to lock the screen and enter sleep mode. • Press and hold ON/OFF key: The mode selection window pops up. You can then choose silent mode, or power off.
  • Page 6 Accessories Included in The Package: Tablet pc Power adapter USB cable Instruction Manual Warranty Card Stop card Registration card Pouch（opptional）...
  • Page 7 Status Bar Left side of the status bar shows applications running Right side shows alerts, sub-menu Wi-Fi Applications connection, battery charge, etc. Click any icon to work the application. Browser Applications Settings Widgets Application Shortcuts on Home Screen...
  • Page 8 Screen Interface Main screen interface is similar to a computer desktop. Place application shortcuts and widgets here. Touch and “swipe” to go to next page, move things on the screen, etc. Touch 2 fingers and spread apart or bring together to zoom pictures in and out. Widgets Press the screen for 1-2 seconds.

  • Page 9: Status Bar Icons

    Status Bar Icons Finished Mute Downloading Wi-Fi Service Uploading / Connected & Downloading Available Alarm clock Playing Music Battery Power SD Card Nearly Full Status Charging When a prompt is displayed on the status bar, touch it to open the notification. •...

  • Page 10: Application List

    Application List Click the Application List icon to show the application library. Touch an application icon to start it Press and hold the application icon and a shortcut will be added to the home screen. Press the “Home” key in the application list interface to return to the home screen.
  • Page 11 Touch Screen Calibration In the application list screen, Click the “Screen Calibrator” icon:...
  • Page 12 1.Click “Calibration” 2.Click start, it will calibrate automatically 3.After 20 seconds, it’s ok.
  • Page 13 Language Settings Touch: “Options” > “Language & keyboard” > “Select language” > Choose Language...
  • Page 14 Screen Brightness Settings Touch: “Settings” > “Display” > “Brightness” > Adjust slider and hit “OK”...
  • Page 15 Screen Timeout Settings Touch: “Settings” > “Display” > “Screen Timeout” > Choose Time...
  • Page 16 SD card Mount / Un-Mount After inserting a micro-SD card to the tablet, do the following to install the card. Touch: “Settings” > “SD Card & Tablet Storage” > “Mount SD card”...
  • Page 17 SD card Mount /Un-Mount (continued) The Settings screen will also show how much memory is available on the card as well as on the internal memory. After mounting a card, the selection will change to “Unmount SD card” To uninstall the card select this option.
  • Page 18 HDMI device output To set up the HDMI output: Touch: “Settings” > “Display” > “TV Mode” > (continued on next page)
  • Page 19 HDMI device output (continued) Select HDMI output mode > Resolution > and select whether TV supports HDMI...

  • Page 20: Usb Connections

    USB Connections USB indicator when connected To connect a USB device such as a flash drive, plug it into USB #1 or USB #2 port (see page 2). The USB connection icon will be displayed, however you must first install the device. First, touch the status bar and swipe down to open the dialog box.
  • Page 21 The dialog at left will open. Select “USB Connected” Click on the button: “Turn on USB Storage” The USB device should now be enabled. Before removing USB device, click on “Turn off USB Storage” to eject the device.
  • Page 22 Wi-Fi Settings Touch: “Menu Key” > “Wireless & Networks” > “Wi-Fi Settings” Click Wi-Fi (turn on Wi-Fi). Tablet will start searching for available networks. Choose available network, input password and click “Connect”. For advanced settings, touch menu icon at right of status bar and choose “Advanced” Note !! Wi-Fi connection will drain the battery quickly.
  • Page 23 In the application list, click the “Camera” icon: Note: Make sure you have an SD Card installed to use the Camera/Camcorder Camcorder Mode Camera Mode Start/Stop Video Take Picture...
  • Page 24 Before using the internet browser, please make sure Wi-Fi service is turned on. Click the “Browser” icon to open the browser. Click on the menu icon at the right side of the status bar for browser commands.
  • Page 25 In the application list screen, click the “APK Installer” icon: Choose application location (or choose Uninstall) Enter i direct Enter direc Click Uninst Exit Select application. Click Install or cancel.
  • Page 26 In the application list screen, click the “Text Reader” icon: . Select memory location of the document. Touch document icon to open.
  • Page 27 Click the Menu button at the right side of the status bar to show/hide the lower menu. Using Bookmarks: Click “Add Bookmark”, type bookmark and click OK To jump to a bookmark, click “Open Bookmark” Select from the list, then press “Jump”...
  • Page 28 In the application list screen, click the “Task Manager: icon: The Task Manager shows all the running applications and how much memory they are using. Click on an application to end it (kill it)or uninstall it. Warning: Use this screen with caution to avoid accidentally removing applications.
  • Page 29 In the application list screen, click the “File Manager” icon:...
  • Page 30 Use the file manager to organize files. The icons across the top are for navigating to files on the SD card, USB 1 & 2 and to move up and down within the folders. Click on the menu button on the right side of the status bar to show the bottom menu. Use this to add a new folder or file.
  • Page 31 In the application list screen, click the “Music” icon: Artist List Now Playing Album List Playlists Song List Shuffle...
  • Page 32 Song Screen Shuffle Repeat Play List Artist Album Song Title Back Next Play / Pause...
  • Page 33 In the application list screen, click the “Video Player” icon: 1. Select SD card source or USB 2. Select video from list 3. Video screen will appear and video will start. - Click Video Size button to toggle between full screen and original size.
  • Page 34 In the Application List screen, click the “Gallery” icon: SD card and USB sources will automatically be scanned for pictures and videos. Touch the folder to open the picture browser. 3. Tap to select a picture or video. Touch and “Swipe” to view all the photos / videos...
  • Page 35 Pictures Touch screen and “Swipe” left or right to view the next or previous picture. Touch screen with 2 fingers and spread apart to zoom (or use +/- buttons). • Tap screen to show / hide menu • Select “Slideshow” •...
  • Page 36 In the Application List screen, click the “EMAIL” icon: Input email address and password. Click “Next”. Select type of email account.
  • Page 37 Email Setup (continued) Follow the prompts to set up your email account. Note: The values in the fields on the left are for illustration only. Set all fields to the appropriate settings for your account. Select “Next” to go to the next screen. If you are unsure about the settings, contact your email host for details.
  • Page 38 Email Setup (continued) Select how often to check for new email. Enable / disable email notification. Enter a name for this email account. Enter how you want your name to be displayed for outgoing messages. Select “Done”...
  • Page 39 In the Application List screen, click the “Clock” icon: Adjust brightness Enter Picture Browser Enter Music Player Return to Home screen Alarm Settings...
  • Page 40 Alarm & Time Settings Enter “Alarm Settings” screen (see page 36) Click “Add Alarm” Set Time Set time and alarm options...
  • Page 41 Samsung A8 S5PC110– 1GHz Display 9.7 inch Touch Panel, IPS Screen, Screen Resolution 1024*768 Flash ROM 512MB NAND Memory 512MB Mobile DDR Antenna Built-in Antenna Wifi 802.11 b/g/n G-Sensor Support Camera 2M pixel Front Camera Audio MP3, AAC Video MPEG4 H264, H263 Photo JPG, PNG...
  • Page 42 Touch Panel Capacitive type Touch Panel Speaker Built–in Speaker Headphone 3.5mm sSereo Jack Input/Output Internal Microphone SD / MMC TF Slot, capacity up to 32GB (support TF HC) USB 2.0 Device (Mini Port) x1, USB2.0 Host ( A type) x 2 HDMI MINI HDMI, Support 1080P Video Play 1.

  • Page 43: Fcc Compliance

    FCC Caution: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 44 Industry Canada Requirement: This Class B apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada. Other names of systems and products mentioned in these instructions are usually the registered trademarks or trademarks of the manufacturers who developed the system or product concerned.
