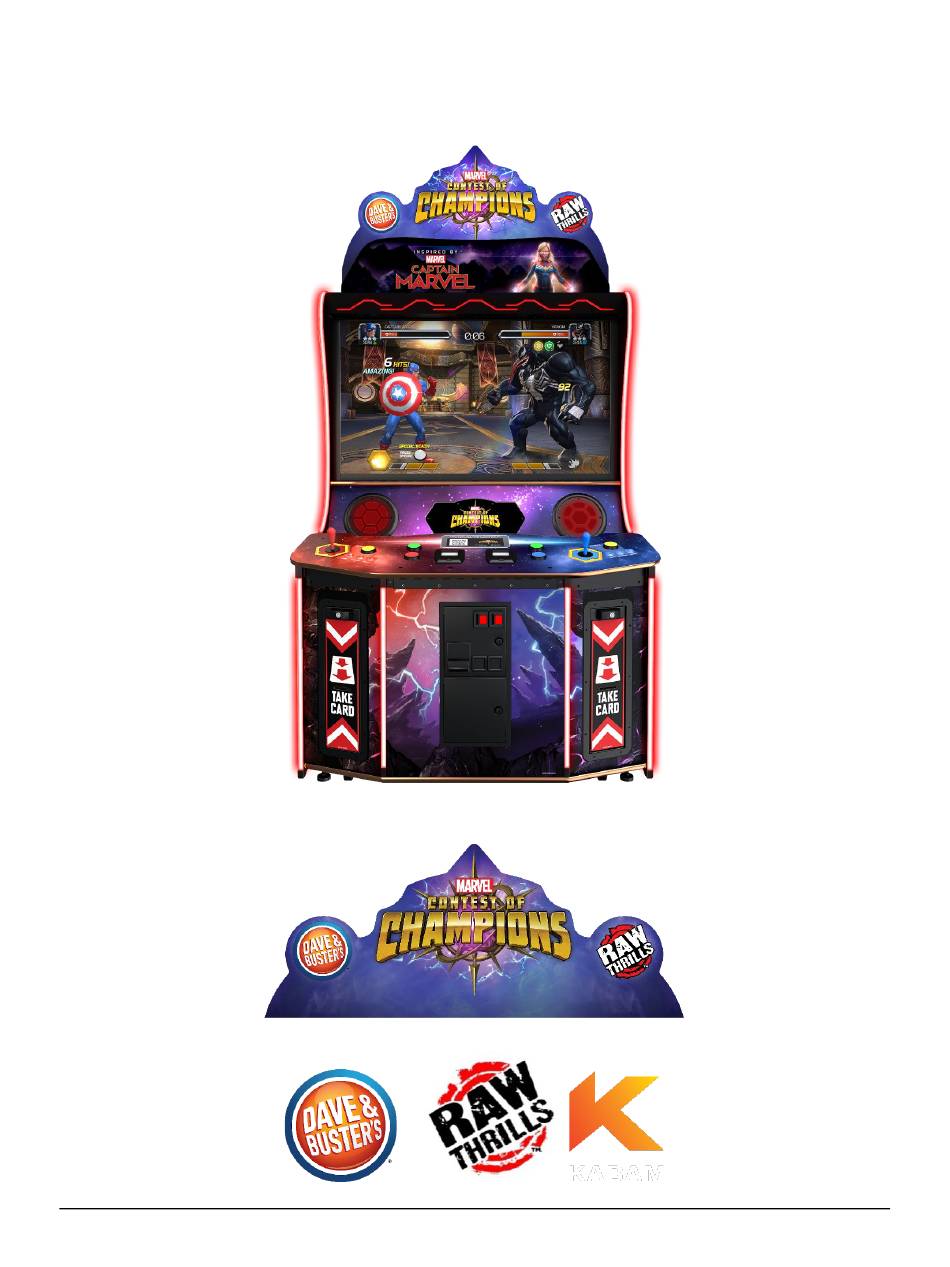

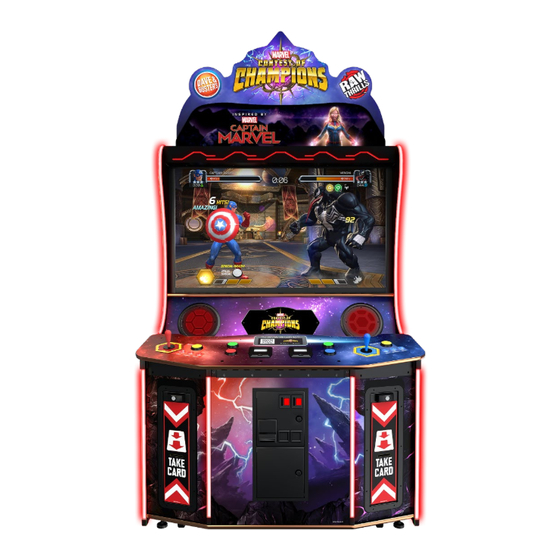

Marvel: Contest of Champions™
Operator's Manual
© 2019 MARVEL. MARVEL CONTEST OF CHAMPIONS SOFTWARE © 2019 KABAM GAMES, INC., A NETMARBLE
COMPANY. ALL RIGHTS RESERVED. ©2019 Raw Thrills, Inc. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Contest of Champions and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Marvel Contest of Champions

  • Page 1 040-00070-01 REV 5 Marvel: Contest of Champions™ Operator’s Manual © 2019 MARVEL. MARVEL CONTEST OF CHAMPIONS SOFTWARE © 2019 KABAM GAMES, INC., A NETMARBLE COMPANY. ALL RIGHTS RESERVED. ©2019 Raw Thrills, Inc. All Rights Reserved.
  • Page 2 This Page Left Blank Intentionally...

  • Page 3: Table Of Contents

    Marvel: Contest of Champions™ Table of Contents Operation ................................. 5 Safety ..................................5 Transporting ..............................5 Handling Components ............................ 5 Disconnect Power ............................5 Grounding ................................ 5 Electrical Shocks .............................. 5 Monitor ................................5 Power Cord ..............................5 Surge Suppressor ............................5 Water and Other Liquid Sources ........................
  • Page 4 Marvel: Contest of Champions™ Test Menu Navigation ............................. 12 Basic Functional Test on Initial Power Up ....................... 13 Test Menus ..............................13 Main Menu..............................13 Choosing the Right Pricing Adjustments for Your Location ................19 Cards and Card Dispensers ..........................20 Refilling Card Dispensers ..........................

  • Page 5: Safety

    Marvel: Contest of Champions™ Safety Operation Before operating game, read this manual. Failure to properly install and operate this game could result in Transporting malfunction or accident. Operate the game in accordance with the manual. The cabinet is very heavy. Because the monitor is high, the cabinet is also very top-heavy. Use appropriate care when moving or transporting cabinet.

  • Page 6: Water And Other Liquid Sources

    Marvel: Contest of Champions™ Water and Other Liquid Sources Do not install game near sprinkler or other water jet sources. Do not use water jet to clean game. Keep minimum clearance behind game and wall for proper ventilation but also prevent access of liquid from spills Connectors and sprays from entering ventilation holes.

  • Page 7: Product Specifications

    Marvel: Contest of Champions™ Product Specifications Electrical Power United States, International, and Japan Operating AC Current: 5/2.5 Amps Dimensions Voltage: 115/230 ~ VAC 50/60Hz 55” Cabinet Height: 105.25” (2.67 meters) Width: 54.75” (1.39 meters) Operating Temperature Depth: 32.50” (0.83 meters) 50 ⁰F to 104 ⁰F...

  • Page 8: Setup

    Marvel: Contest of Champions™ Setup Unpack Materials 1. Place the shipping crate on a flat, stable surface. 2. Cut the banding straps and remove the cardboard lid. 3. Lift off the large cardboard containers surrounding the cabinet assembly and remove any shipping cleats.

  • Page 9: 55" Cabinet Assembly

    Marvel: Contest of Champions™ 55” Cabinet Assembly Note: 2 people are required, and ladders are recommended. Marquee assembly is top heavy and can tip over! 1. Place cabinet in desired floor location. Remove upper back door and carefully place such that it will not fall over or be damaged.

  • Page 10: Card Reader Installation And Setup

    Due to the rising popularity of aftermarket debit card systems for cashless or coinless operation of amusement machines (i.e. Embed, Intercard, Semnox), this Marvel: Contest of Champions cabinet is equipped with UCL compatible harnessing to ensure that the installation process is easier and less prone to miswiring.

  • Page 11: Check Electrical Settings

    Marvel: Contest of Champions™ Check Electrical Settings 1. Verify the voltage of the AC outlet you will be plugging the game into. Startup Game 2. Verify the AC outlet ground connection is present and working. 1. Plug the line cord into an AC outlet.

  • Page 12: Diagnostics And Adjustments

    Marvel: Contest of Champions™ Diagnostics and Adjustments Service Panel The Service Panel is located behind the coin door and has four buttons that can be used to navigate the Test Menu system. There is also a USB on the Service Panel that can be used for software updates and audit downloads.

  • Page 13: Basic Functional Test On Initial Power Up

    Marvel: Contest of Champions™ Basic Functional Test on Initial Power Up 1. Enter the Input Test and verify all switch inputs are working. 2. Enter the Monitor Test and verify the monitor is working properly. 3. Enter the Sound Test and verify the audio works and is not distorted.
  • Page 14 Marvel: Contest of Champions™ Diagnostics This menu contains various tests you can run to ensure everything on the cabinet is working properly. DIAGNOSTICS INPUT TEST HARD DRIVE CHECK VIDEO TEST AUDIO TEST CABINET LIGHTS TEST METER TEST CARD DISPENSER TEST...
  • Page 15 Marvel: Contest of Champions™ Pricing Settings This menu allows for the customization of different pricing related settings. PRICING SETTINGS FREEPLAY CURRENCY INPUT CURRENCY TYPE SWIPE VALUE SWIPES TO PLAY MAX CREDITS SHARED CASHBOX EXIT Freeplay: No coins or swipes needed to play •...
  • Page 16 Marvel: Contest of Champions™ System Settings This menu allows you to adjust system settings. SYSTEM SETTINGS DATE & TIME EXIT • Date & Time: Set the date and time Audits This menu allows you to view a wide variety of statistics and information about the game.
  • Page 17 Marvel: Contest of Champions™ Resets This menu contains all available operator resets for the game. RESETS RESET CREDITS RESET CARDS RESET PRICING ADJUSTMENTS RESET GAME ADJUSTMENTS RESET GAME AUDITS RESET SYSTEM AUDITS RESET COIN AUDITS RESET ALL AUDITS RESET DISPENSERS...
  • Page 18 Marvel: Contest of Champions™ Volume This menu allows you to adjust the volume levels for the game. VOLUME GAME VOLUME ATTRACT VOLUME COIN VOLUME MINIMUM VOLUME EXIT Game Volume: Sets the in-game volume level • • Attract Volume: Sets the attract mode volume level Coin Volume: Sets the volume level of the coin in sound •...

  • Page 19: Choosing The Right Pricing Adjustments For Your Location

    5. Exit out of “Currency Input” menu. 6. While back in “Pricing Adjustments” menu a. Select “Coins to Play” and set the desired amount of coins per game of Marvel: Contest of Champions. b. After setting the coins per play, set “Coin Value” to the currency equivalent of your coin.

  • Page 20: Cards And Card Dispensers

    Marvel: Contest of Champions™ Cards and Card Dispensers Note: Refilling Card Dispensers Using damaged (bent, ripped, etc.) cards in the card dispenser(s) can cause damage to the dispenser(s). Note: Do not eject card hopper when refilling card dispensers, as this may damage the dispenser.

  • Page 21: Authorizing More Cards

    Marvel: Contest of Champions™ Authorizing More Cards 1. Remove the serialized RFID card included with your new box of cards. (See Image 1 Below) 2. Open the top coin door. 3. Enter the Test Mode by pressing the Test Button for two seconds.

  • Page 22: Pc Hardware

    Marvel: Contest of Champions™ PC Hardware Your Marvel: Contest of Champions™ uses a HP Elitedesk 705 G3 MT computer with a GeForce GTX 1050 graphics card. NOTE 1 WARNING: DO NOT ENTER THE BIOS SETTINGS MENU! Modifying the BIOS settings will cause your game to stop functioning.

  • Page 23: Pc Hard Drive Recovery

    Marvel: Contest of Champions™ PC Hard Drive Recovery Symptoms requiring a PC hard drive recovery include: File test reports bad or missing files. • • Game fails to finish loading during setup. • After resetting the AC power, an error is reported.

  • Page 24: Troubleshooting

    Marvel: Contest of Champions™ Troubleshooting Warning: Review the Safety section before making any adjustments to the game. Problem Possible Cause Solution Game not plugged in. Plug game into AC outlet. Game not turned on. Turn on main power switch. Check and replace fuse. See Game fuse is blown.
  • Page 25 Marvel: Contest of Champions™ Problem Possible Cause Solution To test a USB port, turn off the game, disconnect the device from the port, and then connect the game dongle to the port. PCB connected to faulty USB Neither buttons nor audio Reboot the game.
  • Page 26 Marvel: Contest of Champions™ Problem Possible Cause Solution Check external DC supply and Faulty power supply. the PC supply. Constant low audio hum. Check all ground wires in Open ground. cabinet. Ensure AC wall outlet is properly grounded Game does not load.
  • Page 27 Marvel: Contest of Champions™ Problem Possible Cause Solution Find dongle cable and reseat in Dongle missing or disconnected. USB port. Dongle Not Present Insert dongle cable in different Faulty USB port. USB port. Incorrect setting in Pricing Adjust pricing settings.
  • Page 28 Marvel: Contest of Champions™ Problem Possible Cause Solution Ensure the Smart Card Reader’s USB Cable Unplugged USB cable is securely plugged in. RFID Card Not Being Recognized Make sure you’re physically Card Too Far Away touching the RFID card to the Smart Card Reader.

  • Page 29: Technical Support

    Marvel: Contest of Champions™ Technical Support For an authorized distributor near you, check the Raw Thrills website at www.rawthrills.com Betson’s Raw Thrills Technical Support Hotline Phone: 1-800-753-2513 FAX: 1-201-438-5019 Email: rtsupport@betson.com 29 | P a g e...

  • Page 31: Electrical And Mechanical Illustrations

    Marvel: Contest of Champions™ Electrical and Mechanical Illustrations 31 | P a g e...
  • Page 32 1/4"-20 Thread Size, 1-1/2" Long MARVEL_CoC- Lower Back Door Assembly Lower_Back_Door_Assy MARVEL_CoC- Upper Back Door Assembly Upper_Back_Door_Assy Phillips Rounded Head Screws for McMaster-Carr - Sheet Metal, Zinc-Plated Steel, 90190A201 Number 8 Size, 1-1/4" Long MARVEL Contest of Champions Game Assembly (55")
  • Page 33 > Selective Hardware > 380-00005-01 - USB NFC Card Reader/Writer > 500-00131-01 - RGB LED Strip Reel MARVEL Contest of Champions - 2X 70CM / 42 LEDs (installed in #24) Main Cabinet Assembly - 2X 75CM / 45 LEDs (installed in #20)
  • Page 34 ITEM NO. PART NUMBER DESCRIPTION QTY. ITEM NO. PART NUMBER DESCRIPTION QTY. 601-00863-01 Main Cabinet McMaster-Carr - Zinc-Plated Steel Split Lock Washer for 1/4" Screw Size, 0.26" ID, 0.487" 91102A750 MARVEL_CoC- Marquee_Front_ Marquee Front Blocker Sub-Assembly McMaster-Carr - Medium-Strength Class 8.8 Steel Hex Head Screw, Zinc-Plated, M6 x 1 Blocker_Assy 91280A326 mm Thread, 16 mm Long...
  • Page 35 Zinc-Plated Steel SAE Washer for Number 8 90126A512 Screw Size, 0.188" ID, 0.438" OD McMaster-Carr - Steel Locknut with External-Tooth Lock Washer, 90675A009 Zinc-Plated, 8-32 Thread Size, 11/32" Wide MARVEL Contest of Champions Marquee Front Blocker Sub-Assembly ITEM NO. PART NUMBER DESCRIPTION QTY. 600-02413-01...
  • Page 36 ITEM NO. PART NUMBER DESCRIPTION QTY. 603-00853-01 Speaker Bezel 500-00167-01 (45 CM) Red Flexible LED Tape, w/ FOAM MARVEL Contest of Champions Speaker Bezel Sub-Assembly ITEM NO. PART NUMBER DESCRIPTION QTY. 600-02407-01 Mini Marquee LED Plate 500-00162-01 (35 CM) White Flexible LED Tape, w/ FOAM...
  • Page 37 Card Dispenser Decal 604-00036-01 T-Handle Lock Assembly 18-8 Stainless Steel Square-Neck McMaster-Carr - Carriage Bolt, 10-24 Thread Size, 5/8" 92356A243 Long McMaster-Carr - Low-Strength Steel Nylon-Insert 90631A011 Locknut, Zinc-Plated, 10-24 Thread Size MARVEL Contest of Champions Card Dispenser Door Sub-Assembly...
  • Page 38 P2_Joystick_Assy McMaster-Carr - Black-Oxide Steel SAE Washer for Number 10 97416A115 Screw Size, 0.219" ID, 0.5" OD McMaster-Carr - Low-Strength Steel Nylon-Insert Locknut, Zinc- 90631A411 Plated, 10-32 Thread Size, 3/8" Wide, 15/64" High MARVEL Contest of Champions Control Panel Sub-Assembly...
  • Page 39 Steel Phillips Rounded Head Screws, 6-32 90272A146 Thread Size, 3/8" Long NOT SHOWN: 500-00162-01 (5 CM) White Flexible LED Tape, w/ FOAM 810-00162-01 - USB Cable for Webcam MARVEL Contest of Champions Card Reader Module Sub-Assembly ITEM NO. PART NUMBER DESCRIPTION QTY. 600-02409-01...
  • Page 40 Steel Phillips Rounded Head Screws, 6-32 Thread Size, 90272A146 3/8" Long McMaster-Carr - Steel Locknut with External-Tooth Lock Washer, Zinc- 90675A195 Plated, 10-32 Thread Size MARVEL Contest of Champions AC Power Plate Sub-Assembly ITEM NO. PART NUMBER DESCRIPTION QTY. 600-02049-01...
  • Page 41 MARVEL Contest of Champions Marquee Assembly (BOM on next page)
  • Page 42 ID, 0.562" OD McMaster-Carr - Button Head Hex Drive Screw, Black-Oxide Alloy Steel, 10-32 Thread, 3" Long 91255A030 600-02364-01 Marquee Harness Bracket McMaster-Carr - Steel Locknut with External-Tooth Lock Washer, Zinc-Plated, 10-32 Thread Size 90675A195 MARVEL Contest of Champions Marquee Assembly BOM...
  • Page 43 Sheet Metal, Zinc-Plated Steel, 90054A196 Number 8 Size, 5/8" Long Standard Door Lock Assembly 150-00001-00 (for 3/4" Panels) Zinc-Plated Steel SAE Washer for McMaster-Carr - Number 8 Screw Size, 0.188" ID, 90126A512 0.438" OD MARVEL Contest of Champions Lower Back Door Assembly...
  • Page 44 Sheet Metal, Zinc-Plated Steel, 90054A196 Number 8 Size, 5/8" Long Standard Door Lock Assembly 150-00001-00 (for 3/4" Panels) Zinc-Plated Steel SAE Washer for McMaster-Carr - Number 8 Screw Size, 0.188" ID, 90126A512 0.438" OD MARVEL Contest of Champions Upper Back Door Assembly...
  • Page 45 18-AWG-GRN 703W-00/08 AC_N 18-AWG-WHT Designed: Date: ANSI D 2019/03/14 TITLE AC_EARTH 18-AWG-GRN Raw Thrills, Inc. Marvel: Contest of Champions 5441 Fargo Ave. rawthrills.com ADDED P/Ns 2019/03/18 Skokie, IL 60077 tel: 847.679.8373 System Diagram fax: 847.679. INITIAL 2019/03/14 SHEET SHEETS DESCRIPTION...
  • Page 46 P1 CARD DISPENSER LIGHT LIGHT Designed: Date: ANSI D 2019/03/14 TITLE COIN 1(SW) COIN 2(SW) Raw Thrills, Inc. Marvel: Contest of Champions 5441 Fargo Ave. rawthrills.com ADDED P/Ns 2019/03/18 Skokie, IL 60077 tel: 847.679.8373 System Diagram fax: 847.679. INITIAL 2019/03/14 SHEET...
  • Page 47 [CA-4797] [CA-4797] LED STRIP LED STRIP LED STRIP Designed: Date: ANSI D 2019/03/14 TITLE Raw Thrills, Inc. Marvel: Contest of Champions 5441 Fargo Ave. rawthrills.com ADDED P/Ns 2019/03/18 Skokie, IL 60077 tel: 847.679.8373 System Diagram fax: 847.679. INITIAL 2019/03/14 SHEET...
