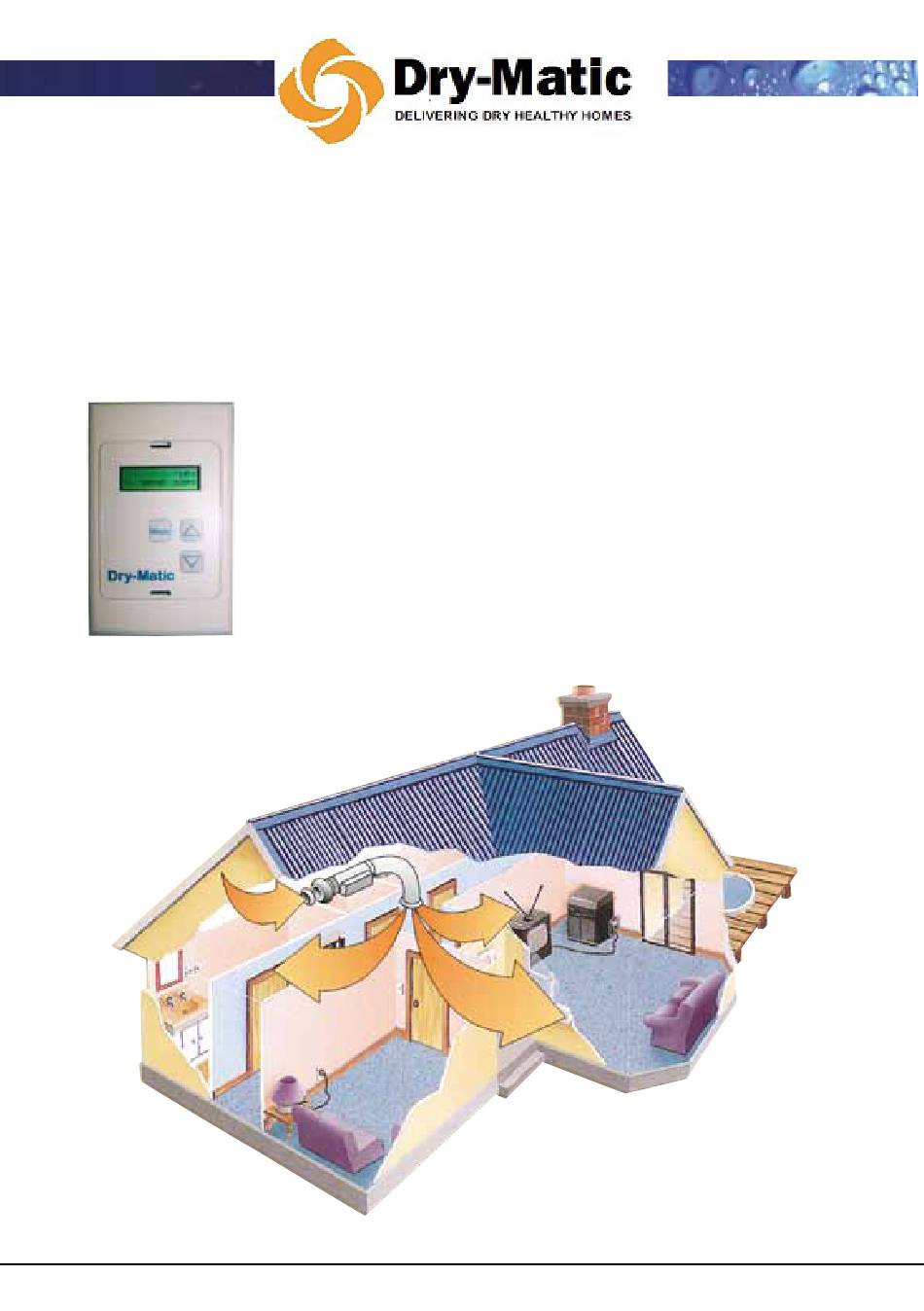

Dry-Matic

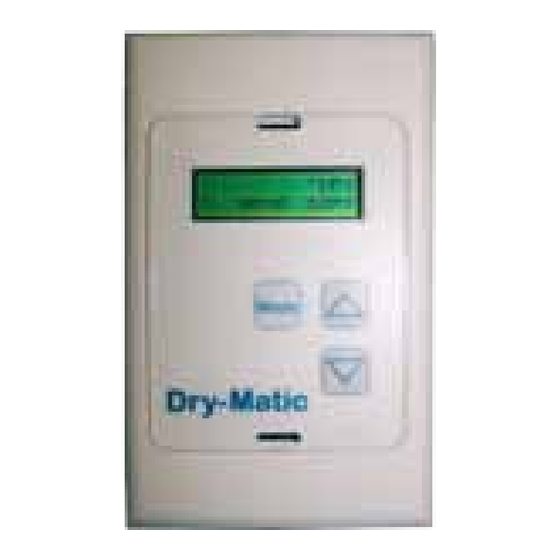

Digital controller
DM - Operating Instructions, Installation Instructions, Wiring diagrams
with Digital Controller
• User Operating Instructions p2-5
• Installation Instructions
• Setup Instructions
• Wiring Diagram
• Warranty
p6-9
p10-15
p13
p14
p16
Version 3.1.765 August 2019
1
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Dry-Matic DM07D
- Page 1 Dry-Matic with Digital Controller • User Operating Instructions p2-5 • Installation Instructions p6-9 • Setup Instructions p10-15 • Error Codes • Wiring Diagram • Warranty Digital controller DM - Operating Instructions, Installation Instructions, Wiring diagrams Version 3.1.765 August 2019...
- Page 2 • This unit requires installation by a registered electrician. System Benefits Congratulations on purchasing a Dry-Matic. Your Dry-Matic is designed to provide whole home ventilation 24hrs per day 7 days per week. This provides the benefits of: •...
- Page 3 Optional Summer Vent Kit The Dry-Matic Summer Ventilation Kit is an optional add-on for Digital Dry-Matics. r time ventilation when it is hot in the ceiling by providing a DM controller...
- Page 4 Dry-Matic User Operating Instructions Your Dry-Matic is essentially fully automatic in operation once set up/commissioned to suit your home. The commissioning set up process fine tunes your Dry-Matic in all or some of the following Modes: - when the attic temperature is cooler than the house...
- Page 5 Heat Rec heat capacity 18:30 House Temperature T F- Fan Bars indicate fan Time speed Programming Mode Mode button Adjustment buttons Dry-Matic digital controller shown in normal operating mode DM - Operating Instructions, Installation Instructions, Wiring diagrams Version 3.1.765 August 2019...
-
Page 6: Installation Procedure
Dry-Matic Installation Instructions It is recommended these units are installed by a preferred installer, please contact us for a list in your area. Installation instructions are a guide only. All electrical connections are subject to NZ law. Pre-Installation checks Before starting the installation, check the site & establish the best position/s of... - Page 7 Dry-Matic Installation Instructions (continued) 2. Assembly of Unit It is suggested that this is done in a clear space on the floor. FAN: Mount fan brackets to side of fan. HEATER (on heated models): Fit to inlet of fan using 4 screws provided (note airflow direction for fan is shown by an arrow on the terminal cover).
- Page 8 Dry-Matic Insta DM - Operating Instructions, Installation Instructions, Wiring diagrams Version 3.1.765 August 2019...
- Page 9 allation Schematic DM - Operating Instructions, Installation Instructions, Wiring diagrams Version 3.1.765 August 2019...
- Page 10 DM01D Heater Kit Y/N? (as below) Change to N - This removes the heater options from all Menus DM07D Use Default settings unless Fan Max needs to be adjusted. DM15D Use default settings unless client would like Fan Speed Heat increased. Operating Mode...
- Page 11 (requires at least a second grille) 50% for houses up to 300m (requires at least a second grille) For houses larger than this we recommend additional Dry-Matic units. 3. Min Fan S p eed (default 25%) range 20-35 Provides the ability to adjust fan minimum speed, we recommend a setting of 25% for this.
- Page 12 Dry-Matic Commissioning Instructions (continued) 7. Cool Recover Y/N (default N) (up button to change, mode to enter) This mode provides ventilation when house is warm and air is cooler outside. It is manual, as there are times when house has been heated, but is cool outside, hence the limit if the attic temperature is below 15°C.
-
Page 13: Error Codes
Installer’s recommended settings for your Dry-Matic: Installer’s setting Default setting 1. Heater Kit Heater ON time: ..: ..(19:00) Heater option not available for DM01 Heater OFF time: ..: ..(07:00) 2. Max Fan Speed ..(35%) 3. Min Fan Speed ..(25%) 4. Fan Speed Heat ..(32%) Heater option not available for DM01 5. - Page 14 Green motor body to cor 18:30 Blue For heated units only Supplied cable for the Brown Mode duct heater for DM07D Green Grey is three core. DM15D Blue is four core - wire to Brown earth, P3 & N. Note...
- Page 15 Attic Controller The attic controller must be mounted vertically with pack glands downwards. For digital controller, mount Cat5 cable to digital vertically with pack glands wall controller downwards. Isolator switch Temperature sensor wire plugs in here and comes Mount vertically with pack through here glands downwards Electrical...
- Page 16 Conditional Guarantee Dry-Matic Warranty Period 3 years from date of first retail purchase (see warranty) Guarantee Period 1 year money back conditional guarantee The goods carry a one year money back conditional guarantee, effective from the installation date. The purchaser agrees to trial the unit for a minimum of 90 days during colder weather prior to activating the money back guarantee.
Need help?
Do you have a question about the DM07D and is the answer not in the manual?
Questions and answers
how do i turn it off
To turn off the Dry-Matic DM07D, follow these steps:
1. Press and hold the Mode button until “Entering Menus” appears and continue holding until “User Setup” appears.
2. Use the up arrow to navigate to the “Heater enabled Y/N” setting.
3. Set “Heater enabled” to “N” to disable the heater.
4. Alternatively, use the time clock feature to program the heater to be off during certain hours or set it to “off” mode.
This will stop the heater from operating.
