Summary of Contents for Biketronics TITAN

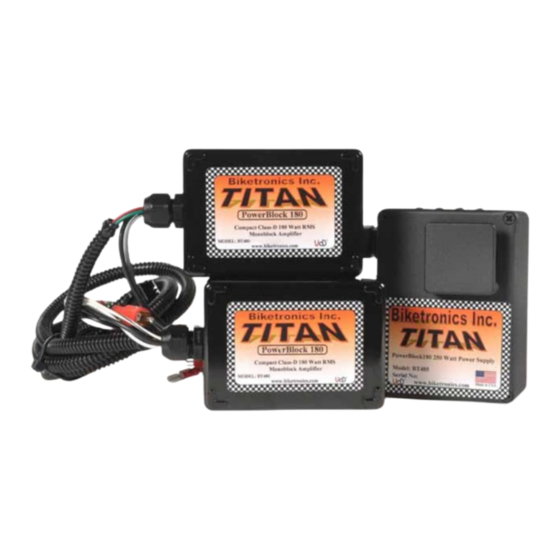

- Page 1 Biketronics Inc. TITAN POWER BT480 Audio Amplifier Biketronics Inc. Made in USA USA Toll Free: (800) 735-2419 International: (208) 875-2645 Lifetime Warranty www.biketronics.com...
- Page 2 CAUTION! The Titan Amplifier is very powerful and care must be taken to protect hearing as well as conform to any noise ordinance your area may be subject to. Using Titan at extreme volume levels may cause hearing damage! Please exercise good judgment.
- Page 3 Page 3 of 8...
- Page 4 If you are not using cigar-lighter hot, ensure the circuit used is hot when key is in both “acc” and “on” position. For aftermarket radio: Locate the “amp remote” wire on back of radio. Make connection from radio to Titan Amp Enable Wire #1. Page 4 of 8...
- Page 5 Biketronics) For aftermarket radio: No transformer is required when using radio low-level outs. Connect Titan’s RCA connectors to the RCA jacks on the back of radio generally marked “Audio Out Front.” NOTE: do not drive amp RCA’s with higher than line level voltages. This will result in damage not covered by warranty.
- Page 6 Step 5 final Step: power Connection to Titan Amp (Wire #3 & Wire #6) Use fused supply lead to connect battery to amp. Make sure fused end is closest to battery! Starting at front of tank, route amplifier end of supply lead between tank and frame.
-
Page 7: Troubleshooting
This situation is perfect for the limited charging system of a motorcycle. The Titan power amp provides clean power, with 180 watts RMS per channel into four ohms, and with distortion as low as 0.05% THD. - Page 8 Biketronics Inc. reserves the right to change the design of its products without any obligation to modify any previous product.
