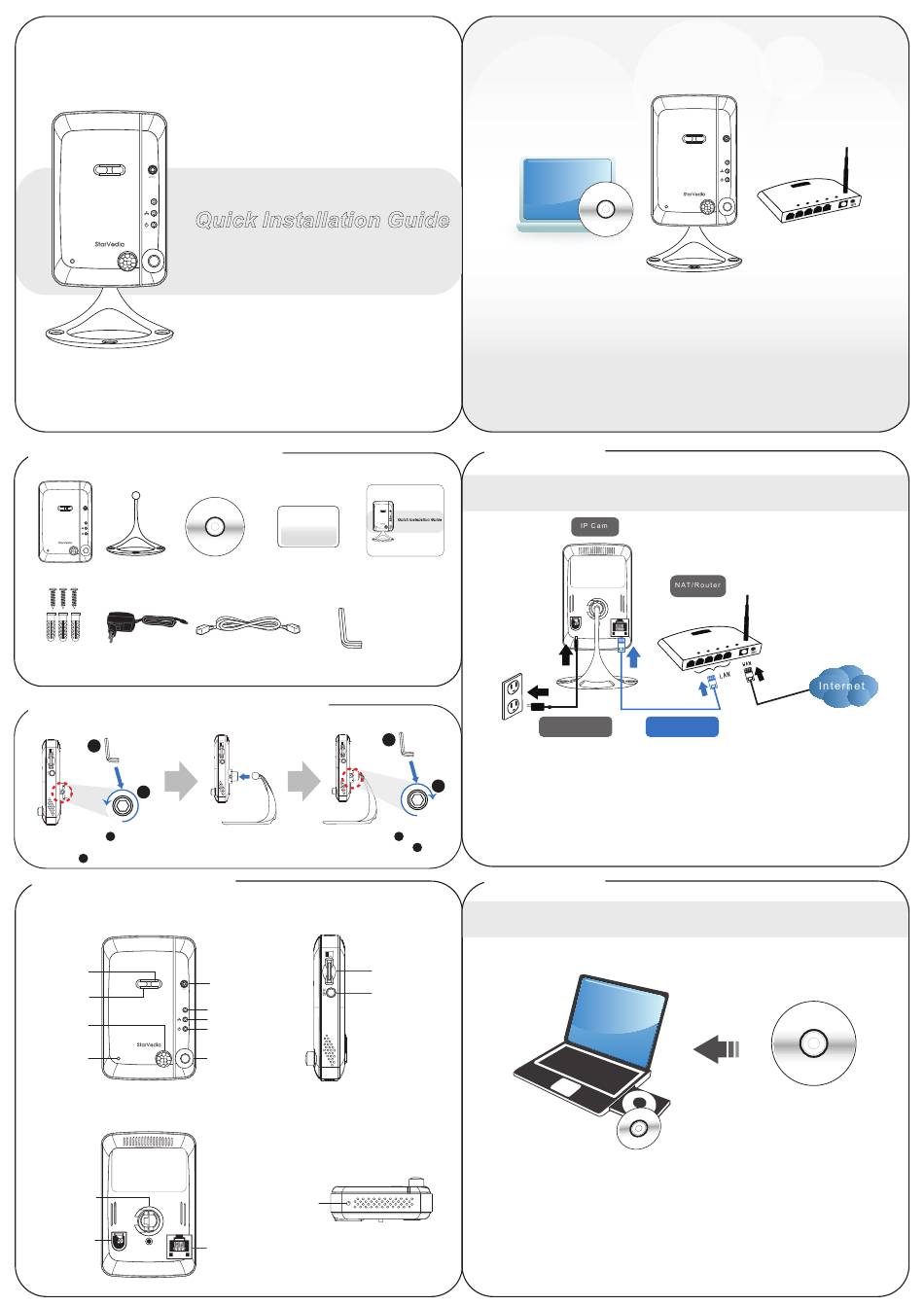

Farlink FL701 Quick Installation Manual

SD

Quick Installation Guide

Package Contents

SD
Bracket
IP Cam Installation CD
Anchors
P o w e r A d a p t e r
and Screws

Hardware Installation

A
B
Use "Allen Key" Embed the bracket in the
A
counterclockwise to loosen mounting hole, and adjust it
the screw a little. to the appropriate angle.
B

Product View

[ Front View ]
Night Time Lens
Day Time Lens
SD
PIR
Microphone
[ Back View ]
Bracket Screw Jack
NET
NET
Power Jack
DC/IN
Day&Night IP Camera
ID
Password
ID/Password Card
E t h e r n e t C a b l e A l l e n K e y
Use "Allen Key"
to tighten the screw.
[ Right Side View ]
Micro-SD Card Slot
WPS Button
Speaker Jack
(Wireless model)
Micro-SD Card
Indication LED
Ethernet Indication LED
Status Indication LED
IR LED
[ Bottom View ]
Reset Button
Ethernet Jack

Installation Guide

Step 1.

Connect IP Cam to Internet

SD
Quick Installation Guide
Day&Night IP Camera
QIG
Power Adapter
A
1. Connect the power adapter.
2. Connect the Ethernet cable to the NAT/Router.
B
3.The IP camera will get IP address from the NAT/Router (with DHCP
enabled) automatically and connect to internet. Check if the red
LED of IP camera is always on. If it's blinking, please check step 1
clockwise
A
and step 2 again.
B

Step 2.

Install CamView Software

Put the Installation CD into your computer(with Windows XP/Vista/7).
After the setup menu opened, select "Install Management Software" and
follow the directions as prompted.
WPS
SD
NET
NET
DC/IN
Ethernet Cable
Installation CD
