Description
bc-12er
The bc-12er is a 12 channel receiver designed for the brixlcontrol system.
Supplying 12 universal channels, the bc-12er is the ideal unit for smaller models or
trailers. Multiple units can be linked by either cable or infrared connections.
The 12 universal channels can be used as an output to drive servos, LED´s or PWM
controlled drivers. Some of the channels can also be used as inputs to be
connected with sensors for telemetry purposes or as inputs for switches.
Technical data bc-12er
Supply voltage
Outputs (universal)
Maxmimum load (output)
Analogue input (switch)
PWM output
PWM output for bc-msII
Dimensions
Ground -
Plus +
Signal
Connector for antenna
bc-20plus
The bc-20 plus is a 20 + 12 output receiver designed for the brixlcontrol system.
This receiver is equipped with 20 universal channels that can be used as an output
to drive servos, LED´s or PWM controlled drivers. Some of the channels can also
be used as inputs to be connected with sensor for telemetry purposes or as
inputs for switches. The bc-20 plus offers additional 12 outputs for on/off purposes
with an internal driver for a maximum load of 100mA per output.
1
1

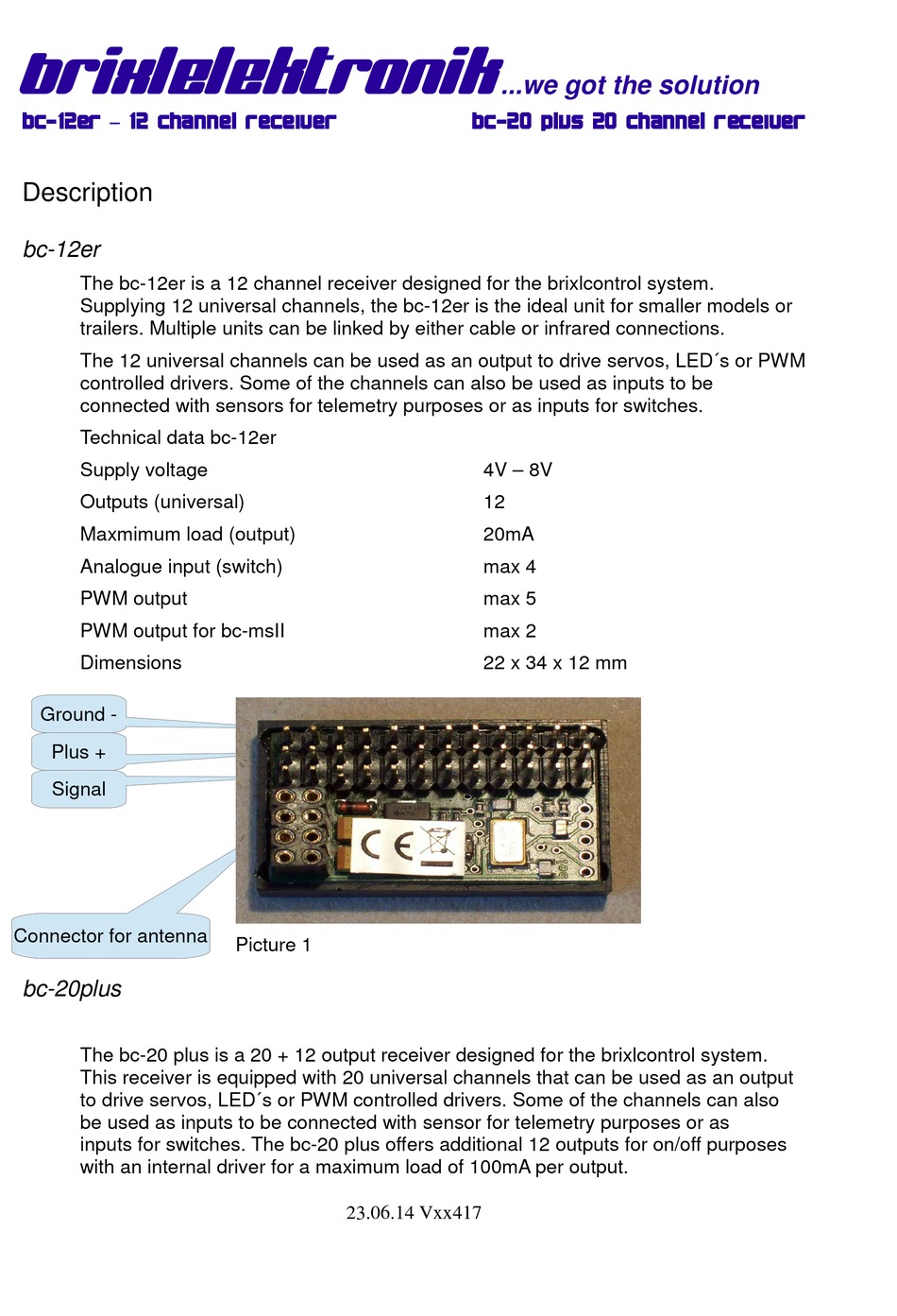

Picture 1
23.06.14 Vxx417
...we got the solution
bc-20 plus 20 channel receiver
4V – 8V
12
20mA
max 4
max 5
max 2
22 x 34 x 12 mm
12
Advertisement
Summary of Contents for Brixlelektronik bc-12er
- Page 1 The bc-12er is a 12 channel receiver designed for the brixlcontrol system. Supplying 12 universal channels, the bc-12er is the ideal unit for smaller models or trailers. Multiple units can be linked by either cable or infrared connections. The 12 universal channels can be used as an output to drive servos, LED´s or PWM controlled drivers.
- Page 2 ...we got the solution – bc-12er 12 channel receiver bc-20 plus 20 channel receiver Technical data bc-20 plus Supply voltage Please refer to the remarks at the end of this document for information Outputs (universal) Outputs on/off Maxmimum load (universal output)
- Page 3 ...we got the solution – bc-12er 12 channel receiver bc-20 plus 20 channel receiver Please read and follow the hints and remarks on the last pages of this manual concerning mounting and power supply! Functionality of outputs Some of the universal outputs can be configured during the programming process as PWM outputs or inputs for sensors etc.
-
Page 4: Installation
...we got the solution – bc-12er 12 channel receiver bc-20 plus 20 channel receiver IR = IR LED connector with integrated resistor I = IR sender or receiver D = Display N = Multiswitch/Nautic Module LED1 = Status LED... - Page 5 LED. Funktion: Status [Feature: Status] With this feature you can assign a number to the the bc-12er module. This is required for cable linked modules for remote programming. This module number must be unique in one model and is only required for programming. In normal operation all linked modules will get the information sent out by the transmitter.
- Page 6 The BEC voltage will be monitored and this will [minimum voltage] define the minimum voltage. A voltage below the programmed value will trigger the alarm on the transmitter (bc-12er) Min.Spannung 5.00..15.0 The BEC voltage will be monitored and this will [minimum voltage] define the minimum voltage.
- Page 7 ...we got the solution – bc-12er 12 channel receiver bc-20 plus 20 channel receiver +/- 125% Connected device will set to the programmed position Neutral signal will be provided (1.5ms) Ausschaltwert Defines the position of the connected device during park...
- Page 8 Begrenzung mit Defines the input device that controls the limitation [limitation with] (input devices connected to the bc-12er can also control the limitation] Ebeneschalter Defines the input device on the transmitter that [Level control]...
- Page 9 ...we got the solution – bc-12er 12 channel receiver bc-20 plus 20 channel receiver the stick movement MultiplikatorP 0.2..2.00 Stick movement multiplied with MultiplikatorP is [Multiplier positive] movement of the connected device(positive) MultiplikatorM 0.2..2.00 Stick movement multiplied with MultiplikatorM is...
- Page 10 ...we got the solution – bc-12er 12 channel receiver bc-20 plus 20 channel receiver +/- 125% Connected device will be set to the programmed position Neutral signal will be provided (1.5ms) Ausschaltwert Defines the position of the connected device during park...
- Page 11 ...we got the solution – bc-12er 12 channel receiver bc-20 plus 20 channel receiver Maximalwert -100..125% Maximum output value for the conncted device [max. value] Minimalwert -125..100% Minimum output value for the conncted device [Min.value] Auf.Geschw. 1..200 Maximum speed in up direction [Speed up] Abw.Geschw.
- Page 12 ...we got the solution – bc-12er 12 channel receiver bc-20 plus 20 channel receiver Ausschaltwert Defines the position of the connected device in park mode halten Current position will be held [hold] 1..6 Set position Funkabrisswert Defines the position of the connected device when the...
- Page 13 ...we got the solution – bc-12er 12 channel receiver bc-20 plus 20 channel receiver Neutral signal will be provided (1.5ms) Ausschaltwert Defines the position of the connected device during park mode [switch off value] (choosing and connecting to new model with transmitter)
- Page 14 ...we got the solution – bc-12er 12 channel receiver bc-20 plus 20 channel receiver [..Signal off] Offset li -125%..+125% Defines the offset of the connected device on the [offset left] right side Offset re -125%..+125% Defines the offset of the connected device on the...
- Page 15 ...we got the solution – bc-12er 12 channel receiver bc-20 plus 20 channel receiver Switch 2 E(down) = Exit 4 USM-RC-2 Beier Soundmodule (please note sequence of the switches) Switch 1 A(up) = Switch 8 up Switch 1 E(down)
- Page 16 ...we got the solution – bc-12er 12 channel receiver bc-20 plus 20 channel receiver Funkabrisswert Defines the status of the output device when the signal is [fail safe] lost or the transmitter is switched off Gemerkt Last status of the connected device before...
- Page 17 ...we got the solution – bc-12er 12 channel receiver bc-20 plus 20 channel receiver EIN Zeit/Nachlauf Used with AUS/Zeit for flash options. [On time] If AUS Zeit/Pause is defined this option will set the on-time of the output. If AUS/Zeit is set to 0 this value will define the time the output will remain on after the input device is set to off.
- Page 18 Funktion: Eingang Schalter/Signal [Feature: Input Switch/Signal] A switch or a signal can be fed in the bc-12er. Depending on the voltage/signal on this input the modules can use this like an input from the transmitter. 0V will create -125% and voltages higher than 2V will create +125% on the assigned letter. n-z can be used on the same bc-12er module and n-x will be transmitted also to 23.06.14 Vxx417...
- Page 19 ...we got the solution – bc-12er 12 channel receiver bc-20 plus 20 channel receiver modules wich are linked with infrared. Please note that input voltages should not be higher than 3.3V. Add a 10k resistor for protection purposes. If an open collector output (e.g. brake lights from ESC) is connected to these inputs, a pull up resistor of 5k to +BEC might be necessary.
- Page 20 Funktion: IR-Sender [Feature: IR-Transmitter] This fature can be enabled on output 12 on the bc-12er. The bc-20er is equipped with a dedicated output for an ir led with integrated resistor. All input devices will be transmitted except y and z.
- Page 21 ...we got the solution – bc-12er 12 channel receiver bc-20 plus 20 channel receiver Please note that no infrared receiver should be connected during programming. For programming an antenna or a cable connection must be used. Funktion: Display [Feature: Display] A 0.9“...
- Page 22 ...we got the solution – bc-12er 12 channel receiver bc-20 plus 20 channel receiver [Empf.konfig] Receiver in programming mode [Funkabriss] Connection lost, receiver in fail safe mode [geparkt] Receiver in park mode Vers Version number of hard- (12) and software (417)
- Page 23 ...we got the solution – bc-12er 12 channel receiver bc-20 plus 20 channel receiver 23.06.14 Vxx417...
- Page 24 ...we got the solution – bc-12er 12 channel receiver bc-20 plus 20 channel receiver Remarks: Antenna Never connect or disconnect the antenna while the receiver is powered up! This might destroy the modules. The colour coded cable of the antenna is facing away...
- Page 25 ...we got the solution – bc-12er 12 channel receiver bc-20 plus 20 channel receiver Display/Infrared link The bc-12 plus supports either a display connected to output 12 or the infrared connection . If the display is disabled the infrared connection will be enabled automatically.
