Summary of Contents for Multisensory Fitness SMART

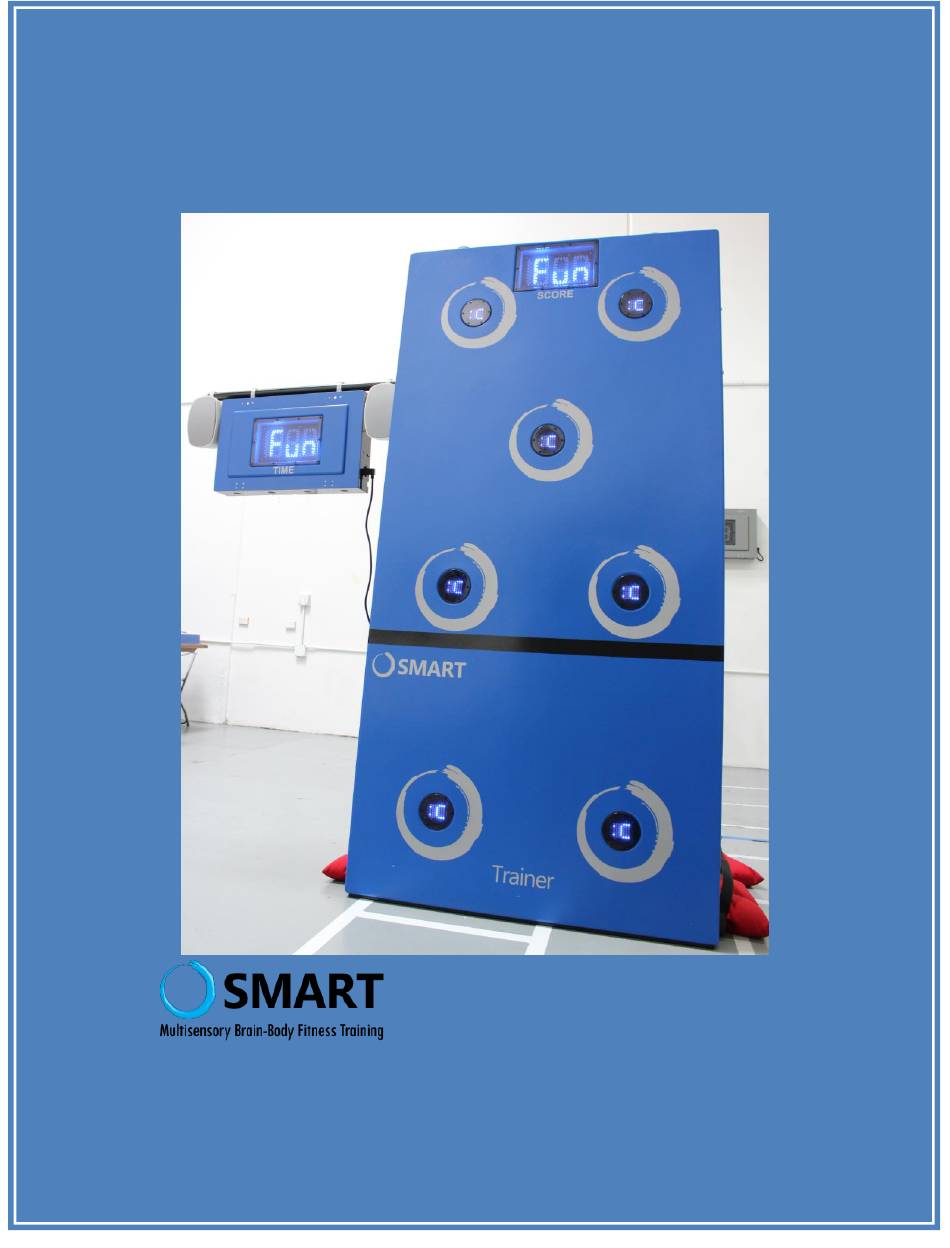

- Page 1 SMART Multisensory Fitness Training One Station Portable Set-up Manual Revision 1.2 2014...
- Page 2 Unlike other fitness equipment which may require additional insurance, SMART ProTrainer and SMART Trainer have been approved by the Fitness Insurance Industry for use under general liability insurance. Please check with your insurer to confirm insurance laws in your state.
-
Page 3: Table Of Contents
Adding Filler for first time use only ....................... 5 Chapter 2 .................................. 6 SMART Portable 1 Assembly Instructions ....................6 Unpack your SMART Portable 1 System ....................6 Set-up the Station ..........................7 Fill Systems with Pine Pellet ........................8 Set-up the Master Control Box (MCB) .................... -
Page 4: Chapter 1
Blue funnel Filler plug tool Ball kit containing balls, noodles, bean bags, etc. Required #1 flat head screwdriver 5 x 35lb Sand bags (Can be ordered from Customer Service) © 2014 Multisensory Fitness, Inc. • www.multisensoryfitness.com... -
Page 5: Adding Filler For First Time Use Only
Set up time 15 minutes if not filling the station. 1 hour if filling the station. One or 2 adults For operating instructions, refer to the following web sites: http://multisensoryfitness.com/resources/smart-programming-manuals/ http://www.youtube.com/MultisensoryFitness © 2014 Multisensory Fitness, Inc. • www.multisensoryfitness.com... -
Page 6: Chapter 2
Chapter 2 SMART Portable 1 Assembly Instructions Unpack your SMART Portable 1 System 1. Lay out the station on floor face down in the blanket bag it was shipped in. Use this bag to transport the station at all times. -
Page 7: Set-Up The Station
5 The station is now self-standing. 1 To carry the system to where it is needed for play, stand behind it and lift it by the two target cups on the back. The systems weighs 102lbs. © 2014 Multisensory Fitness, Inc. • www.multisensoryfitness.com... -
Page 8: Fill Systems With Pine Pellet
4. Repeat at the top two openings. 5. Shake the system to ensure the pellets settle as much as possible. 6. Close the caps tightly using the Filler Plug Tool. © 2014 Multisensory Fitness, Inc. • www.multisensoryfitness.com... -
Page 9: Set-Up The Master Control Box (Mcb)
3. Clip both speakers on the pipe. (One on each side of the Master Control Box) 4. Using you flat head screwdriver, open the MCB face. © 2014 Multisensory Fitness, Inc. • www.multisensoryfitness.com... - Page 10 5. Reach in to access the speaker wires. 6. Pull both white speaker cables through rear holes of RDB 7. Plug cables into speakers. 8. Unwind the panel cable from the station. © 2014 Multisensory Fitness, Inc. • www.multisensoryfitness.com...
-
Page 11: Connect Station By Plugging The 8 Pin Connector From The Station Into The Power Interconnect Board
Power interconnect space #5 is for connecting the display board located in the cover of the master control box. Power interconnect space #6 connects to the 12VDC power supply. Remove the Remote Controls from the Master Control. © 2014 Multisensory Fitness, Inc. • www.multisensoryfitness.com... -
Page 12: Verify That System Powers Up Correctly
3. The system will run a powering up program and you will know all is well when the system welcomes you to SMART. © 2014 Multisensory Fitness, Inc. • www.multisensoryfitness.com... -
Page 13: Moving The System To A New Location
Remove the MCB and the speakers and place them back in the box or on a Dolly. Remove the horizontal pole and place it in its clips on the back of the station. © 2014 Multisensory Fitness, Inc. • www.multisensoryfitness.com... - Page 14 Flip the system on its side, using two people, lift it onto the dolly Have one person on each end roll it to its next location. Load the sand bags and the box onto the second dolly © 2014 Multisensory Fitness, Inc. • www.multisensoryfitness.com...
