Summary of Contents for FISBA READYBeam

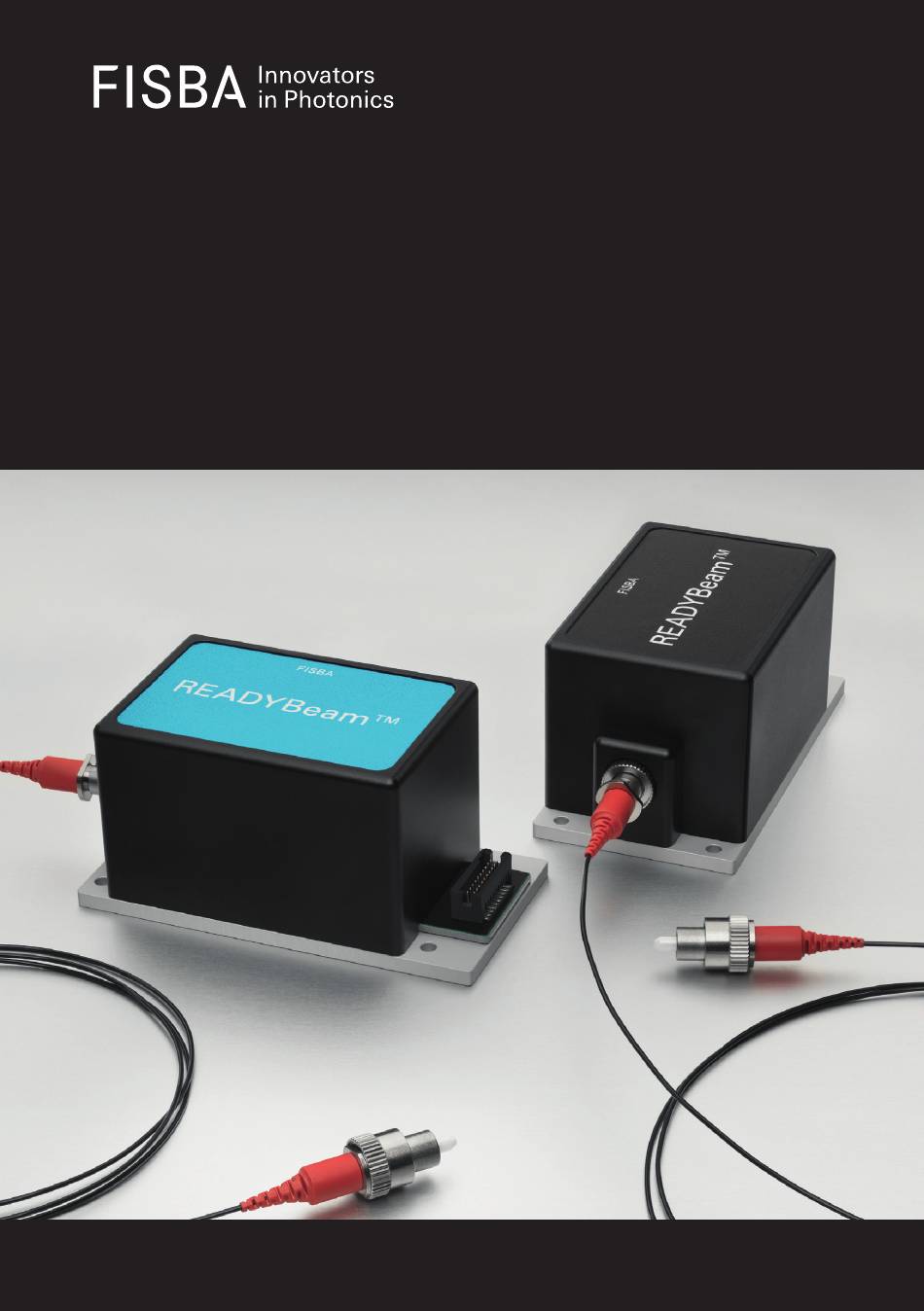

- Page 1 Technical Instruction FISBA READYBeam Compact multi-wavelength laser source January 2020...
-
Page 3: Table Of Contents
1.5.1 Limits of the warranty Technical system Laser module Installation and commissioning 2.2.1 Unpacking and checking for visible damage 2.2.2 Installation 2.2.3 Operating the FISBA READYBeam 2.2.4 Digital operating with the software application 2.2.5 Software interface 2.2.6 Analog controlled operation... -
Page 4: Safety
Safety Explanation of symbols This symbol is used for all points in these operating instructions to which special attention is to be paid so that all directives, regulations, instructions and the correct work sequence are observed, and to prevent minor or serious damage to the laser system or plant. - Page 5 However, in this case the following requirements apply to the protective cover: · The protective cover must be appropriate to adequately shield the laser radiation. It is therefore necessary to use laser safety glass or laser safety film for viewing windows. ·...
-
Page 6: Sécurité
Sécurité 1.2.1 Explication des symboles Dans ce mode d’emploi, ce symbole indique qu’une attention particulière est requise, afin d’observer l’ensemble des directives, réglementations et consignes, ainsi que la séquence de travail correcte pour éviter tous dommages mineurs ou importants au système laser ou à... - Page 7 Système laser protégé dans une enceinte Une protection adaptée garantit que les personnes ne sont pas exposées au rayon- nement laser. Ainsi, la classe du laser est baissée et il est possible de travailler avec la configuration fermée, sans limitations ou mesures supplémentaires. Toutefois, dans ce cas, les exigences suivantes s’appliquent à...
-
Page 8: Warning And Information Labels
· Les équipements brillants et réfléchissants doivent être enlevés de la zone laser ou recouverts de manière appropriée. Les fenêtres et les murs réfléchissants doivent également être recouverts d’un matériau de faible inflammabilité. Warning and information labels The following warning labels are fitted to laser and processing head: VISIBLE LASER RADIATION VISIBLE LASER RADIATION AVOID EXPOSURE TO BEAM... -
Page 9: Warranty Conditions
1.5.1 Limits of the warranty No warranty of the suitability of the product for specifi c applications is provided. FISBA is not liable for indirect, direct or consequential damages caused by the use of this product. Technical system The laser module emits laser radiation with different wavelengths. Combination of different laser diodes can emit radiation in the UV, VIS and/or NIR range. -
Page 10: Installation And Commissioning
Check the completeness of the delivery and check that all the items supplied are in good condition. In case of errors please contact FISBA AG (readybeam@fisba.com). If possible, keep the packaging in which the laser system was supplied. It will then be possible to pack the unit in its original packaging and transport it safely in case of repair. -
Page 11: Software Interface
% of the max. laser power 3. Switch the Laser on/off with Digital Enable 1, 2 or 3 4. Enter the command with «Write Config» Button The READYBeam software is provided for download at fisba.com/readybeam-software 2.2.6 Analog controlled operation ·... - Page 12 Appendix Pin configuration and power values Connector: Samtec SFSD-10-28G24.00SR Enable Laser: low = 0V, high = 3.3V Analog In: 0V … 3.3V --> 10% ...100% of Laser power Power: +12V … + 24V max. 4A Pin 1 is marked on the connector with arrow (not notch) Pin 1 Analog In- Laser red Pin 2...
- Page 13 Module RS-485 Power RS-485 Electric Cable Power supply Power Figure 1...
- Page 14 Technical Specifications FISBA READYBeam™ Data sheet FISBA READYBeam Technical Specifications Optical parameters Wavelengths 405 nm 488 nm 638 nm 450 nm 520 nm 660 nm Min. optical power from ≥ 40 mW ≥ 30 mW ≥ 40 mW ≥ 40 mW ≥...
- Page 16 Switzerland FISBA Photonics GmbH Schwarzschildstrasse 10 12489 Berlin Germany FISBA LLC 6296 E. Grant Rd Suite 150 Tucson, AZ 85712 United States 9F-4 FISBA (Shanghai) Co., Ltd. World Square Building, No. 855 Pudong South Rd. Shanghai China fisba.com | readybeam@fisba.com...
