12 Meridian 210 Streamer User Guide
Installing in a rack tray
A 210 Rack Tray is available separately, to allow two 210s to
be mounted in a standard 19" rack. The Rack Tray is supplied
with the necessary screws.
The MAC address of each 210 is provided on the base of the
unit, and we recommend that this is recorded on the tray as it
is installed so that it can be identified in future. Adhesive labels
are supplied with each Rack Tray for this purpose.

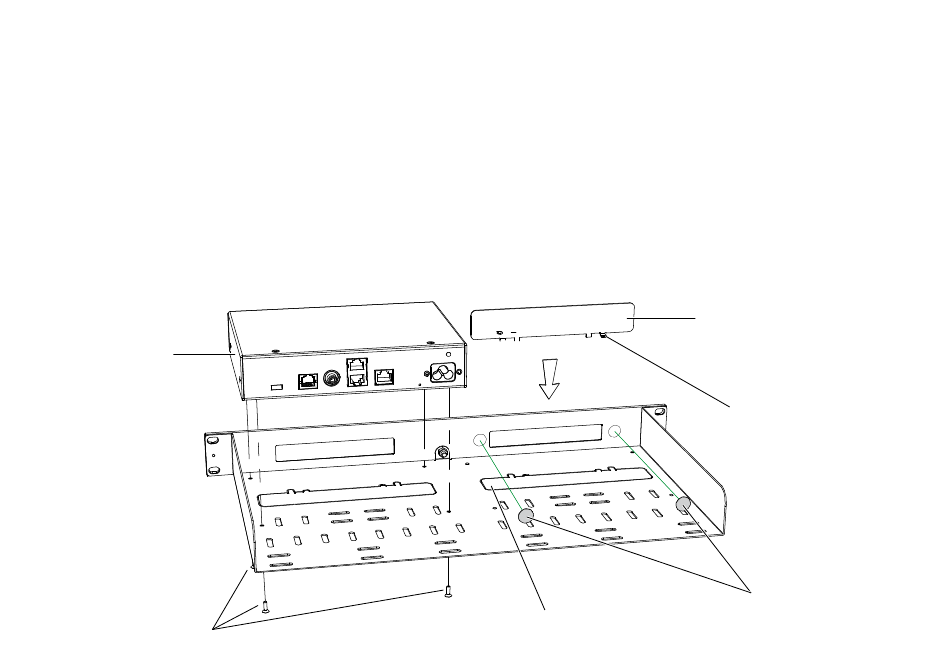

210 - Must be fitted
without feet pads
M3 x 6 countersunk screws
Note that if only one 210 is being installed in a tray then the
open side of the fascia can be blanked by one of the knock-
outs included in the tray. Remove the knock-out from the tray
and bend the two longer tabs to 90 degrees. Affix the two
self-adhesive dots and slide the shorter tabs down between the
fascia and the tray, resting the longer tabs on the top surface
of the tray. Press the knock-out firmly against the back of the
fascia to secure.
Cut and remove blanking
plate from this position
Blanking plate
Fix to rear of front fascia
on the self-adhesive dots
Fold longer tabs up
This will support and position
blanking plate on tray
Self-adhesive dots
Fit to rear of front fascia
on either side of aperture
