Fountain Softeners INO20 Service Manual

Time clock/metered

Advertisement

Quick Links

Model INO20
Time clock / Metered
SERVICE MANUAL
1
04/04/18

Advertisement

loading
Need help?

Need help?

Do you have a question about the INO20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fountain Softeners INO20

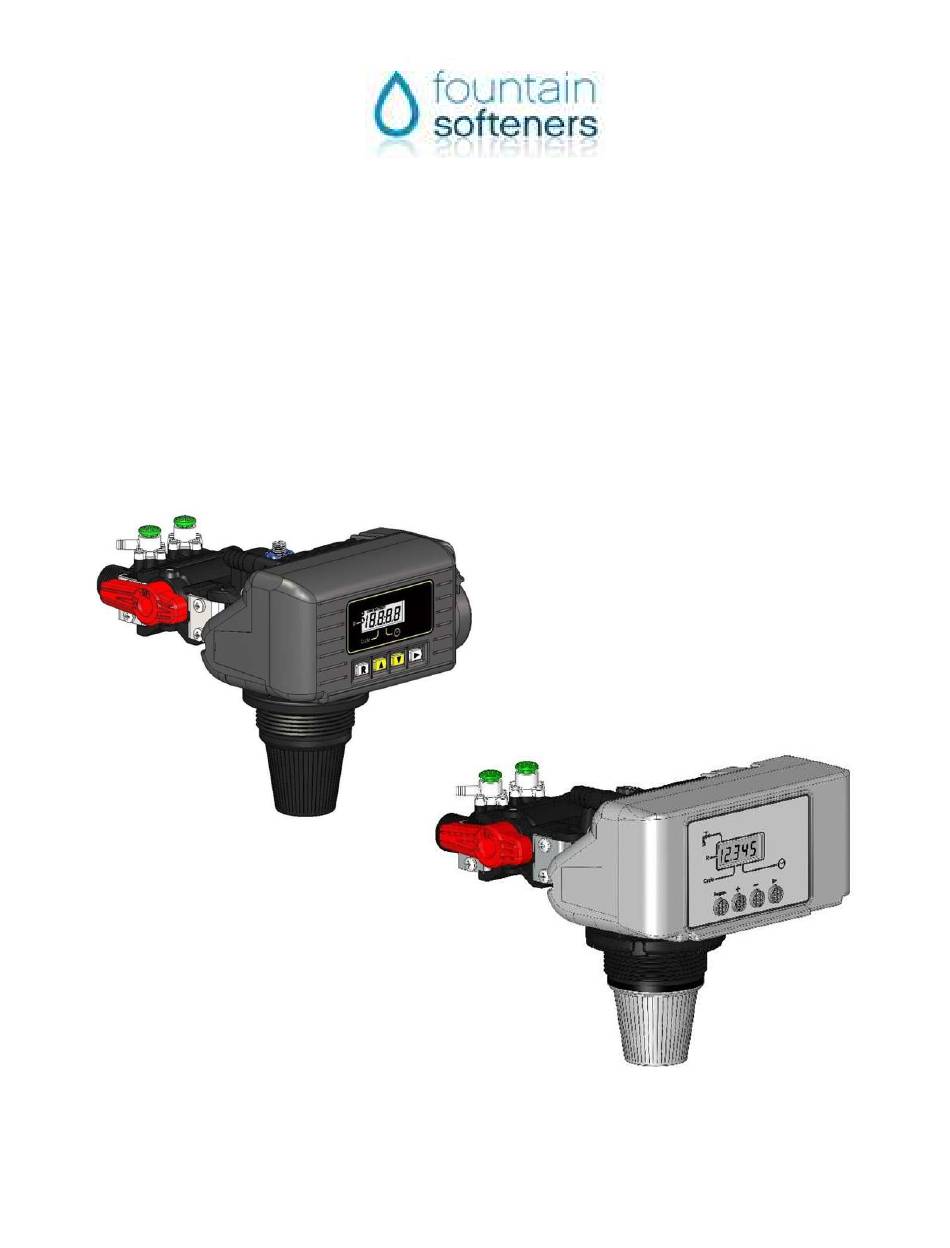

  • Page 1 Model INO20 Time clock / Metered SERVICE MANUAL 04/04/18...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS: 1 - DESCRIPTION & EQUIPMENT ADJUSTMENTS.....P.14 2 - INSTALLATION INSTRUCTIONS..........P.15 3 – INITIAL SET-UP ..............P.16 4 – USER INTERFACE……… ............P.18 5 - TROUBLESHOOTING ……………...........P.19 6 – ERROR MESSAGES ……............P.20 7 – SPARE PARTS …………………………........P.21 8 – DIMENSIONS & SPECIFICATIONS ........P.22 04/04/18...
  • Page 3: Description & Equipment Adjustments

    -1- DESCRIPTION & EQUIPMENT ADJUSTMENTS Commissioning date Installation number Nominal Capacity m³°tH Valve serial number Inlet water hardness °tH Tank size Treated water volume liters Resin type Outlet water hardness °tH liters Resin volume Salt quantity Regeneration Mode Adjustment Time clock ......
  • Page 4: Installation Instructions

    -2- INSTALLATION INSTRUCTIONS -2-1. LINE PRESSURE A 2-bar minimum pressure is absolutely necessary to provide a normal efficiency of the control valve. Maximum pressure must not exceed 8 bars, in order to prevent troubles on all installation. If necessary, a pressure regulator should be installed upstream to the system. If water line is shut down, take care to prevent any depression (negative pressure), which could destroy the tank.
  • Page 5: Initial Set-Up

    -3- INITIAL SET-UP View – Access to main features Mixing d evic e Dra in hose ba rb B rine tube c onnexion Bypa ss Leve r Ana lysis ta ps Ha rd wa te r inle t Trea ted wa ter outle t 04/04/18...
  • Page 6 -3-1 The distributor tube should be cut 13 mm above the top of tank (mini: 10mm, maxi: 16 mm). Chamfer the top of tube, in order to avoid damaging the O’Ring. Lubricate the top of tube with Capper’s silicon grease exclusively to facilitate the installation. Other lubricant may damage plastic parts and may not comply with potable water regulations.
  • Page 7: User Interface

    -4- USER INTERFACE (SCA-19 example) Regeneration Flow Low batteries Parameters Low salt indicator indicator indicator indicator display Next step Decrease Increase Regeneration and button button button previous step button 4-1 ADJUST TIME OF DAY: - Press « Increase » or « Decrease » to adjust time of day. A power failure will cause the display to blink indicating the need to adjust the time of day.
  • Page 8: Troubleshooting

    -5- ADVISORY NOTE Cappers is only a valves manufacturer, the following points are not part of its scope: Sizing of water treatment installations Media selection Valve configuration Components assembly Installation of the equipment The components (valve, bypass, distributor tube, SBV) being sold and delivered separately, Cappers is not liable for the final result of installations made with its material;...
  • Page 9: Error Messages

    -7- ERROR MESSAGES In any case, to reset error messages, remove battery(ies) Display Operation Failure type Possible cause Actions needed Er11 to 18 Valve operates normally Valve has run through hard Low battery(ies) Check battery(ies) level blinking points (drive force too high) Defect in power supply Chek power supply Drive force too high...
  • Page 10: Spare Parts

    -8- SPARE PARTS Name & reference Recommendation Verification: Each year Breech seals kit Ref: Kj-34-E0-515 Replacement: Every 3 years Verification: Each year Piston plate kit Ref: Ka-40 - D0 - 524 Replacement: Every 3 years Verification: Each year Interface seal kit Ref: Kj-34-E0-519 Replacement: Every 5 years Verification at each dismantling Tank seal Ref: Kj-34-E0-520...
  • Page 11: Dimensions & Specifications

    View – remove screw to access the battery(ies) -9- DIMENSIONS & SPECIFICATIONS SCA-19 STANDARD INO20 STANDARD 04/04/18...
  • Page 12 Nominal Section: Ø 19 mm (¾'') minimum Inlet & outlet ports: ¾'' BSP cylindrical Drain line tube: Ø 13 mm (1/2'') Brine line tube: Ø 9,52 mm (3/8'') Valves compliant with N° 89/336/EEC, Electromagnetic compatibility N° 73/23/EEC, Low voltage N° 2002/95/CE, RoHS ACS: 13 ACC LY 804 Components KTW compliant, upon request Minimum pressure in service: 2 Bar...
