12V 50A, 24V 28A, 36V 19A, 48V 14A, 60V 11A, 72V 10A
Charger that can "listen" to the chemistry of the battery
-
Fast, smooth and battery friendly charging
-
Battery itself determines charging current under supervision of Intelligent
-
microprocessor pulse charging system
8 charging programs for different type of batteries
-
There is no warming up effect, which reduces battery life at overcharge
-
4 charging phase: bulk charge, absorption, equalization, float charge
-
Regenerate cells majorly, when they were charged improperly- Battery
-
desulfatization effect
Pulse-charging prolong the battery life
-
Safe against short-circuit
-
Safe against wrong polarity by connecting battery on the charger
-
Automatic battery detector (yellow LED)
-
Precise charging indicator (green LED)
-
Simple signaling of green, red, yellow LED and acoustic buzzer
-
"Burst Charge" button for completely discharged battery
-
Working temperature range from 0º to 35ºC
-
Charging is independent of
-
Desktop or mounting version.
-

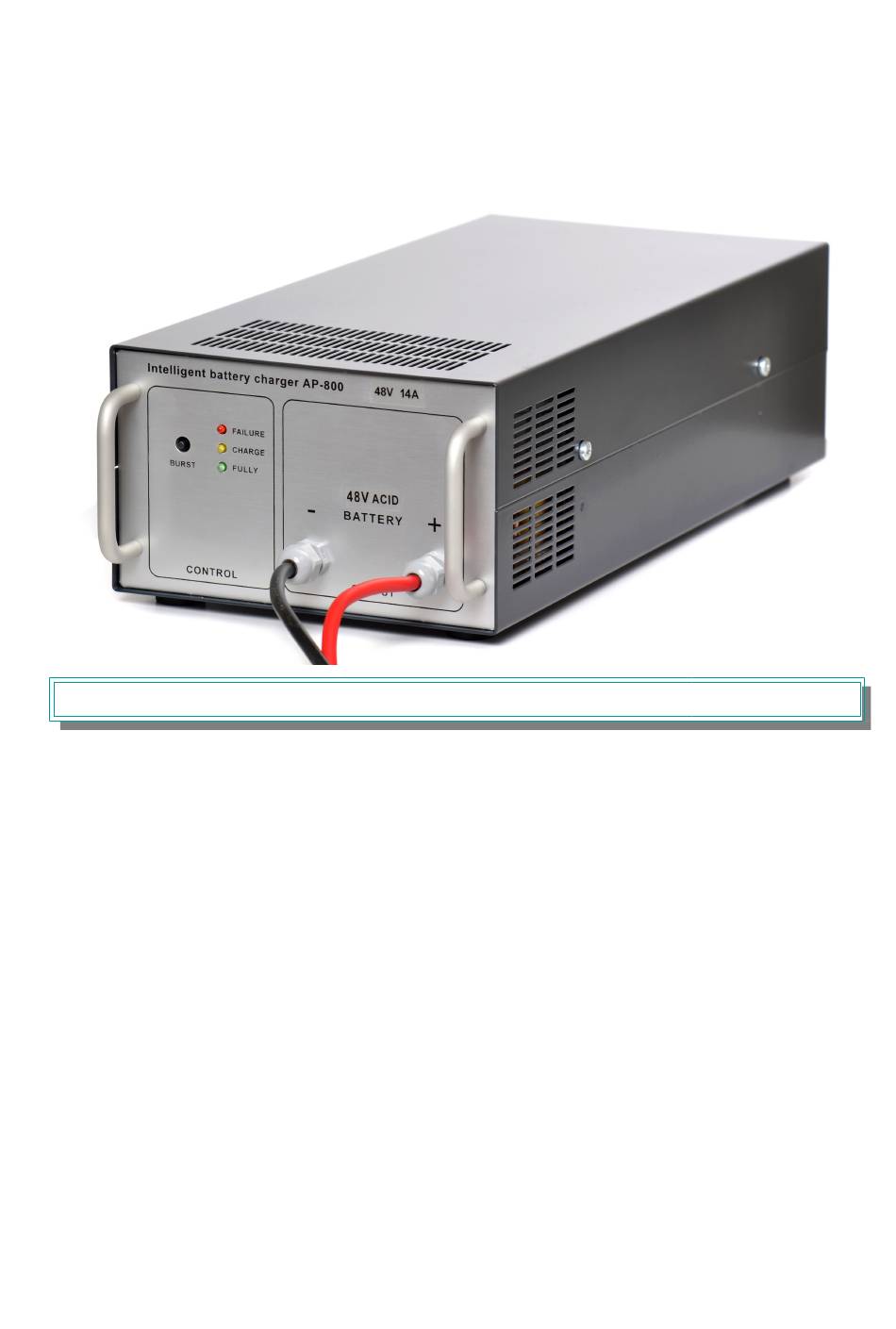

Intelligent pulse battery charger AP-800
INSTRUCTIONS FOR USE
Pulse battery charger AP–800
CHARGER CHARACTERISTICS
oscillations i
n the supply voltage
1
(PWM technology)
