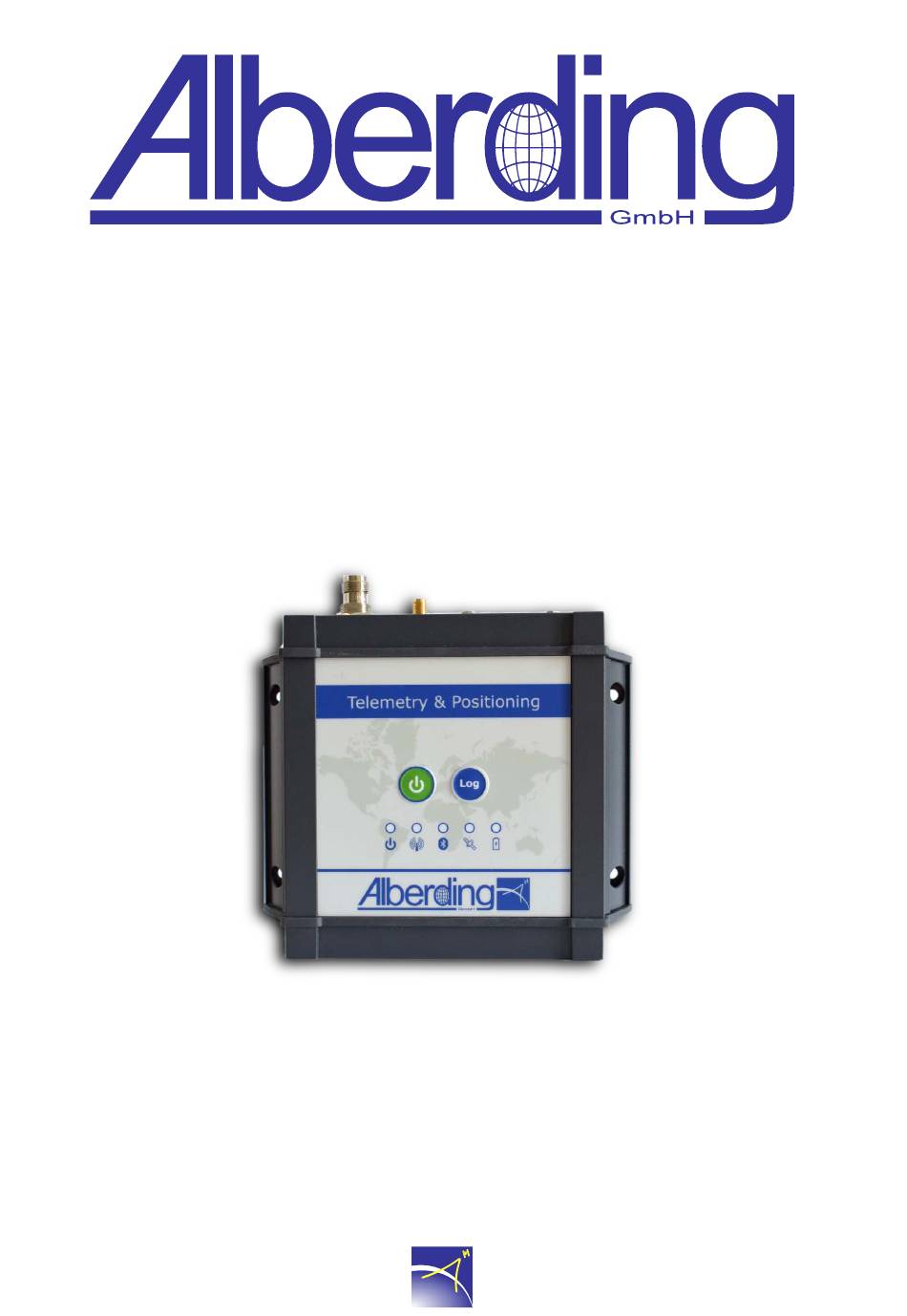

A10-RTK
Instruction Manual
Creation Date: 18. December 2018
Revision: 0.9
Alberding GmbH
Schmiedestraße 2
D-15745 Wildau
info@alberding.eu
www.alberding.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A10-RTK and is the answer not in the manual?

Questions and answers

Summary of Contents for Alberding A10-RTK

  • Page 1 A10-RTK Instruction Manual Creation Date: 18. December 2018 Revision: 0.9 Alberding GmbH Schmiedestraße 2 D-15745 Wildau info@alberding.eu www.alberding.eu...
  • Page 2 A10-RTK Instruction Manual Revision History Version Date Description of the changes 19.12.2018 Preliminary version...

  • Page 3: Table Of Contents

    System specifications 2.1 A10-RTK system approach ......2.2 A10-RTK sensor with Trimble MB-Two board and embedded PC ..

  • Page 4: Safety Instructions

    A10-RTK Instruction Manual 1 Safety instructions Warning! When using electrical equipment, basic safety precautions must always be followed, including the following, to reduce the risk of fire, electric shock and personal injury. 1. Before using the device, read this manual carefully.

  • Page 5: System Specifications

    field. In combination with Alberding cloud solutions, the mobile systems can be customised for multiple server/client digitisation and automation applications. The Alberding A10-RTK sensor is a further development of the initial model A07-RTK, which is successfully used for a wide range of applications (agriculture, forestry, vehicle tracking, GIS, surveying, etc.).
  • Page 6 A10-RTK Instruction Manual Unlike the A07-RTK, the A10-RTK sensor integrates an LTE modem and a scalable GNSS board. Compared to the GPRS modem in the A07-RTK, the LTE modem offers a higher data rate and a future-proof perspective for mobile data transmission from/to the server.

  • Page 7: A10-Rtk Sensor With Trimble Mb-Two Board And Embedded Pc

    All important system components and connections of the A10-RTK sensor are shown in the fol- lowing block diagram (see Fig. 1). The GNSS antenna is connected to the A10-RTK sensor with an antenna cable using the TNC connector and the external GSM antenna through the SMA con- nector.
  • Page 8 1 Ethernet port, 2 serial RS232 and 1 USB port, as well as an optional, CAN port are available. On the top side of the A10-RTK sensor, you can find the power button, the log button and five LED status lamps. The Log button currently has no function. The following ports are available on the front panel: GNSS antenna, GSM antenna, as well as a serial port (Sub-D HD26) (see Fig.

  • Page 9: Led Indicators

    A10-RTK Instruction Manual 2.3 LED indicators The following table explains all possible LED indicators of the A10-RTK (see Fig. 3). Figure 3: LED indicators Colour and property Explanation Green/Red LED 1 System flashing System is running Wireless modem disabled Yellow...

  • Page 10: Pin Assignment Of The Sub-D Hd26 Port

    A10-RTK Instruction Manual 2.4 Pin assignment of the Sub-D HD26 port Figure 4: Pin assignment of the Sub-D HD26 port Description Remarks reserved CAN L Either Linux board or microcontroller (optional) reserved reserved reserved TX3 (RS232) to Trimble MB-Two Connection to Trimble MB-Two...

  • Page 11: A10-Rtk Technical Specifications

    A10-RTK Instruction Manual 2.5 A10-RTK technical specifications Data and memory Data storage: Integrated memory card Wireless data output: Bluetooth, mobile Internet Wireless data input: Bluetooth, mobile Internet Wired data output: LAN, serial RS232, serial USB, PPS out Wired data input:...
  • Page 12 A10-RTK Instruction Manual Electrical properties External power supply: 12 - 24 V DC Power consumption: Depending on configuration, up to 5 W with Linux board and mobile Internet (data streaming) Protections: Short circuit Overcurrent charge and discharge Overvoltage charge (overcharge)

  • Page 13: Start-Up Procedure

    Connect the power supply unit to the multiport adapter and plug it into the 26-pin port (Sub-D HD26) of the A10-RTK (see Fig. 2). When the power supply is connected, all LEDs flash. The A10-RTK sensor can be switched on either by pressing the power button or by activating the Auto- Power-On function.

  • Page 14: Trimble Mb-Two Gnss Board

    The GNSS board is configured via the integrated web interface. The Ethernet port of the MB- Two is accessible via the Ethernet interface of the Linux PC in the A10-RTK. The web interface is described in detail in the Reference Manual of the MB-Two (https://www.alberding.eu/pdf/ ReferenceManual_MB-TWO_US.pdf).

  • Page 15: Technical Specifications

    A10-RTK Instruction Manual 4.3 Technical specifications Scalable tracking GNSS signals: L1 + L2 GLONASS G1 + G2 FDMA BeiDou B1 + B2 Galileo E1 + E5b QZSS L1 + L2 SBAS Channels: Update rate: RTK: up to 50 Hz Horizontal accuracy (RMS) Autonomous: 0.5 m...
  • Page 16 A10-RTK Instruction Manual I/O interface USB: USB 2.0 OTG (USB/ Serial Link, USB memory stick) I/O: 1 PPS out / Event In LAN: HTTP (web GUI), NTP server, NTripCaster, dynamic Data formats Real-time data output: NMEA-0183, RTCM version 3.x, ATOM...

  • Page 17: Embedded Pc In The A10-Rtk Sensor

    A10-RTK Instruction Manual 5 Embedded PC in the A10-RTK sensor The integration of an embedded PC in the A10-RTK sensor is the key for flexible system customi- sation for diverse digitisation and automation tasks. While the integrated microprocessor controls the data transfer in the A10-RTK sensor, the software can perform more extensive calculations on the embedded PC.
  • Page 18 A10-RTK Instruction Manual • Transmission of project data from and to the server - Transmission of engineering project data (digital terrain model, station coordinates) - Transmission of agricultural management data (site-specific fertilisation) • Telemetry module with RTK - Data retrieval and transmission from agricultural and construction machines...
  • Page 19 A10-RTK Instruction Manual Figure 7: Example of a machine installation...

  • Page 20: Connections

    Settings > Devices > Device Manager> Ports (COM & LPT) Ethernet: It requires an Ethernet cable connected directly to the computer. The IP address of the A10-RTK sensor is determined by Alberding GmbH and depends on the serial number of the A10-RTK: Examples:...
  • Page 21 1. Launch the Terminal or Console. 2. sudo ip addr add <IP address (customer)>/24 dev eth0 3. Attention: After executing the following command line, a password is requested. Alberding GmbH will provide you with this password. 4. ssh euronav@10.50.X.XX (IP address (Alberding GmbH))
  • Page 22 A10-RTK Instruction Manual 2. Then click on “Change adapter options” (see Fig. 10) in Windows 10 or on “Change adapter settings” (see Fig. 11) in Windows 7. Figure 10: Change adapter options (Windows 10)
  • Page 23 A10-RTK Instruction Manual Figure 11: Change adapter settings (Windows 7) 3. The following window opens (see Fig. 12). Select the Ethernet connection and right-click on “Properties”. Figure 12: Ethernet connection...
  • Page 24 A10-RTK Instruction Manual 4. Select “Internet Protocol Version 4 (TCP/IPv4)” and press “Properties” (see Fig. 13). Figure 13: Internet Protocol Version 4 (TCP/IPv4)
  • Page 25 figuration. Please take a screenshot or note the information contained in this window. You will need this information to re-establish the Internet connection at the end of the connection with the A10-RTK sensor (see Fig. 14). Figure 14: Internet Protocol Version 4 (TCP/IPv4) Properties...
  • Page 26 Subnet mask (255.255.255.0) fields (see Figure 15). Figure 15: IP address By pressing “OK” the connection between the A10-RTK and the PC is established. 7. To restore your computer’s Internet connection, repeat steps 1 to 4 and change the informa- tion in the “Internet Protocol Version 4 (TCP/IPv4) Properties”...

  • Page 27: Bluetooth Connection

    A10-RTK Instruction Manual 6.2 Bluetooth connection Once the A10-RTK is operational, the A10-RTK will be displayed in the Bluetooth range. Pair the A10-RTK with your device using the PIN “0000” (see User manual configurator.pdf). The A10- RTK installs itself as a serial port (COM port, 115200, 8-N-1). No further drivers are required.

  • Page 28: Configuration

    7.2 Linux board In order to communicate with the Linux board on the A10-RTK, the A10-RTK sensor must be connected to the PC via Ethernet. Then programs or scripts can be installed. This connection can be performed by the network administrator or you can use the following steps for Windows: 1.

  • Page 29: Data Transmission

    A10-RTK Instruction Manual 8 Data transmission To access the file system of the embedded PC Linux OS, the A10-RTK sensor must be connected to the PC via Ethernet. To transfer data from the A10-RTK sensor to your computer use WinSCP and follow these steps.
  • Page 30 “...” (see Fig. 17). Figure 17: WinSCP connection 3. Then navigate to the “/var/euronav/data/” directory of the A10-RTK (see Fig. 18). Figure 18: WinSCP data directory Now you can transfer the data from the A10-RTK sensor to your computer.

  • Page 31: Disclaimer Of Liability

    A10-RTK Instruction Manual 9 Disclaimer of liability Alberding GmbH has developed with the A10-RTK sensor an innovative system for various precise positioning applications. The A10-RTK sensor integrates components of different manufacturers in one housing. The sensors have been tested by Alberding GmbH for their suitability. However, there is still a remaining risk that either individual components or the entire composition of the system may not work correctly.
