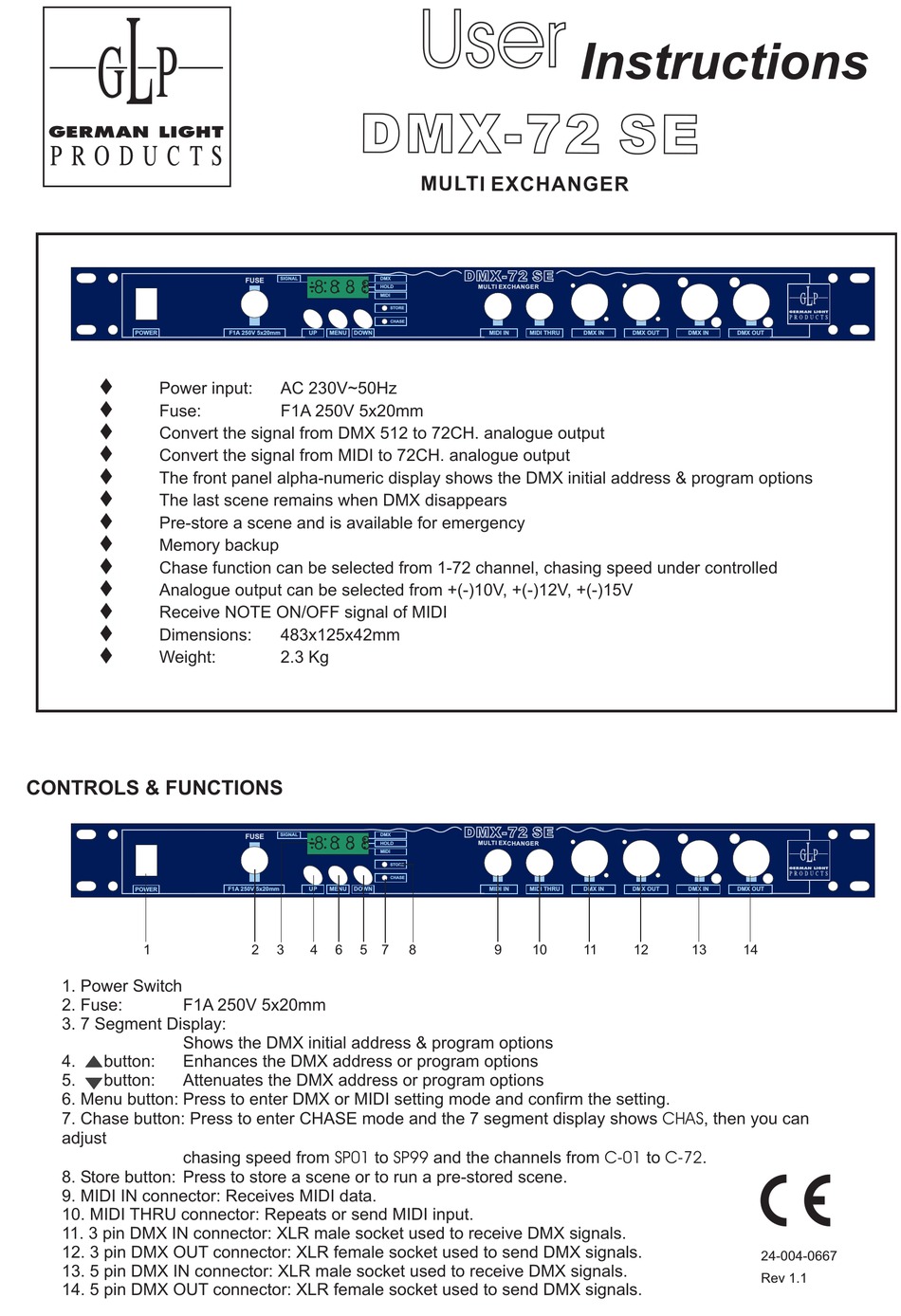

GLP DMX-72 SE User Instructions

POWER
t
Power input:
t
Fuse:
t
Convert the signal from DMX 512 to 72CH. analogue output
t
Convert the signal from MIDI to 72CH. analogue output
t
The front panel alpha-numeric display shows the DMX initial address & program options
t
The last scene remains when DMX disappears
t
Pre-store a scene and is available for emergency
t
Memory backup
t
Chase function can be selected from 1-72 channel, chasing speed under controlled
t
Analogue output can be selected from +(-)10V, +(-)12V, +(-)15V
t
Receive NOTE ON/OFF signal of MIDI
t
Dimensions:
t
Weight:
CONTROLS & FUNCTIONS
POWER
1
1. Power Switch
2. Fuse: F1A 250V 5x20mm
3. 7 Segment Display:
Shows the DMX initial address & program options
4. button: Enhances the DMX address or program options
5. button: Attenuates the DMX address or program options
6. Menu button: Press to enter DMX or MIDI setting mode and confirm the setting.
7. Chase button: Press to enter CHASE mode and the 7 segment display shows
adjust
chasing speed from
8. Store button: Press to store a scene or to run a pre-stored scene.
9. MIDI IN connector: Receives MIDI data.
10. MIDI THRU connector: Repeats or send MIDI input.
11. 3 pin DMX IN connector: XLR male socket used to receive DMX signals.
12. 3 pin DMX OUT connector: XLR female socket used to send DMX signals.
13. 5 pin DMX IN connector: XLR male socket used to receive DMX signals.
14. 5 pin DMX OUT connector: XLR female socket used to send DMX signals.
SIGNAL 8 8 8 8 DMX
FUSE
HOLD
MIDI
STORE
CHASE
F1A 250V 5x20mm UP MENU DOWN
AC 230V~50Hz
F1A 250V 5x20mm
483x125x42mm
2.3 Kg
8 8 8 8
FUSE SIGNAL DMX
HOLD
MIDI
STORE
CHASE
F1A 250V 5x20mm UP MENU DOWN
2 3 4 6 5 7
SP01 SP99
to
User
MIDI IN MIDI THRU
MIDI IN MIDI THRU
8 9 10
and the channels from
Instructions
DMX IN DMX OUT DMX IN DMX OUT
DMX IN DMX OUT DMX IN DMX OUT
11 12 13 14
CHAS
, then you can
C-01 C-72
to .
24-004-0667
Rev 1.1
