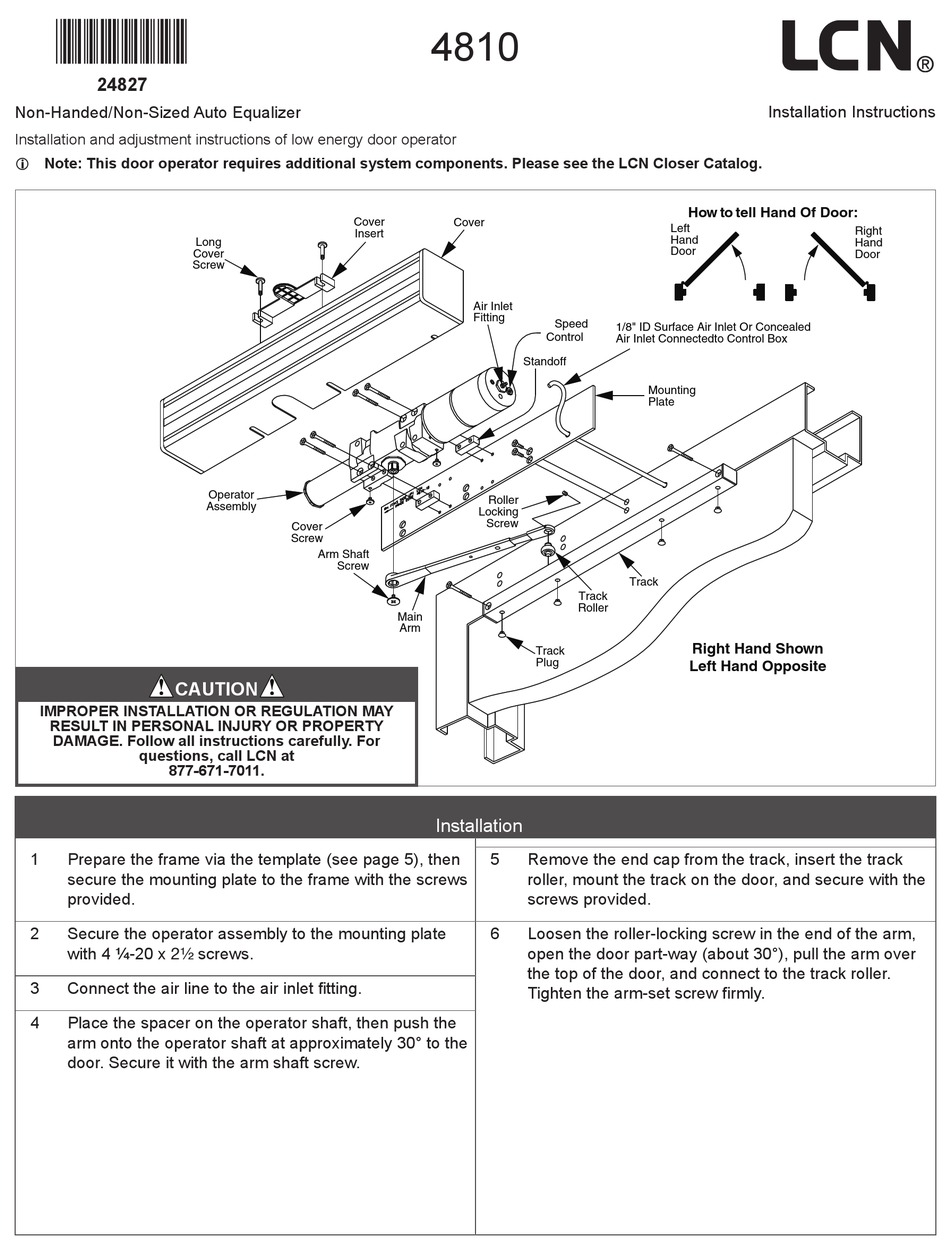

*24827*
24827
Non-Handed/Non-Sized Auto Equalizer
Installation and adjustment instructions of low energy door operator
L Note: This door operator requires additional system components. Please see the LCN Closer Catalog.
Cover
Screw
CauTioN
iMPRoPER iNSTaLLaTioN oR REGuLaTioN MaY
RESuLT iN PERSoNaL iNJuRY oR PRoPERTY
DaMaGE. Follow all instructions carefully. For
questions, call LCN at
877-671-7011.
1
Prepare the frame via the template (see page 5), then
secure the mounting plate to the frame with the screws
provided.
2
Secure the operator assembly to the mounting plate
with 4 Z\v-20 x 2Z\x screws.
3
Connect the air line to the air inlet fitting.
4
Place the spacer on the operator shaft, then push the
arm onto the operator shaft at approximately 30° to the
door. Secure it with the arm shaft screw.
Cover
Insert
Long
Operator
Assembly
Cover
Screw
Arm Shaft
Screw
4810
Cover
Air Inlet
Fitting
Speed
Control
Standoff
Roller
Locking
Screw
Main
Arm
Track
Plug
Installation
5
Remove the end cap from the track, insert the track
roller, mount the track on the door, and secure with the
screws provided.
6
Loosen the roller-locking screw in the end of the arm,
open the door part-way (about 30°), pull the arm over
the top of the door, and connect to the track roller.
Tighten the arm-set screw firmly.
How to tell Hand Of Door:
Left
Hand
Door
1/8" ID Surface Air Inlet Or Concealed
Air Inlet Connectedto Control Box
Mounting
Plate
Track
Track
Roller
Right Hand Shown
Left Hand Opposite
Installation Instructions
Right
Hand
Door
Advertisement
Table of Contents
Summary of Contents for Allegion LCN 4810
- Page 1 *24827* 4810 24827 Non-Handed/Non-Sized Auto Equalizer Installation Instructions Installation and adjustment instructions of low energy door operator L Note: This door operator requires additional system components. Please see the LCN Closer Catalog. How to tell Hand Of Door: Cover Cover Left Right Insert...
- Page 2 Spring Adjustment Nut Increase Force Backcheck Operator Model No. Decrease Main Speed Force Opening Speed Control Adjusting Screw Latch Speed (Socket Head Regulating Screw) Figure 1 Closing Force Adjustment Reference Tables To adjust the closing force, turn the spring adjustment nut clockwise Exterior Door or counterclockwise the required number of turns to match the door Maximum Door Width...
- Page 3 Door Weight Locate the Caution/Automatic Door Decal Door Type Weight per Sq. Ft. 1. Locate one decal on each side of the door, near the lock stile, Solid Core Wood approximately 53” minimum to 63” maximum above the floor. 20 Ga. Flush Hollow Metal The decal location must be visible without interference from the Aluminum x 1”...
- Page 4 AUTOMATIC CAUTION DOOR Figure 3 item Number Part Number Description Quantity Order Length Required Z\,” I.D. Pneumatic Tubing 4810-18 Standard Mounting Plate Phillips Head Wood Screw or No. 14 x 1Z\x” Phillips Head Machine Screw Z\v-20 x 5/8” 4810-182 Standoff 4810-3071 LCN Switch-Actuated Auto Equalizer Phillips Head Machine Screw...
- Page 5 4. The closer size is 20” x 3Z\x” x 3 B\zn”. 5. Reinforcing per ANSI/SDI-100 is recommended for hollow metal doors & frames. inch ZZ\zn 1Z\, 1Z\x 2Z\x 3Z\, 19B\, 21C\v M.M. © Allegion 2014 Customer Service Printed in U.S.A. 24827 Rev. 01/14-d 1-877-671-7011 www.allegion.com/us...
