5.5

Connecting the supply lines

Overloading the coolant pump!
The cooling unit must not be put into operation without a welding torch connected, as otherwise
the coolant pump will be destroyed due to thermal overload (the coolant cannot circulate in the
coolant circuit).
•
Connect the coolant connections for the water cooled welding torch to the cooling module.
•
If air-cooled welding torches are used, the control and supply line between the cooling module
and welding machine must be disconnected!
Item Symbol
1
2
3
Control and supply lead to the welding machine
The cooling module and welding machine are connected using two leads.
•
Insert the control lead plug on the welding machine.
•
Insert the power supply lead plug on the welding machine.
099-008603-EW501
27.07.2016
Description 0
Power source
Connector plug, 8-pole
Cooling unit control lead
Connector plug, 4-pole
Cooling unit voltage supply
Design and function

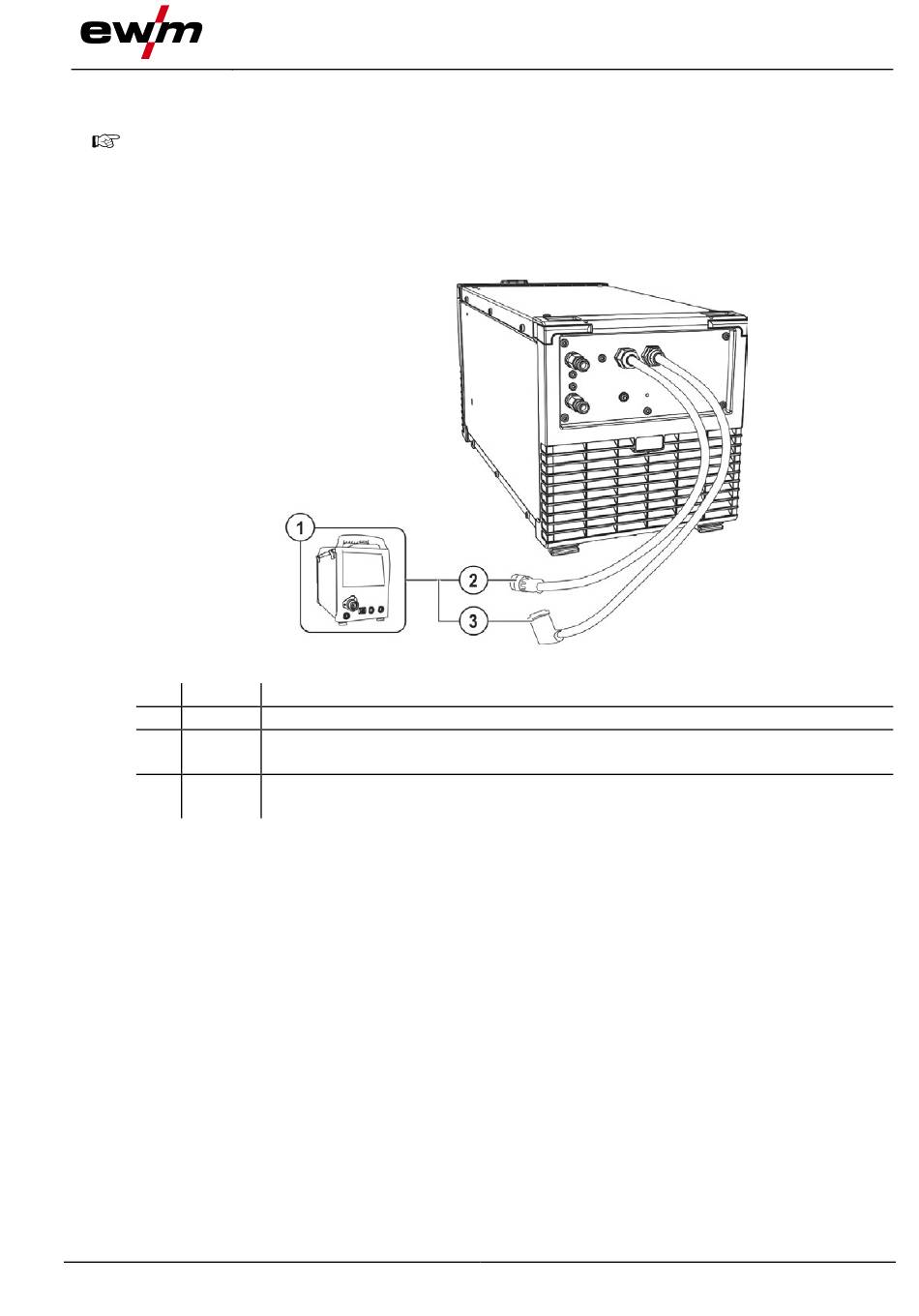

Figure 5-2
Connecting the supply lines
13
