Summary of Contents for KEYKING NF4027P

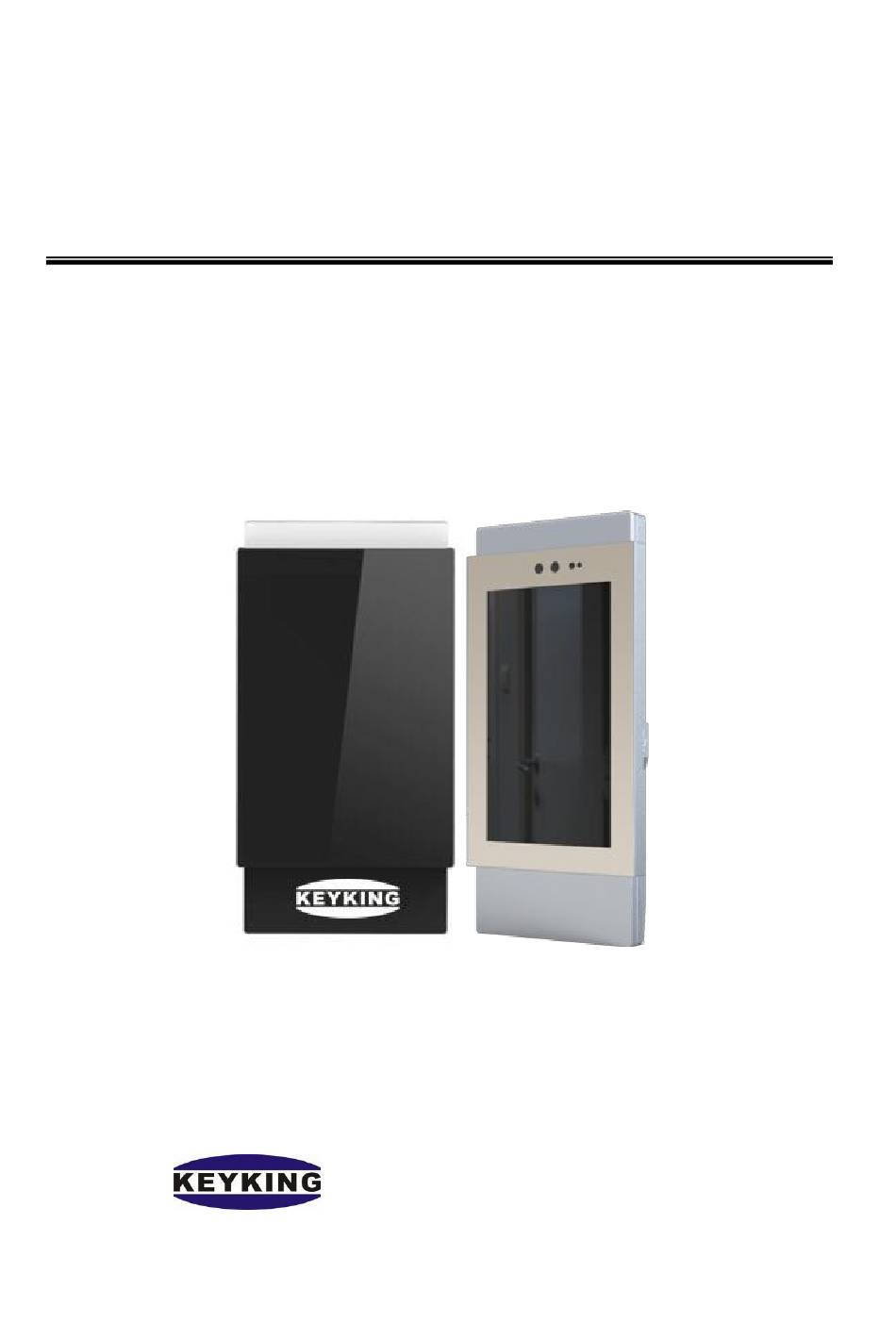

- Page 1 User Manual Thank you for selecting our products. Please read this manual before use. NF4027P NexFace Facial Recognition KEYKING GROUP...
-
Page 2: Table Of Contents
NF4027P Facial recognition user manual V1.00 INDEX Chapter 1 introduction ........................... 5 1.1 Apparatus shape ........................5 1.2 Model ............................5 1.3 Application ........................... 5 1.4 Feature ............................ 5 1.5 Specification ........................6 1.6 Dimensions ..........................9 Chapter 2 Installation ........................... 10 2.1 interface description .................... - Page 3 NF4027P Facial recognition user manual V1.00 3.5 Precautions ......................... 21 Chapter 4 System setting ........................25 4.1 NF4027P setting ........................ 25 4.2 Sphinx4.4 setting ......................25 Chapter 5 Registered ......................... 29 Chapter 6 Test ............................34 3/ 34...
- Page 4 NF4027P Facial recognition user manual V1.00 4/ 34...
-
Page 5: Chapter 1 Introduction
NF4027P Facial recognition user manual V1.00 Chapter 1 introduction Apparatus shape Model Black/Silver: NF4027P, NF4027P-U Application It is suitable for office areas, hotels, access gates, office buildings, schools, shopping malls, shops, communities, public services and management projects, etc. Feature Support for external HDMI large screen (only supports vertical screen);... -
Page 6: Specification
NF4027P Facial recognition user manual V1.00 Support external 4G network; Support external QR code scanner and ID card reader (currently only supports new Chinese and new ID card reader DKQ-A16D); Support serial port, Wiegand 26, 34 output;... - Page 7 4 cores, 1.8 GHz Core parameter storage Memory 2G, storage 8G Fill light Infrared, LED fill light Card reader U card reader (only supported by NF4027P-U) Accessories module Network Support wired, wireless (2.4GWi-Fi), wireless (4G network card, module USB external) Audio...
- Page 8 NF4027P Facial recognition user manual V1.00 interface Reset interface RESET hole on the back of the device Wired network 2.5mm terminal block 4P interface Face Detection Supporting detection and tracking of 5 people at the same time 1:N face Under the condition of 3% misidentification rate, the recognition recognition accuracy rate is 99.7%.
-
Page 9: Dimensions
NF4027P Facial recognition user manual V1.00 Dimensions 9/ 34... -
Page 10: Chapter 2 Installation
NF4027P Facial recognition user manual V1.00 Chapter 2 Installation interface description LED light infrared light RGB Camera Infrared Camera Screen Bracket slot Heat sink Swipe area RESET HDMI Screw hole +12V RJ45-1 RJ45-2 RJ45-3 RJ45-6 232 TXD 232 RXD POWER... -
Page 11: Installation Steps
NF4027P Facial recognition user manual V1.00 Installation steps 1. wiring instructions (take the power line as an example, other wiring and analogizing later) a) Strip the wire (using tools such as scissors) to expose the wire as shown. b) Press the orange button at each connector on the green bar to insert the wire end into the hole, then loosen the orange button to secure the wire as shown. - Page 12 NF4027P Facial recognition user manual V1.00 the device will start normally; the device power adapter requires 12-16V, Be careful not to short the positive and negative wiring, otherwise the device will not start. If you do not need to install the device on the wall, you can directly refer to step 6. After the device is powered on, start using the device.
- Page 13 NF4027P Facial recognition user manual V1.00 4. According to the mounting position of the bracket, insert the green plug of the connected cable out of the outlet hole. If you need to reset the cable and HDMI cable, please pass it out from the outlet hole at this step.
- Page 14 NF4027P Facial recognition user manual V1.00 6. Insert the green interface into the connector on the back of the device。 7. Screw the countersunk screw into the bracket for two turns, then align the slot under the device with the hook under the bracket. Use a hexagon socket tool or a hex driver to tighten the countersunk screw in the direction of the arrow.
- Page 15 NF4027P Facial recognition user manual V1.00 15/ 34...
-
Page 16: Chapter 3 Wiring
Power supply to the electromagnetic lock, Access control power supply can be powered to the Keyking host at the (optional) same time Network cable (optional, device Used to lay out Ethernet and other... -
Page 17: Interface Description
NF4027P Facial recognition user manual V1.00 Interface description Magnetic lock wiring 3.3.1 system installation diagram 17/ 34... -
Page 18: Magnetic Lock And Exit Button Wiring Diagram
NF4027P Facial recognition user manual V1.00 3.3.2 Magnetic lock and exit button wiring diagram 18/ 34... -
Page 19: Magnetic Lock Mechanical Switch Wiring Diagram
NF4027P Facial recognition user manual V1.00 3.3.3 Magnetic Lock mechanical switch wiring diagram 19/ 34... -
Page 20: Automatic Induction Door Wiring
NF4027P Facial recognition user manual V1.00 Automatic induction door wiring 3.4.1 Automatic induction door system installation diagram 20/ 34... -
Page 21: Automatic Door Sensor Head Switch Wiring Diagram
NF4027P Facial recognition user manual V1.00 3.4.2 Automatic door sensor head switch wiring diagram Precautions 1、Touch the cable inside the Exit button panel as far as possible from the center of the back of the panel. 21/ 34... - Page 22 NF4027P Facial recognition user manual V1.00 2、In actual wiring, if the 12V power supply line of Keyking host does not use “dedicated power extension cable” and the distance is long, it will result in excessive cable equivalent resistance, which will be prone to abnormal phenomena such as insufficient terminal voltage (≤11V) and host.
- Page 23 NF4027P Facial recognition user manual V1.00 3、The device with a power adapter as shown in the figure, the total length is 1 meter, of which the power cable (weak power part) 40cm, the power line (strong power part) The power cable (weak power part) must not be extended by more than 2 meters.
- Page 24 NF4027P Facial recognition user manual V1.00 If other adapters are used, such as 9V, 1A, the voltage is too low and the current is too small, which will cause the device to restart repeatedly. The cable used should not be too thin (such as a thin wire). It is recommended to connect multiple strands of the same cable or use a thick copper core cable to ensure a voltage >11V.
-
Page 25: Chapter 4 System Setting
NF4027P Facial recognition user manual V1.00 Chapter 4 System setting NF4027P setting Set ip in NF4027p, make sure it is in the same IP segment with sphinx Sphinx4.4 setting Communication configuration 25/ 34... - Page 26 NF4027P Facial recognition user manual V1.00 Add face recognition device setup——hardware——face recognition 26/ 34...
- Page 27 NF4027P Facial recognition user manual V1.00 As shown in the figure below, click search, fill the IP segment that covers the NF4027P. 27/ 34...
- Page 28 NF4027P Facial recognition user manual V1.00 After the device goes online: 28/ 34...
-
Page 29: Chapter 5 Registered
NF4027P Facial recognition user manual V1.00 Chapter 5 Registered Click 【Add a Personnel】 to pop up the following window and click to add new one. In 【Basic Information】,fill in the ID, name, department information 29/ 34... - Page 30 NF4027P Facial recognition user manual V1.00 In 【Card】 , tick the 【Use Access Card】 , obtain the card number through the card issuer or card reader, or manually enter the card number (card number = face recognition terminal card) 30/ 34...
- Page 31 NF4027P Facial recognition user manual V1.00 in【Access Level】,tick the security groups 31/ 34...
- Page 32 NF4027P Facial recognition user manual V1.00 In 【Face Info】 , check Use face recognition under NF1000, and check the face recognition device in the 【Device Name】box. 32/ 34...
- Page 33 NF4027P Facial recognition user manual V1.00 33/ 34...
-
Page 34: Chapter 6 Test
NF4027P Facial recognition user manual V1.00 Chapter 6 Test In 【Monitor】 ，choose【Photo Viewer】,then 【Face Recognition Viewer】,we can see the registered face and the new coming face . If the recognition is Successful , the state is true. 34/ 34...
