Genetec Synergis IX SY-SIX-CTRL-DIN Installation Manual

Web enabled din rail controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Synergis IX Web Enabled DIN
Rail Controller
SY-SIX-CTRL-DIN
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Synergis IX SY-SIX-CTRL-DIN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Genetec Synergis IX SY-SIX-CTRL-DIN

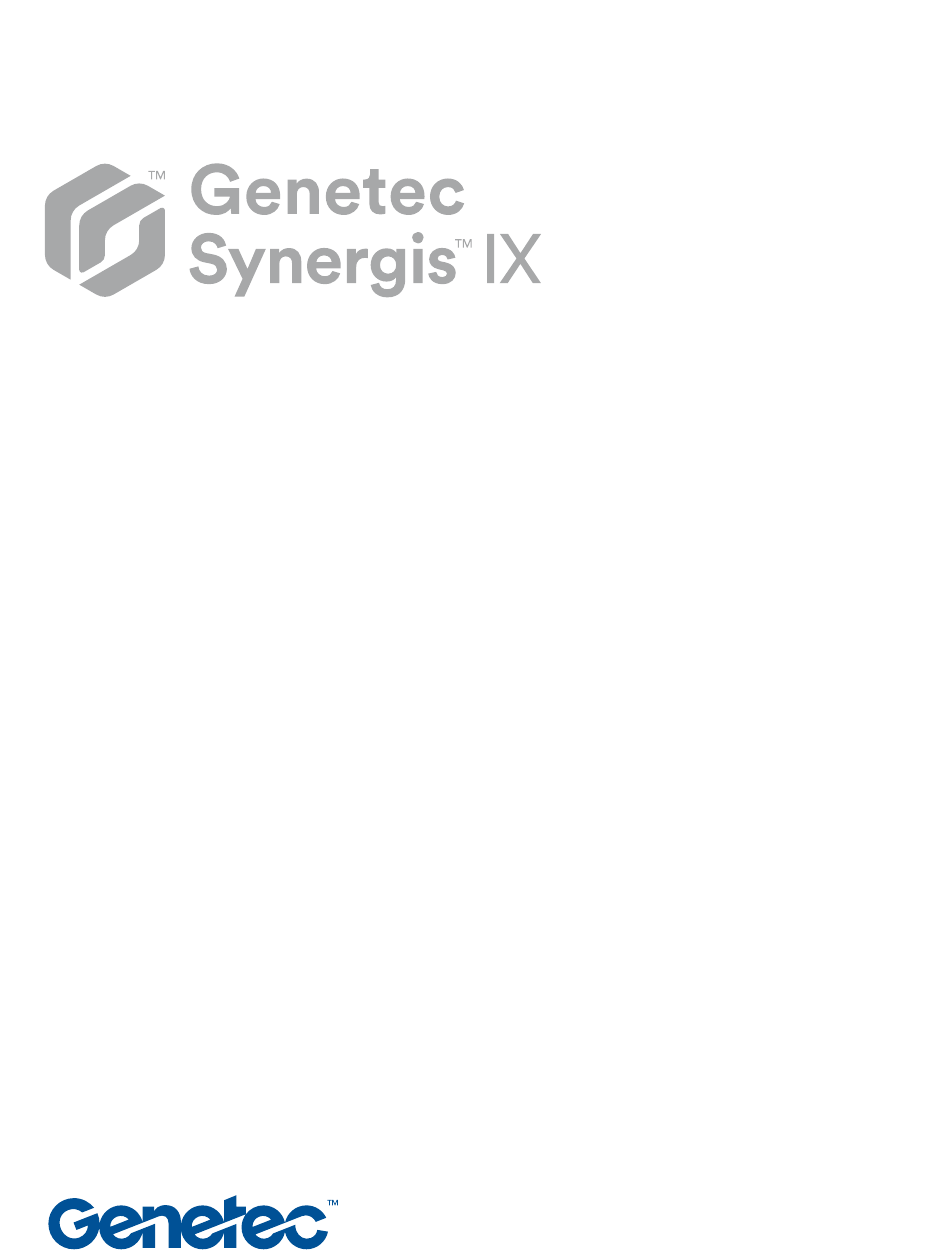

  • Page 1 Synergis IX Web Enabled DIN Rail Controller SY-SIX-CTRL-DIN Installation Manual...
  • Page 2 In no event shall Genetec be liable to any person or entity with respect to any loss or damage that is incidental to or consequential upon the instructions found in this document or the computer software and hardware products described herein.

  • Page 3: Table Of Contents

    Contents Introduction ..........................5   Installation Requirements ...................... 6   Grounding Requirements ....................... 7   Safety Grounding ............................7   Earth Ground Connection ..........................7   Mounting ..........................9   Removal ............................... 9   Connections .......................... 10   Power Requirements ..........................10  ...
  • Page 4 Lock Output Connection ..........................21   Programming the Onboard Reader ......................22   Inputs ............................. 23   Resistor Value Options ..........................24   Trouble Inputs ............................. 25   Outputs ..........................27   Bell/Siren Output ............................27   Relay Outputs ............................. 28  ...

  • Page 5: Introduction

    Introduction The Synergis IX Web Enabled DIN Rail Controller is the central processing unit of the Genetec Synergis IX System. It communicates with all system modules, stores all configuration and transaction information, processes all system communication, and reports alarms and system activity to a monitoring station or remote computer.

  • Page 6: Installation Requirements

    Installation Requirements This equipment is to be installed in accordance with:  The product installation instructions  The National Electrical Code, ANSI/NFPA 70  The Canadian Electrical Code, Part I, CSA C22.1  The Local Authority Having Jurisdiction (AHJ) SY-SIX-CTRL-DIN | Synergis IX Web Enabled DIN Rail Controller | Installation Manual Last Updated September 2018...

  • Page 7: Grounding Requirements

    Grounding Requirements An effectively grounded product is one that is intentionally connected to earth ground through a ground connection or connections of sufficiently low impedance and having sufficient current-carrying capacity to prevent elevated voltages which may result in undue hazard to connected equipment or to persons.
  • Page 8 DIN Rail Ground Connections (one or more cabinets installed in the same room) Module Network (RS-485 N+, N-, NA and NB) DIN Rail Enclosure Additional DIN Rail Enclosure (s) PRT-RDM2-DIN Controller Reader Expander Dialer’s Earth Ground Connection PRT-PSU-DIN PRT-PSU-DIN Power Supply Input Expander Output Expander AC Mains Wiring...

  • Page 9: Mounting

    Mounting The Controller is designed to mount on standard DIN Rail either in dedicated DIN cabinets or generic DIN Rail mounting strip. When installing the Controller ensure that there is adequate clearance around all sides of the device and that air flow to the vents of the unit is not restricted.

  • Page 10: Connections

    Connections Power Requirements Power is supplied to the Controller by a 12V DC power supply connected to the N+ and N- terminals. The Controller does not contain internal regulation or isolation and any clean 12V DC supply is suitable for this purpose.

  • Page 11: Encrypted Module Network

    In larger installations, the power supply may need to be split to allow for load sharing between several supplies. Module #3 Module #2 Module #1 Controller Power Supply #3 Power Supply #2 Power Supply #1 Warning: When using multiple power supplies it is important to ensure that all ground connections (V-) are connected between all power supplies and that no power connections (V+) are connected between any power supplies.

  • Page 12: Module Wiring

    Module Wiring The recommended module network wiring specifications are:  Belden 9842 or equivalent  24AWG twisted pair with characteristic impedance of 120ohm  Maximum total length of cable is max 900m (3000ft)  CAT5e / CAT6 are also supported for data transmission when using ground in the same cable (to a maximum length 100m (328ft)) Warning: Unused wires in the cable must not be used to carry power to other devices.

  • Page 13: Ethernet 10/100 Network Interface

    Ethernet 10/100 Network Interface The communication between the Synergis System and the Controller uses a 10/100 Ethernet network operating the TCP/IP protocol suite. The IP address of the Controller can be configured using the LCD Keypad terminal or via the built in web interface. The default IP address is set to a static IP address of 192.168.1.2 with a subnet mask of 255.255.255.0.

  • Page 14: Configuration

    To Automatically Activate Your License: Click Download License. Your details are passed to the Genetec web registration service, then your license is activated automatically. Important: The activation process requires an internet connection. If this is not available, you will need to use the manual activation option.

  • Page 15: Configuring The Ip Address

    Configuring the IP Address The Controller must be programmed with a valid IP Address to allow communication. By default, this is set to 192.168.1.2 but can be adapted to suit your network requirements and addressing scheme. With the Controller connected to your network, type the IP address into your browser. The default IP address is 192.168.1.2 If the IP address has been configured previously and you are not sure what it is, you can temporarily default it (see page 15).

  • Page 16: Defaulting A Controller

     DHCP : disabled  Connect to the Controller by entering 192.168.111.222 into the address bar of your web browser, and view or change the IP address as required Remember to change the subnet of your PC or laptop to match the subnet of the Controller ...

  • Page 17: Door Access Control

    Do not connect the shield to any shield used for isolated communication. All Genetec readers are shipped with single LED mode set as default and are fully compatible with the Synergis system, for example the SY-SIX-TSEC-STD-DF-B and SY-SIX-TSEC-EXTRA-DF-KP-B models etc.

  • Page 18: Multiplex Wiegand Reader Connection

    Multiplex Wiegand Reader Connection Multiplex reader mode allows the connection of 4 Wiegand reading devices controlling two doors each with entry/exit readers. In multiplex mode, the secondary reader has all connections wired to the same port as the primary card reader with the DATA 1 connection wired to the opposite reader connection DATA 1 input.

  • Page 19: Rs-485 Reader Connection (Entry Only)

    RS-485 Reader Connection (Entry Only) The following diagram shows the connection of a single RS-485 Reader connected in entry only mode. SHIELD BLACK Shielded Cable GREEN WHITE ORANGE BROWN Shield not Shield is frame connected grounded at BLUE one point YELLOW VIOLET L1 D1/...

  • Page 20: Door Contact Connection

    Door Contact Connection The Controller allows the connection of up to 4 contacts for monitoring and controlling access control doors. Each input on the Controller can be used for either the door function that is automatically assigned or as a normal input on the system.

  • Page 21: Lock Output Connection

    Lock Output Connection The Controller provides a connection for an electric strike lock with full monitoring of the lock circuit for tamper and over current/fuse blown conditions. The door lock monitoring can be disabled if it is not required. The lock output is shared with the bell/siren function as shown in the diagram below. You can select another output for the lock control (Relay 1 (CP001:03) or Relay 2 (CP001:04)) if the bell/siren function is required.

  • Page 22: Programming The Onboard Reader

    Programming the Onboard Reader The onboard reader is programmed in exactly the same way as any other reader module is. It can be thought of as if it were a normal reader expander module on a separate circuit board. The onboard reader uses inputs 1-4 and 5-8 as its door contact, REX, bond sense and REN inputs respectively.

  • Page 23: Inputs

    Inputs The Controller has 8 onboard inputs for monitoring the state of devices such as magnetic contacts, motion detectors and temperature sensors. Devices connected to these inputs can be installed to a maximum distance of 300m (1000ft) from the Controller when using 22 AWG. Inputs can be programmed using the Synergis software.

  • Page 24: Resistor Value Options

    Resistor Value Options When using the EOL resistor configuration, the EOL resistor option must be configured based on the site requirements. Note these resistor options are supported on the Controller but not all resistor options are supported on all Synergis field modules. Value 1 Value 2 Monitored Status...

  • Page 25: Trouble Inputs

    Trouble Inputs Each Controller can monitor up to 64 local trouble inputs. Trouble inputs are used to monitor the status of the Controller and in most cases are not physically connected to an external input. These can then be used to report a message to a monitoring station, remote computer, keypad or siren.
  • Page 26 Input Number Description Type Group CP001:28 Reserved CP001:29 System restarted Hardware Fault System CP001:30 PoE Connection Lost (PoE model only) Power Fault General CP001:31 Output Over-Current Failure (PoE model Power Fault General only) CP001:32 3G Modem Link Lost Hardware Fault System CP001:33 Controller Group Link Lost...

  • Page 27: Outputs

    Outputs The Controller has 7 onboard outputs. Outputs are used to activate sirens, bells, warning devices, control lighting and doors. The first output on the Controller has a special hardware design that allows it to monitor for fault conditions and is ideally suited to driving sirens or warning devices. Bell/Siren Output The + and - terminals of the Bell output (CP001:01) are used to power bells, sirens or any devices that require a steady voltage output.

  • Page 28: Relay Outputs

    Relay Outputs The Relay Outputs (CP001:03 and CP001:04) on the Controller are Form C relays having normally open and normally closed contacts. These outputs can be used to activate larger relays, sounders and lights, etc. 1K5 OHM Warning: The Relay outputs can switch to a maximum capacity of 7A. Exceeding this amount will damage the output.

  • Page 29: Led Indicators

    LED Indicators The Controller includes comprehensive diagnostic indicators that can aid the installer in diagnosing faults and conditions. In some cases an indicator may have multiple meanings depending on the status indicator display at the time. Power Indicator The Power indicator is lit when the correct input voltage is applied to the Controller. Note that this indicator may take several seconds to light up after power has been applied.

  • Page 30: Modem Indicator

    Modem Indicator The Modem indicator shows the status of the onboard modem. State Description On (green) Modem has control of telephone line Modem is not active Reader Data Indicators The R1 and R2 indicators display the status of the data being received by the onboard readers. State Description A SHORT flash (<250 milliseconds) will show that data was received but was not in...

  • Page 31: Input Indicators

    Input Indicators Whenever an input on the Controller is programmed with an input type and area, the input status is displayed on the front panel (indicators 1-8) corresponding to the physical input number (Z1-Z8). This allows easy walk test verification of inputs without the need to view the inputs from the keypad or Synergis interface. State Description Input is not programmed...

  • Page 32: Mechanical Diagram

    Mechanical Diagram The mechanical diagram shown below outlines the essential details needed to help ensure the correct installation of the Controller. Inputs 5 to 8 Reader Port Reader Port Inputs 1 to 4 D1/ D0/ D1/ D0/ BZ L1 NB NA V- Z7 Z6 V- Z5 V- V+ BZ L1 NB NA Z4 V- Z3 Z2 V- Z1 V- V+...

  • Page 33: Mechanical Layout

    Mechanical Layout The mechanical layout shown below outlines the essential details needed to help ensure the correct installation of the Controller. 156.8mm Front Back 143.5mm 156.8mm SY-SIX-CTRL-DIN | Synergis IX Web Enabled DIN Rail Controller | Installation Manual Last Updated September 2018...

  • Page 34: Technical Specifications

    The size of conductor used for the supply of power to the unit should be adequate to prevent voltage drop at the terminals of no more than 5% of the rated supply voltage. Genetec continually strives to increase the performance of its products. As a result these specifications may change without notice. We recommend consulting our website (http://www.genetec.com) for the latest documentation and product information.

  • Page 35: Current And Validation Example

    Current and Validation Example The example shown below refers to the specifications needed to help ensure the correct installation of a Synergis Controller. Specifications should be validated to ensure that individual maximum currents and total combined current are not exceeded. Example External Devices Connected to Panel 4 EDGE PIR Motion Detectors (Z1 to Z4) connected on AUX1 Output...

  • Page 36: New Zealand And Australia

    New Zealand and Australia General Product Statement The RCM compliance label indicates that the supplier of the device asserts that it complies with all applicable standards. SY-SIX-CTRL-DIN | Synergis IX Web Enabled DIN Rail Controller | Installation Manual Last Updated September 2018...

  • Page 37: European Standards

    European Standards CE Statement Conforms to European Union (EU) Low Voltage Directive (LVD) 2014/35/EU, Electro-Magnetic Compatibility (EMC) Directive 2014/30/EU and RoHS Recast (RoHS2) Directive: 2011/65/EU. The CE mark indicates that this product complies with the European requirements for safety, health, environmental and customer protection.
  • Page 38 By design, all Genetec Synergis DIN Rail Enclosures comply with the EN50131 standards. Tamper protection against removal of the cover as well as removal from mounting is provided by tamper switch. Warning: Enclosures supplied by third parties may not be EN50131 compliant and should not be claimed as such.

  • Page 39: Fcc Compliance Statements

    FCC Compliance Statements FCC PART 15, WARNINGS: INFORMATION TO USER This equipment complies with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 40 If trouble is experienced with this equipment (Synergis Controller), for repair or warranty information please contact Genetec. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved. This equipment is of a type that is not intended to be repaired by the end user.
  • Page 41 Additional Information Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information. Alarm dialing equipment must be able to seize the telephone line and place a call in an emergency situation. It must be able to do this even if other equipment (telephone, answering system, computer modem, etc.) already has the telephone line in use.

  • Page 42: Industry Canada Statement

    Industry Canada Statement This class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. CAN ICES-3 (A)/NMB-3(A) This product meets the applicable Industry Canada technical specifications. The Ringer Equivalence Number (REN) for this terminal equipment is 0.0.
  • Page 43 © Genetec Inc., 2018. Genetec, Synergis, Synergis IX, the Synergis IX logo and the Genetec Logo are trademarks of Genetec Inc., and may be registered or pending registration in several jurisdictions. Other trademarks used in this document may be trademarks of the manufacturers or vendors of the respective products.
