Summary of Contents for REEL Torino A2X90-VM

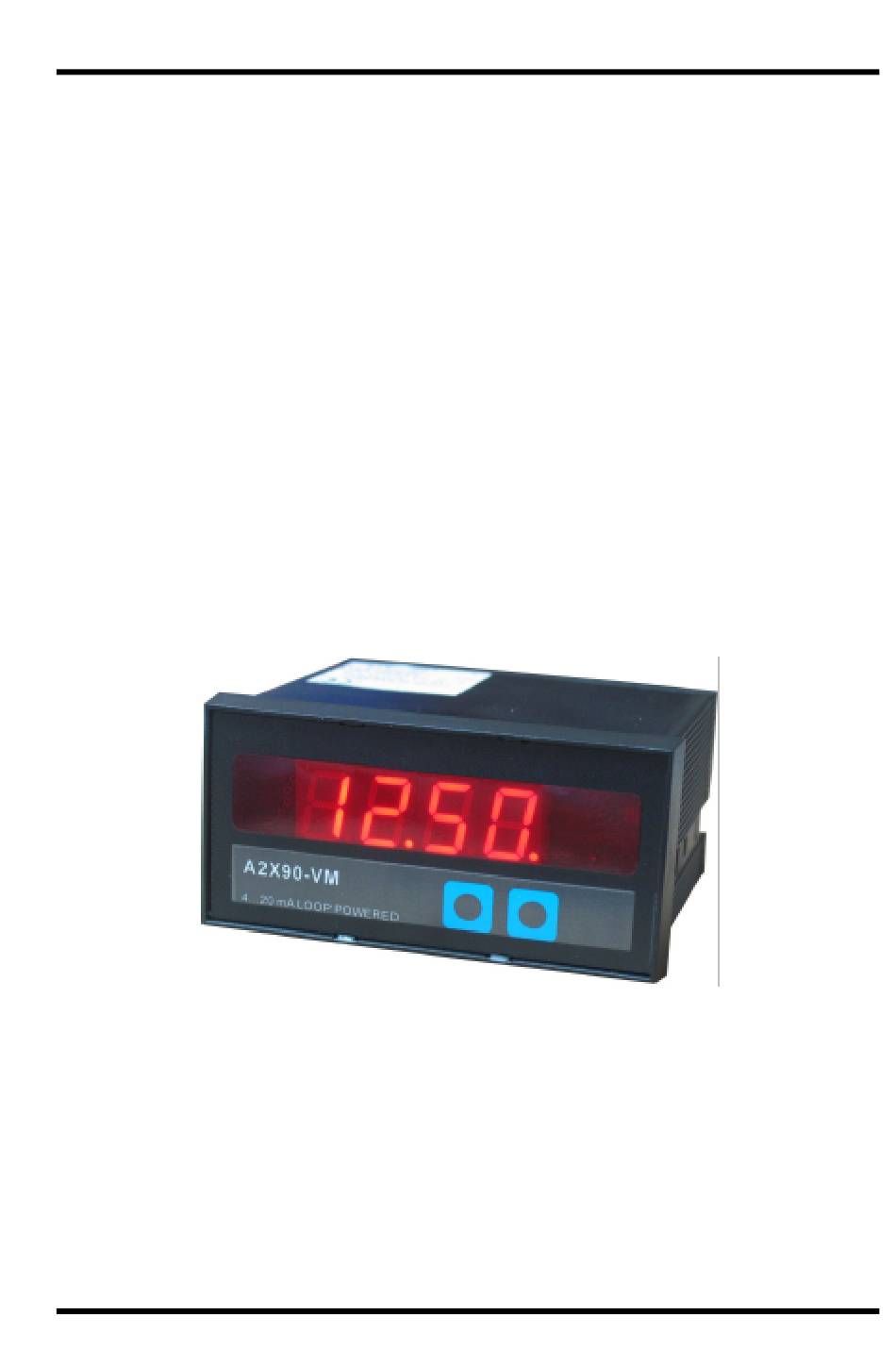

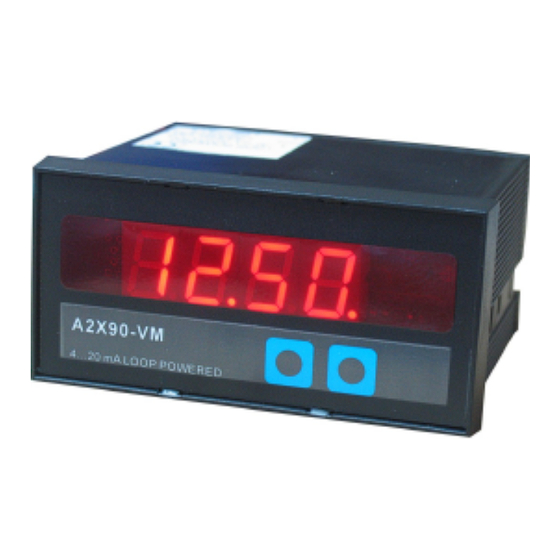

- Page 1 A2X90-VM Operating Instructions 4…20 mA loop powered 96x48 indicator; Model: A2X90-VM FT00536-0.00-0179FV A2X90-VM - page 1/12...
-
Page 2: Table Of Contents
4. Regulation Use ..................3 5. Operating Principle ................4 6. Mechanical Data ……................4 7. Electrical Connection ................5 8. Commissioning ..................7 9. Technical Information................9 10. Order Codes ..................… 11 11. Dimensions ..................10 FT00536-0.00-0179FV A2X90-VM - page 2/12... -
Page 3: Note
12 pole terminal blocks (into the unit) 4. Regulation Use Any use of the 4…20 mA indicator model: A2X90-VM, which exceeds the manufacturer’s specification may invalidate its warranty. Therefore any resulting damage is not the responsibility of the manufacturer. The user assumes all risk for such usage. -
Page 4: Operating Principle
A2X90-VM 5. Operating Principle The model A2X90-VM 96x48 loop powered display is a universal local display suitable for use with various transmitters. The transmitter must be fitted with an analogue output and a terminal blocks. The display i s user programmable. Scaling, the position of the decimal point, gate time and switch point may be set with two keys. -
Page 5: Electrical Connection
Connect the plug-on display as shown in the wiring diagram. Connector assignment PIN 1 Switch out PIN 2 PIN 3 PIN 4 PIN 5 PIN 6 PIN 7 PIN 8 PIN 9 PIN 10 PIN 11 PIN 12 FT00536-0.00-0179FV A2X90-VM - page 5/12... - Page 6 Ub = Us + Ua + 5V (Us = other voltage losses) Switching output The operating voltage Ub at PIN 1 is connected through via a PNP-transistor when reaching the switching threshold. The max. current load constitutes 60 Connection example A2X90-VM FT00536-0.00-0179FV A2X90-VM - page 6/12...
-
Page 7: Commissioning
A+B è Enter menu selection for adjustment or to exit acknowledge setting 8.2 Decimal Point Press key B until: is displayed. Press A+B to enter adjustment menu: Press B or A for up and down: Press A+B to acknowledge setting and return to menu item “dP” FT00536-0.00-0179FV A2X90-VM - page 7/12... - Page 8 Press A+B to enter adjustment menu: message disabled Press B or A for up and down: message enabled Press A+B to acknowledge setting and return to menu item “ISFS” Indication: “HI” = Upper range exceeded, “LO” = Lower range exceeded FT00536-0.00-0179FV A2X90-VM - page 8/12...
-
Page 9: Technical Information
Press A+B to acknowledge setting and return to menu item “ALL” 8.9 Return to Measuring Mode Depending on the selected menu point, press key A or B from one to eight times. 9. Technical Information 9. Technical Information FT00536-0.00-0179FV A2X90-VM - page 9/12... - Page 10 92 x 45 mm Depth: 90 mm (terminal blocks included) Weight: 140 g Switching output Open Collector: PNP, max. current load 90 mA Conformity to EWG guidelines: Directive CEE 2004/108 EN 61000-6-4 EN 61000-6-2 Directive: CEE 2006/95 EN61010-1 FT00536-0.00-0179FV A2X90-VM - page 10/12...
-
Page 11: Order Codes
A2X90-VM 10. Order Code A2X90-VM loop powered 4…20 mA 96x48 indicator 11. Dimensions FT00536-0.00-0179FV A2X90-VM - page 11/12... - Page 12 A2X90-VM Document: FT00536 rev. 0.00 of 18/07/2008 P. Bruno Draft: M. Stillavato Verify: A. Marini Approvals: FT00536-0.00-0179FV A2X90-VM - page 12/12...
